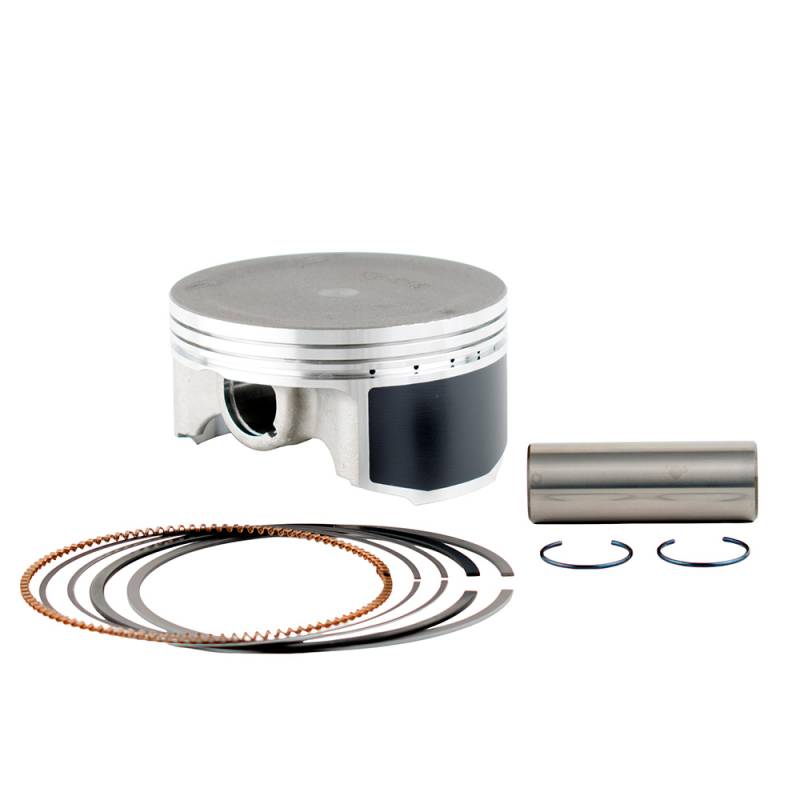

Piston Kit 1.00Mm Over Compatible With 2007-2014 Yamaha Grizzly 700 Fi 4X4 Yfm700f 686Cc 103.00Mm

(0) Reviews: Write first review
50-546-07K-PIO
OEM REFERENCE NUMBERS:
• 1S3-11631-10-00 (Yamaha Standard Piston)
• 1S3-11631-00-00 (Yamaha Standard Piston)
• 2BG-11631-00-00 (Yamaha Standard Piston)
• 5VK-11633-00-00 (Yamaha Wrist Pin)
• 1S3-11603-10-00 (Yamaha Ring Set)
• 1S3-11603-00-00 (Yamaha Ring Set)

SPECIFICATIONS:
• Product Type: Piston Kit
• Bore Size: 1.00mm Over (103.00mm)
• Standard Bore: 102mm
• Bore x Stroke: 102 x 84mm
• Displacement: 686cc
• Engine Type: 4-Stroke SOHC Liquid-Cooled 4-Valve Single Cylinder
• Compression Ratio: 9.2:1
• Fuel System: Electronic Fuel Injection 44mm Throttle Body
• Kit Includes: Piston, Rings, Wrist Pin, Circlips

COMPATIBILITY:
• 2006-2014 Yamaha Raptor 700 YFM700R
• 2007-2014 Yamaha Grizzly 700 FI 4x4 YFM700F
• 2007-2014 Yamaha Grizzly 700 FI EPS YFM700F
• 2008-2013 Yamaha Rhino 700 FI 4x4 YXR700F

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $206.89
Sale: $118.22
Save: 43%
Save: $88.67
Qty:
Free Shipping!

Description

SPORT ATV — RAPTOR 700 (2006-2014):

YAMAHA RAPTOR 700:
• Yamaha Raptor 700 YFM700RV 686cc SOHC 4-Valve Liquid-Cooled EFI (2006)
• Yamaha Raptor 700 YFM700RW 686cc SOHC 4-Valve Liquid-Cooled EFI (2007)
• Yamaha Raptor 700 YFM700RX 686cc SOHC 4-Valve Liquid-Cooled EFI (2008)
• Yamaha Raptor 700R YFM700RSE 686cc SOHC Special Edition (2009-2014)
• Yamaha Raptor 700R YFM700R 686cc SOHC 4-Valve (2009-2014)

UTILITY ATV — GRIZZLY 700 (2007-2014):

YAMAHA GRIZZLY 700:
• Yamaha Grizzly 700 FI 4x4 YFM700FG 686cc SOHC EFI (2007-2008)
• Yamaha Grizzly 700 FI 4x4 Auto YFM700FG 686cc EFI (2009-2014)
• Yamaha Grizzly 700 FI EPS 4x4 YFM700FGP 686cc EFI (2008-2014)
• Yamaha Grizzly 700 Hunter Edition FI 4x4 686cc (2007-2014)
• Yamaha Grizzly 700 Special Edition FI EPS 4x4 686cc (2007-2014)

UTILITY UTV — RHINO 700 (2008-2013):

YAMAHA RHINO 700:
• Yamaha Rhino 700 FI Auto 4x4 YXR700F 686cc SOHC EFI (2008-2013)
• Yamaha Rhino 700 FI Sport Edition 4x4 YXR700F 686cc (2008-2009)
• Yamaha Rhino 700 FI Special Edition 4x4 YXR700F 686cc (2009-2013)

ENGINE DETAILS:
• 686cc 4-Stroke SOHC Liquid-Cooled 4-Valve Single Cylinder
• 102 x 84mm Bore x Stroke
• 9.2:1 Compression Ratio
• Electronic Fuel Injection with 44mm Throttle Body
• TCI (Transistor Controlled Ignition)
• Electric Start with Auto Decompression
• Raptor: 5-Speed Manual Transmission
• Grizzly/Rhino: Ultramatic V-Belt CVT (H/L/R/Park)
• Selectable 2WD/4WD with Differential Lock
• Wet Sump Lubrication

NOTES:
• Same engine platform across Raptor 700, Grizzly 700, and Rhino 700
• Verify OEM part number and bore size before ordering
