OEM PART NUMBERS:
• 3TB-11636-00-00 (Yamaha Piston)
• 34L-11631-02 (Superseded Yamaha Piston)
SPECIFICATIONS:
• Product Type: Piston Kit
• Bore Size: 0.50mm Over (95.50mm)
• Standard Bore: 95mm
• Bore x Stroke: 95 x 84mm
• Displacement: 595cc
• Engine Type: 4-Stroke SOHC Air/Oil-Cooled Single Cylinder
• Compression Ratio: 8.5:1
• Fuel System: Mikuni BST 40mm CV Carburetor
• Piston Height: 57.75mm
• Wrist Pin Diameter: 22mm

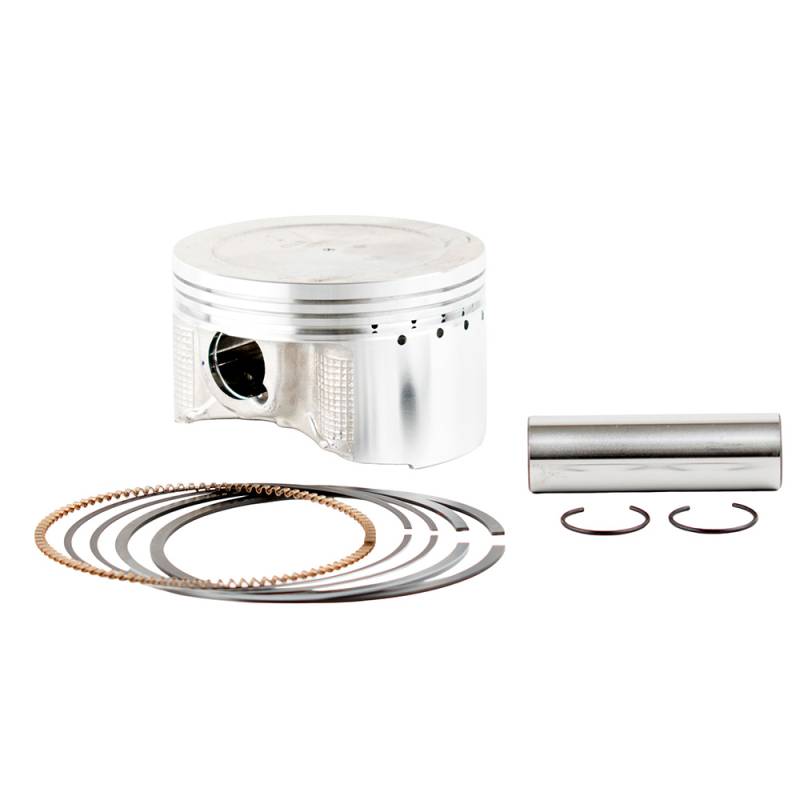

• Kit Includes: Piston, Rings, Wrist Pin, Circlips
COMPATIBILITY:
• 1998-2001 Yamaha Grizzly 600 4x4 YFM600F
• 2001 Yamaha Grizzly 600 Hunter Edition YFM600FHMC
• 1984-1995 Yamaha XT600
• 1990-2004 Yamaha XT600E
• 1984-2004 Yamaha TT600 / TT600R
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
