OEM CROSS-REFERENCE PART NUMBERS:
• 68F-11642-00-85 (standard piston)
• 68F-11642-01-85 (supersedes 68F-11642-00-85)
• 68F-11631-00-85
• 68F-11631-01-85
• 68F-11635-00-00
• 68F-11635-01-00
• 68F-11636-00-00
• 68F-11636-01-00
• 68F-11645-00-00
• 68F-11645-01-00
• 68F-11646-00-00
• 68F-11646-01-00
SPECIFICATIONS:

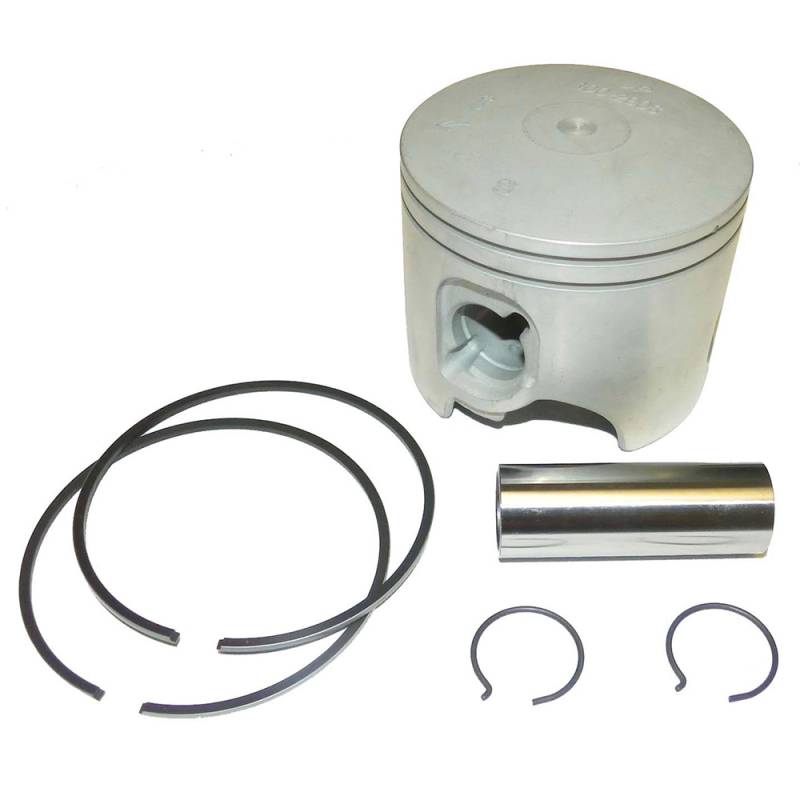

• Type: Piston Kit
• Standard Bore: 3.544"
• Configuration: V6 90-Degree
• Engine Type: 2-Stroke HPDI (High Pressure Direct Injection)
• Displacement: 2.6L (2596cc)
• Horsepower: 150HP, 175HP, 200HP
• Material: Cast Aluminum Alloy
• Kit Quantity: 1 Cylinder (order 6 for complete V6 rebuild)
COMPATIBILITY:
• 2000-2015 Yamaha Z/LZ/VZ 150HP HPDI 2.6L V6
• 2001-2012 Yamaha Z/LZ 175HP HPDI 2.6L V6
• 2000-2012 Yamaha Z/LZ/VZ 200HP HPDI 2.6L V6
• All shaft lengths and control variants
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
