OEM CROSS-REFERENCE PART NUMBERS:
• 688-11631-02-96 (standard reference)
• 6H1-11631-03-95 (standard reference)
• 326764 (wrist pin)
• 326765 (circlip retainers)
SPECIFICATIONS:

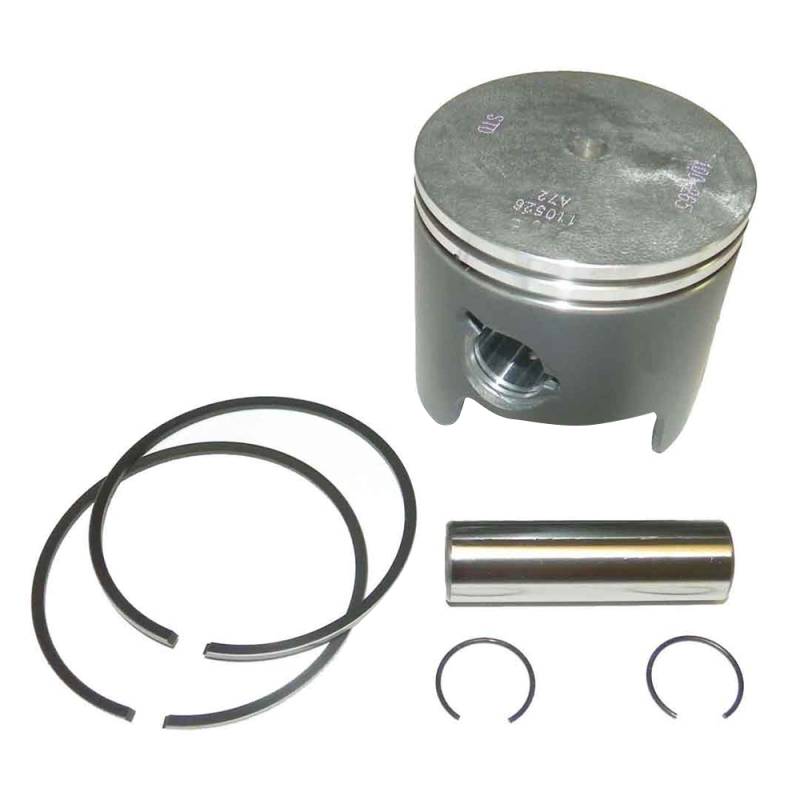

• Type: Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .030 Oversize
• Bore: 3.258" (82.75mm) (.030 oversize over 3.228" standard)
• Engine: V4 2-Stroke Carbureted
• Horsepower: 75HP, 85HP, 90HP
• Piston Type: Symmetrical (fits all cylinders)
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• 1984-2006 Yamaha 75HP V4 2-Stroke
• 1984-2006 Yamaha 85HP V4 2-Stroke
• 1984-2006 Yamaha 90HP V4 2-Stroke
• Symmetrical piston — order 4 kits for complete V4 rebuild
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
