OEM CROSS-REFERENCE PART NUMBERS (PORT SIDE):
• 68F-11642-00-85 (standard reference)
• 68F-11642-01-85 (standard reference)
• 326764 (wrist pin)
• 326765 (circlip retainers)
SPECIFICATIONS:

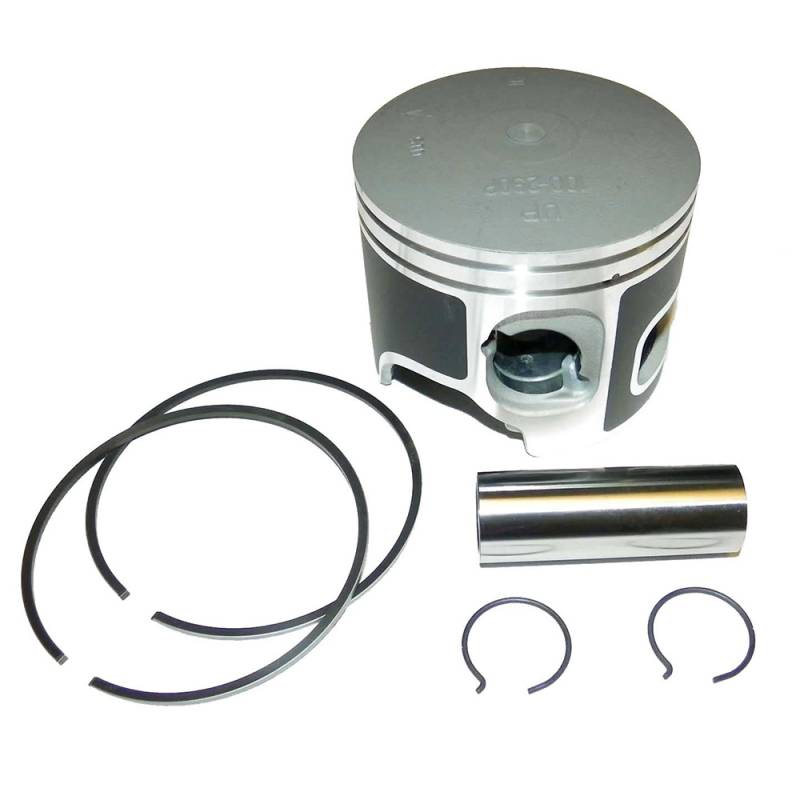

• Type: Port Side Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .030 Oversize
• Bore: 3.574" (90.75mm) (.030 oversize over 3.544" standard)
• Engine: V6 HPDI 2-Stroke Direct Injection
• Displacement: 2.6L (158ci)
• Horsepower: 150HP, 175HP, 200HP
• Side: Port
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder
COMPATIBILITY:
• 2000-2013 Yamaha Z150HP HPDI V6
• 2000-2013 Yamaha Z175HP HPDI V6
• 2000-2013 Yamaha Z200HP HPDI V6
• V6 requires 3 port + 3 starboard pistons for complete rebuild
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
