OEM CROSS-REFERENCE PART NUMBERS:
• 60V-11631-01-85
• 60V-11636-01-00
• 60V-11642-01-85
• 60V-11646-01-00
• 6D0-11631-00-85
• 6D0-11631-02-84
• 6D0-11631-02-85
• 6D0-11636-00-00
• 6D0-11636-01-00
• 6D0-11642-00-85
• 6D0-11642-01-85
SPECIFICATIONS:

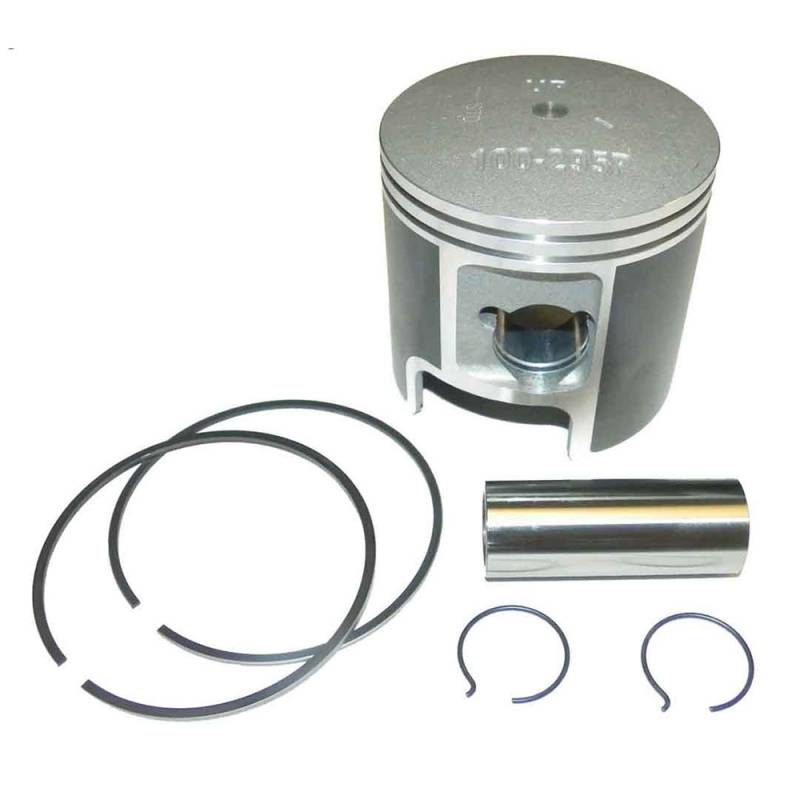

• Type: Starboard Side Piston Kit with Rings, Wrist Pin, and Pin Clips
• Oversize: .040 Over
• Standard Bore: 3.660"
• Finished Bore: 3.700"
• Configuration: V6 76-Degree
• Engine Type: 2-Stroke HPDI (High Pressure Direct Injection)
• Displacement: 3.3L (3352cc)
• Horsepower: 200HP, 225HP, 250HP, 300HP
• Material: Cast Aluminum Alloy
• Kit Quantity: 1 Cylinder (order 3 for starboard bank, 6 for complete V6)
COMPATIBILITY:
• 2006-2012 Yamaha Z/LZ/VZ 200HP HPDI 3.3L V6
• 2003-2015 Yamaha Z/LZ/VZ 225HP HPDI 3.3L V6
• 2003-2015 Yamaha Z/LZ/VZ 250HP HPDI 3.3L V6
• 2004-2009 Yamaha Z/LZ 300HP HPDI 3.3L V6
• All shaft lengths and control variants
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
