OEM CROSS-REFERENCE PART NUMBERS:
• 68F-11631-00-85
• 68F-11631-01-85 (supersedes 68F-11631-00-85)
• 68F-11642-00-85
• 68F-11642-01-85
• 68F-11645-00-00
• 68F-11645-01-00
• 68F-11635-00-00
• 68F-11635-01-00
SPECIFICATIONS:

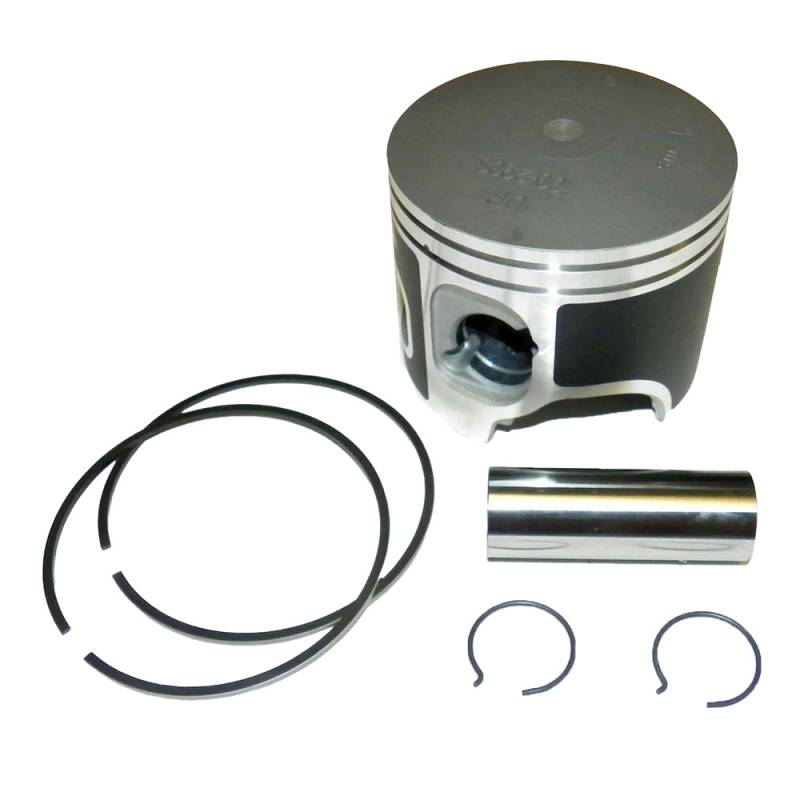

• Type: Starboard Platinum Piston Kit with Riken Rings, Wrist Pin, and Pin Clips
• Standard Bore: 3.544"
• Configuration: V6 90-Degree (Starboard Bank)
• Engine Type: 2-Stroke HPDI (High Pressure Direct Injection)
• Displacement: 2.6L (2596cc)
• Horsepower: 150HP, 175HP, 200HP
• Wrist Pin: 23mm O.D.
• Material: Cast Aluminum Alloy
• Ring Brand: Riken
• Kit Quantity: 1 Cylinder (order 3 for starboard bank, 6 for complete V6)
COMPATIBILITY:
• 2000-2015 Yamaha Z/LZ/VZ 150HP HPDI 2.6L V6
• 2001-2012 Yamaha Z/LZ 175HP HPDI 2.6L V6
• 2000-2012 Yamaha Z/LZ/VZ 200HP HPDI 2.6L V6
• All shaft lengths and control variants
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
