OEM PART NUMBERS:
• Cole Hersee / Littelfuse: 24612-10
• Cole Hersee / Littelfuse: 2461210
• Cole Hersee / Littelfuse: 24612-10-BX (Boxed)
• Cole Hersee / Littelfuse: 2461210-BX (Boxed)
SPECIFICATIONS:

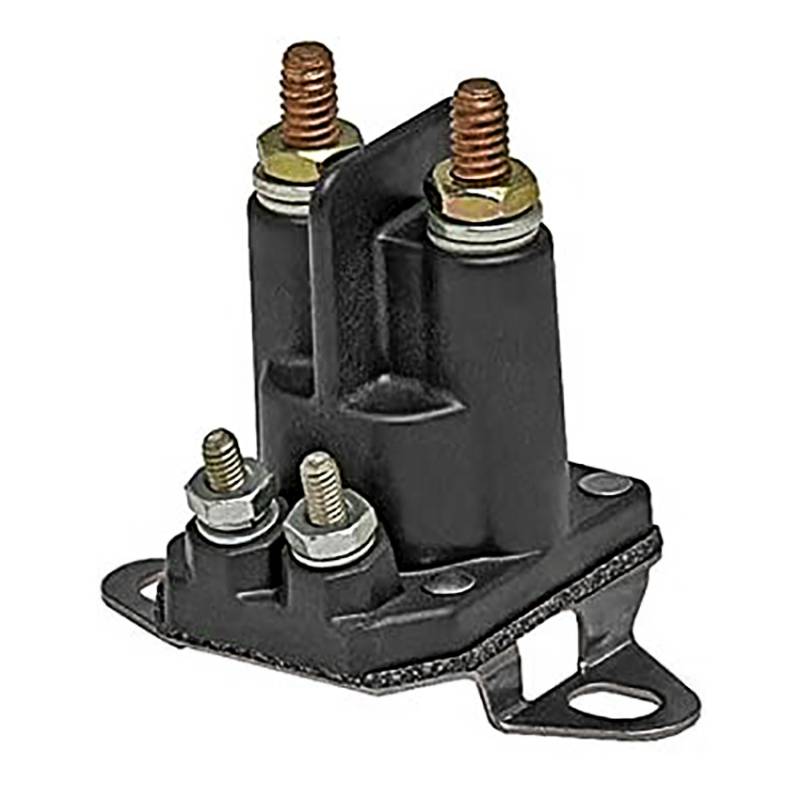

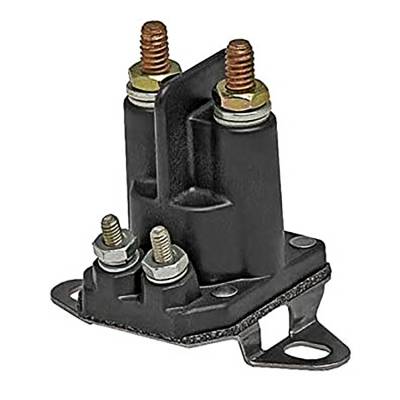

• Type: DC Power Contactor / Starter Solenoid Relay
• Voltage: 12V DC (14V Max Operating)
• Circuit: SPST - Normally Open
• Contact Material: Silver
• Continuous Current: 100A
• Surge/Inrush Current: 400A
• Make/Break Current: 100A
• Terminal Count: 4
• Battery/Motor Studs: (2) 5/16-24 Threaded Copper
• Coil Studs: (2) 10-32 Threaded Steel
• Housing: Plastic (Glass-Filled Nylon)
• Mounting: Flat 180 (F-Style Bracket)
• Cycle Life: 50,000 Minimum
• Includes: Hex Nuts and Lock Washers
FITS UNIVERSAL APPLICATIONS:
• Lawn Tractors, Riding Mowers, Zero Turn Mowers
• Golf Carts (Electric and Gas)
• Floor Sweepers, Material Handling
• Construction, Agricultural Equipment
• Automotive, Marine, Recreational Vehicles
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
