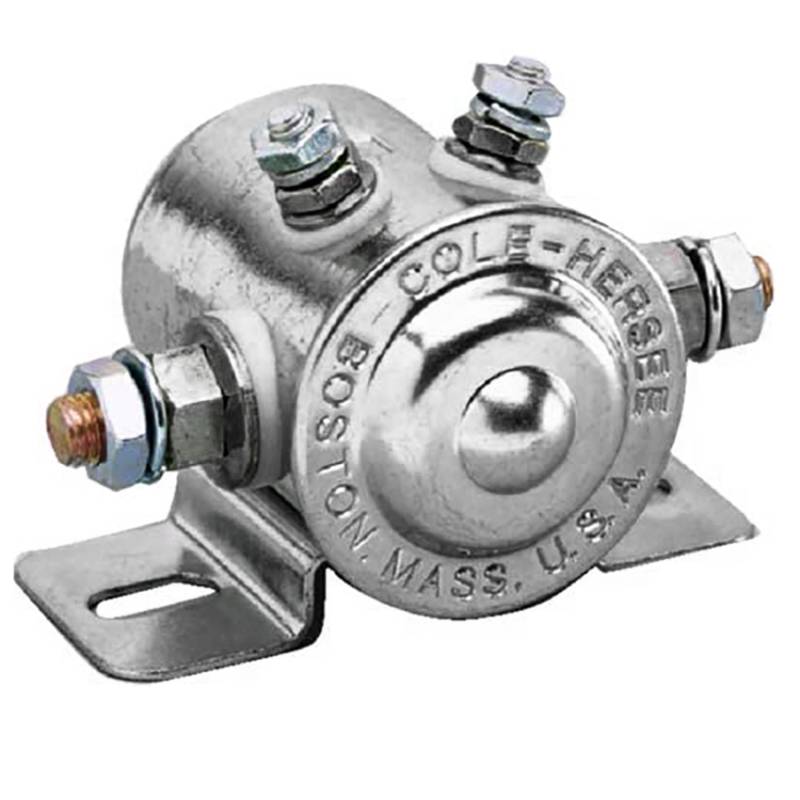

New 24V Continuous Duty Solenoid Compatible With Cole Hersee Delco Prestolite White Rodgers

(0) Reviews: Write first review
24063-BXA2
COLE HERSEE OEM PART NUMBERS (SOURCE):
• Cole Hersee: 24063 (Source Base Model)
• Cole Hersee: 24063-BX (Source Primary)
• Cole Hersee: 24063BX (Source No-Dash Variant)

DELCO OEM PART NUMBER (SOURCE):
• Delco: 1114533

NAVISTAR OEM PART NUMBER (SOURCE):
• Navistar: ZN24063BX
• Navistar: ZN24063-BX (Hyphenated Variant)

POLLAK OEM PART NUMBERS (SOURCE):
• Pollak: 52-324P (Source)
• Pollak: 52324P (Source No-Dash Variant)

PRESTOLITE OEM PART NUMBERS (SOURCE):
• Prestolite: 15-141 / 15141 (Source)
• Prestolite: 15-196 / 15196 (Source)
• Prestolite: 15-310 / 15310 (Source)

WHITE RODGERS OEM PART NUMBER (SOURCE):
• White Rodgers: 70-903 / 70903 (Source)

ADDITIONAL OEM CROSS-REFERENCES (RESEARCH):
• General Motors: 6960296
• John Deere: AT57170
• Johnson Electric: 5118140
• Monarch/Bucher: 3341
• Prestolite: SAS4401
• Aftermarket: 10-CD204
• Item Reference: 24063-BX

SPECIFICATIONS:
• Product Type: Solenoid (Continuous Duty SPST)
• Unit Type: Cole Hersee OEM Design
• Voltage: 24V DC (6-36 VDC Range)
• Circuitry: SPST / Normally Open
• Continuous Amps: 85 A
• Intermittent Rating: 120 A Make / 65 A Break (10 sec On / 30 min Off)
• Duty Cycle: CONTINUOUS
• Number of Terminals: 4
• Contact Material: Copper
• Case Material: METAL (Plated Steel - Bare Metal, NO PVC Coating)
• Mounting Style: Flat 180 (F180) Flat Bracket
• Stud Size: (2) 5/16"-24 Copper Power Studs
• Terminal Size: (2) #10-32 Steel Coil Studs
• Hardware: Hex Nuts and Lock Washers Included
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Mexico (MX)
• Source: OEM Cole Hersee Design
• Recommended Use: OE Replacement for Cole Hersee 24V Continuous Duty Metal Housing
• Product Fit: Direct Fit for 24V Heavy-Duty Continuous-Duty Applications

EQUIPMENT APPLICATIONS SUMMARY:
• Navistar International Heavy-Duty Commercial Trucks
• Heavy-Duty Commercial Trucks / Tractor Trailers 24V
• Commercial Transit / School / Coach Buses
• Marine Vessels / Commercial Boats / Yachts
• John Deere Tractor Applications (AT57170)
• General Motors Industrial Equipment (6960296)
• Heavy Construction Equipment 24V
• Agricultural Equipment 24V Electrical Systems
• Industrial Continuous-Duty Switching
• 24V DC Heavy-Duty Electrical Systems (NOT 12V)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $56.12
Sale: $32.07
Save: 43%
Save: $24.05
Qty:
Free Shipping!

Description

PRIMARY APPLICATION DESCRIPTION:
• This item fits various applications by part number
• Please check your part number to ensure fitment

EQUIPMENT APPLICATIONS (RESEARCH-CONFIRMED):
• Navistar Navistar International Heavy-Duty Commercial Trucks (ZN24063BX)
• Heavy-Duty Trucks Heavy-Duty Commercial Trucks 24V Systems
• Buses Commercial Transit Buses / School Buses / Coach Buses
• Marine Marine Vessels / Commercial Boats / Yachts (Boating Applications)
• John Deere John Deere Tractors (AT57170 Reference Application)
• GM General Motors Industrial Equipment (6960296 Reference)
• Construction Heavy Construction Equipment 24V
• Agricultural Heavy-Duty Agricultural Equipment
• Industrial Industrial Continuous-Duty Switching Applications
• Commercial Commercial Vehicle Power Distribution
• Off-Highway Off-Highway Heavy Equipment 24V
• Emergency Emergency Equipment (Fire Trucks / Ambulances)

FUNCTIONAL USES:
• Continuous Power Switching (Sustained Load Applications)
• Battery Disconnect / Master Switch
• Auxiliary Equipment Continuous Power Control
• Winch Solenoid (24V Heavy-Duty Winches, Continuous Load)
• Refrigeration Compressor Control (24V Systems)
• Lighting Circuit Control (Heavy-Duty 24V)
• Hydraulic Pump Motor Control
• HVAC Blower Motor Control (24V Bus Systems)
• Emergency Equipment Power Switching
• Boat Winch / Electric Motor Controls

SOLENOID OPERATIONAL CHARACTERISTICS:
• Circuitry: SPST (Single Pole, Single Throw)
• Normal Position: Normally Open (NO)
• Operation: Energized to Close Contacts
• De-energized: Contacts Open (Circuit Disconnected)
• Duty Cycle: CONTINUOUS (for sustained power switching)
• Voltage Range: 6-36 VDC (24V Nominal)
• Insulated Coil: Studs Electrically Isolated from Housing
• Housing: Plated Steel (Bare Metal - NO PVC Coating)
• Mounting: Flat 180 (F180) Flat Bracket Style
• Contact Force: High for Reliable Current Handling

SOLENOID SPECIFICATIONS:
• Product Type: Solenoid (Continuous Duty SPST - Metal Housing)
• Unit Type: Cole Hersee OEM Design
• Voltage: 24V DC (6-36 VDC Range)
• Circuitry: SPST / Normally Open
• Continuous Amps: 85 A
• Intermittent Rating: 120 A Make / 65 A Break
• Duty Cycle: CONTINUOUS
• Number of Terminals: 4
• Contact Material: Copper
• Case Material: METAL (Plated Steel)
• Mounting Style: Flat 180 (F180)
• Stud Size: (2) 5/16"-24 Copper Power Studs for Battery & Motor
• Terminal Size: (2) #10-32 Steel Coil Studs for Activation & Ground
• Hardware: Hex Nuts and Lock Washers Included
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Mexico (MX) / US
