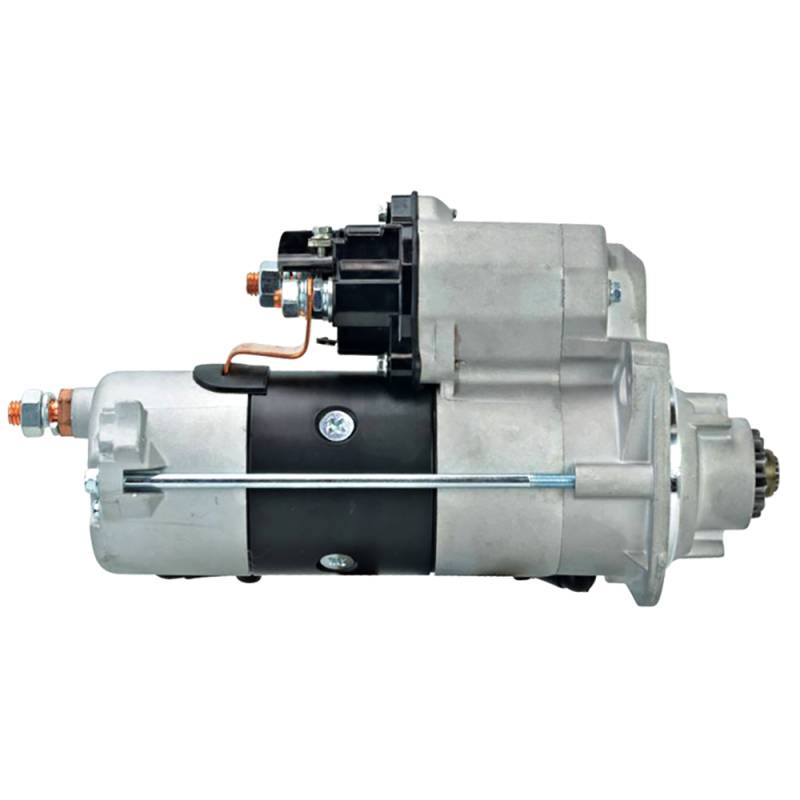

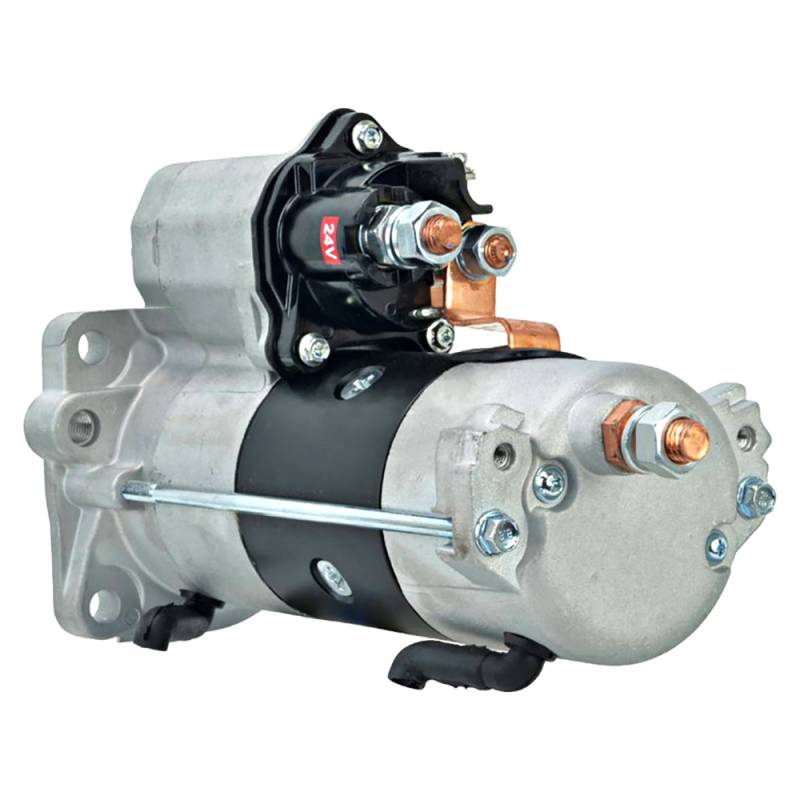

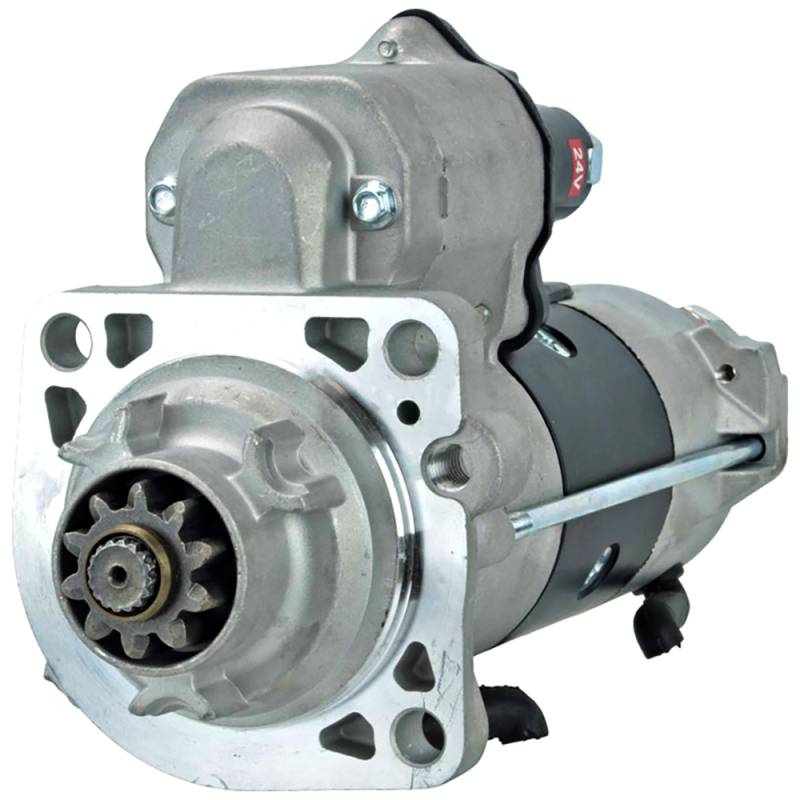

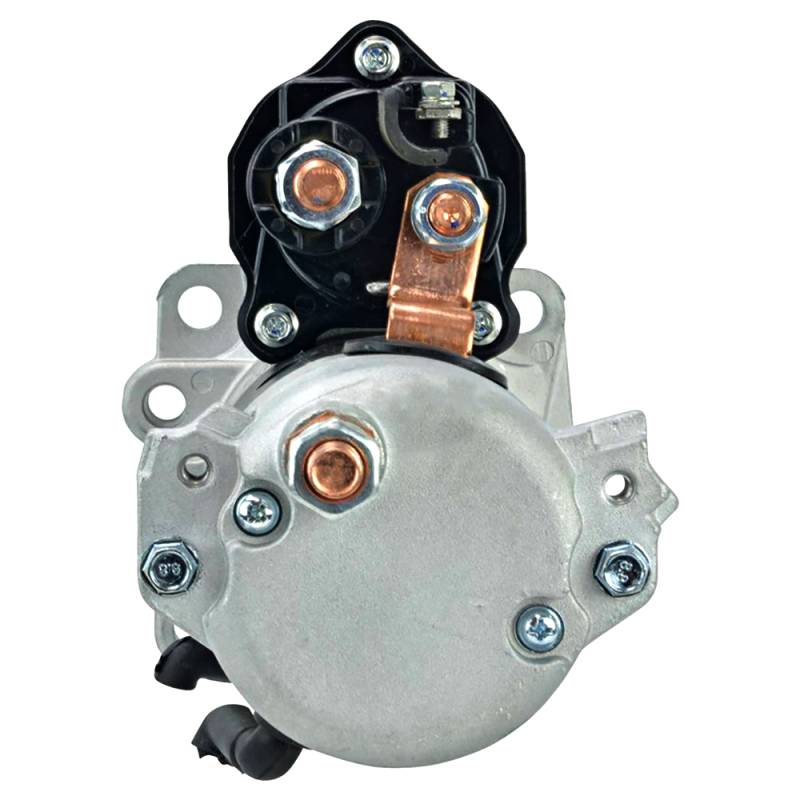

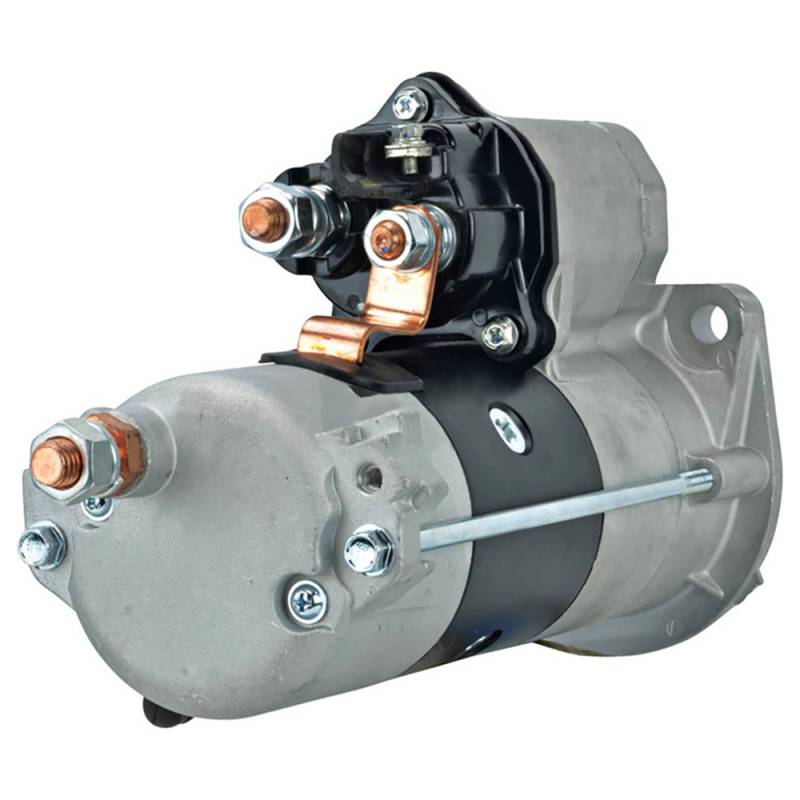

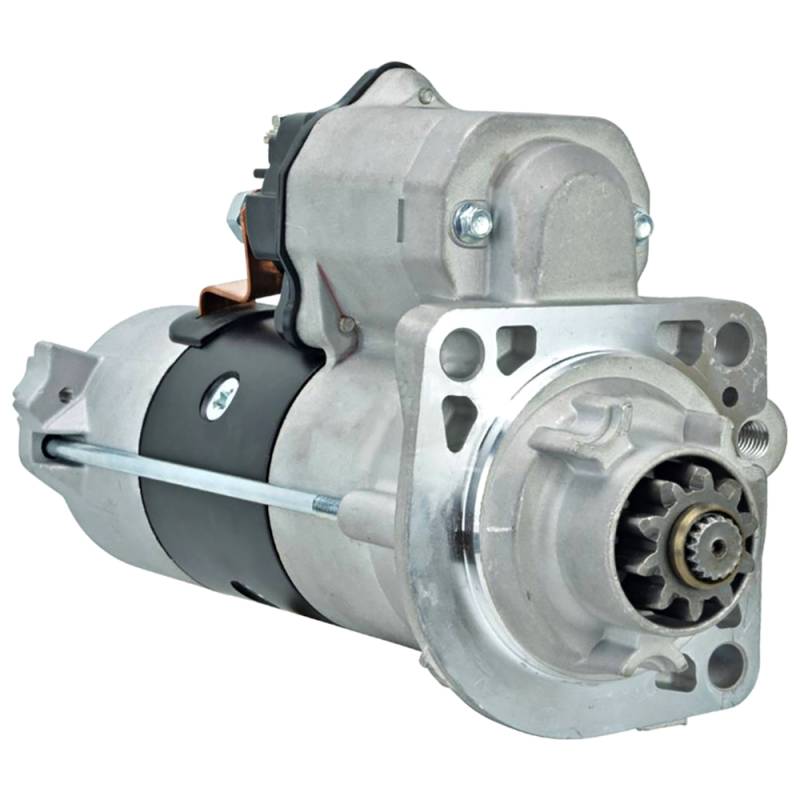

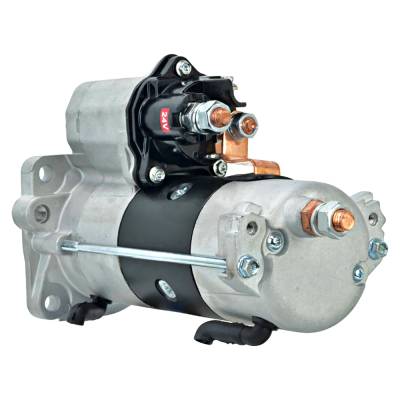

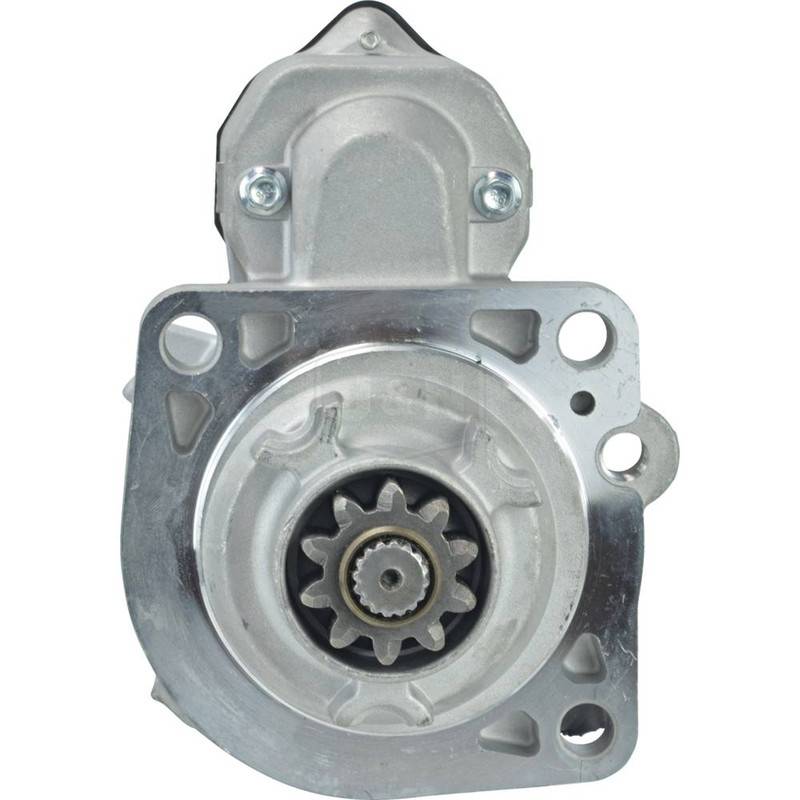

Starter Compatible With Caterpillar 324D 324D-L 326D 328D-Lcr 329D 329D-L Excavator 24V 7.8Kw Pa90l

⚠️ 24 VOLT 7.8 KW 10 TOOTH CW DENSO PA90L STARTER:
• 24V, 7.8 kW (10.46 HP), clockwise, planetary gear reduction, 10 tooth pinion, 39.7 mm gear OD
• Three ears, 12.2 mm unthreaded holes, ear centers 90.1 mm and 126.7 mm
• 89 mm registry, 285.5 mm overall length, M12-1.75 battery stud
• Fits the Cat C7 ACERT 7.2L; the C7.1 and C4.4 engines take different starters

CATERPILLAR 324D EXCAVATORS:
• Caterpillar 324D with the C7 ACERT 7.2L 2007-2011 (serial prefix CJX, DFP)
• Caterpillar 324D L with the C7 ACERT 7.2L 2007-2011 (serial prefix CJX, DFP, SYM)

CATERPILLAR 326D AND 328D EXCAVATORS:
• Caterpillar 326D with the C7 ACERT 7.2L
• Caterpillar 328D LCR with the C7 ACERT 7.2L

CATERPILLAR 329D EXCAVATORS:
• Caterpillar 329D with the C7 ACERT 7.2L from 2009
• Caterpillar 329D L with the C7 ACERT 7.2L from 2009

CATERPILLAR MATERIAL HANDLERS:
• Caterpillar M325D MH wheel material handler with the C7 ACERT 7.2L
• Caterpillar M325D LMH wheel material handler with the C7 ACERT 7.2L

ENGINE APPLICATIONS:
• Caterpillar C7 ACERT 7.2L six cylinder diesel, 24 volt (engine serial prefix KHX on the 324D)
