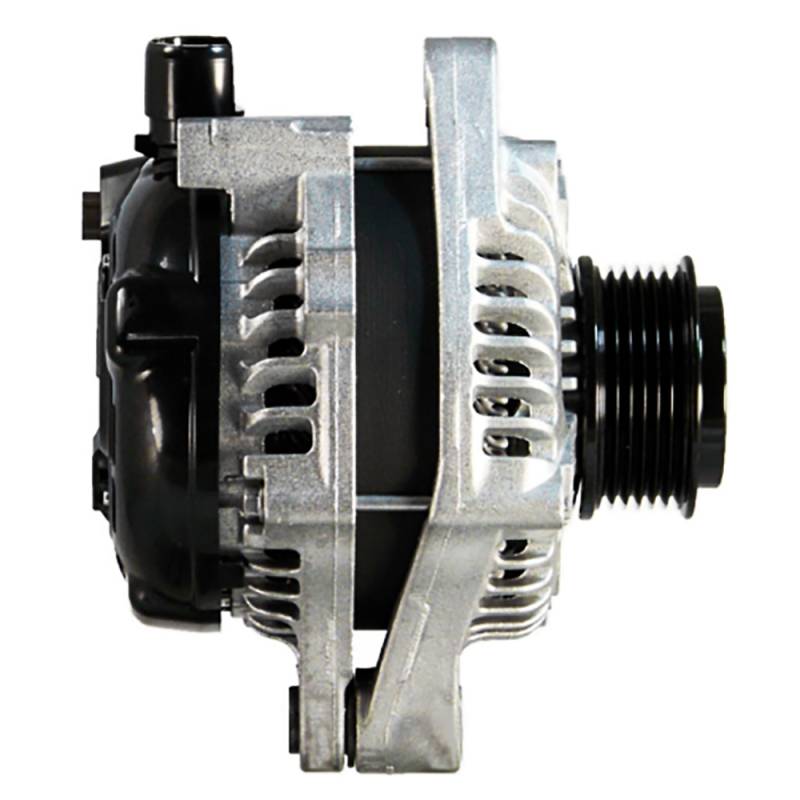

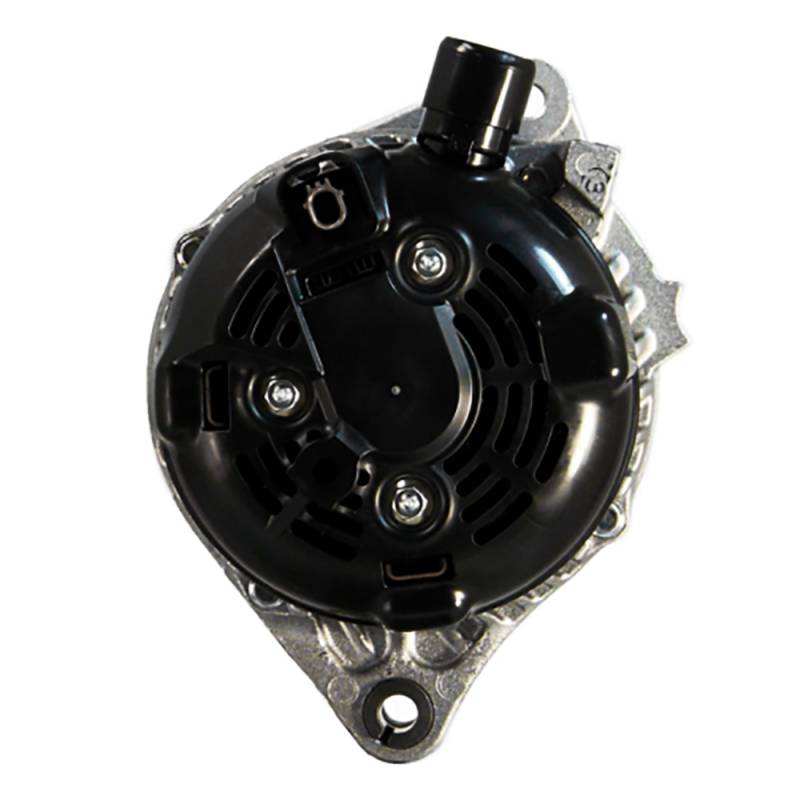

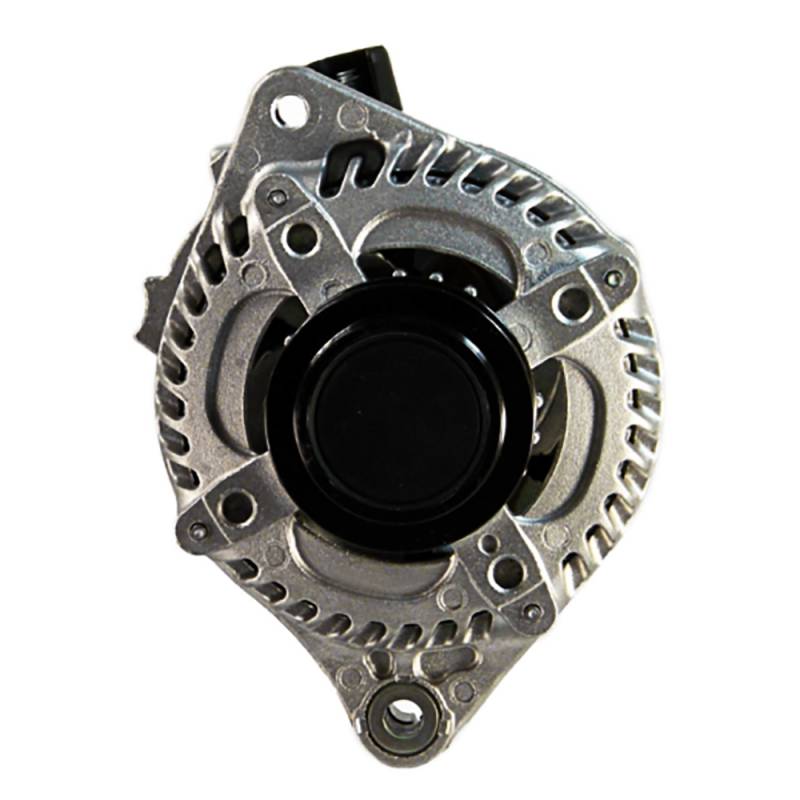

New 12V 155 Amp Alternator Compatible With Honda Pilot 2016-2020 By Part Number 1042118510

DENSO: 104211-8510 1042118510
HONDA: 06311-5J6-505RM 063115J6505RM 31100-5J6-A01 311005J6A01 31100-5J6-A01RM 311005J6A01RM 31100-5J6-A51 311005J6A51 CSK51

ITEM DESCRIPTION: ALTERNATOR
UNIT TYPE: ACURA, DENSO
MANUFACTURER SERIES: HAIRPIN
FAN: INTERNAL
REGULATOR: INTERNAL
VOLTS: 12
AMPERAGE: 155
ROTATION: CLOCKWISE
GROOVES: 6
MOUNT TYPE: SPOOL
MOUNTING EAR 1 HOLE: 8.8MM UNTHREADED
MOUNTING EAR 2 HOLE: 10.3MM UNTHREADED
MOUNTING EAR 1 THICKNESS: 0.748IN / 19MM
MOUNTING EAR 2 THICKNESS: 1.831IN / 46.5MM
REGULATOR CLOCK: 11:00
B+ TERMINAL: M8X1.25
LIN TERMINAL: SPADE
POLARITY: NEGATIVE
SERPENTINE GROOVES OD: 2.571IN / 65.3MM
PULLEY TYPE: DECOUPLER
PULLEY OD: 2.776IN / 70.5MM
WEIGHT: 14.16 LBS / 6.44 KG
