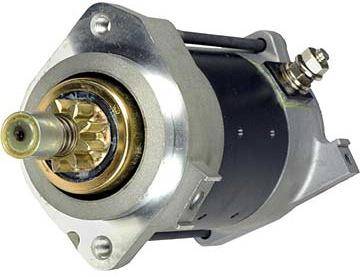

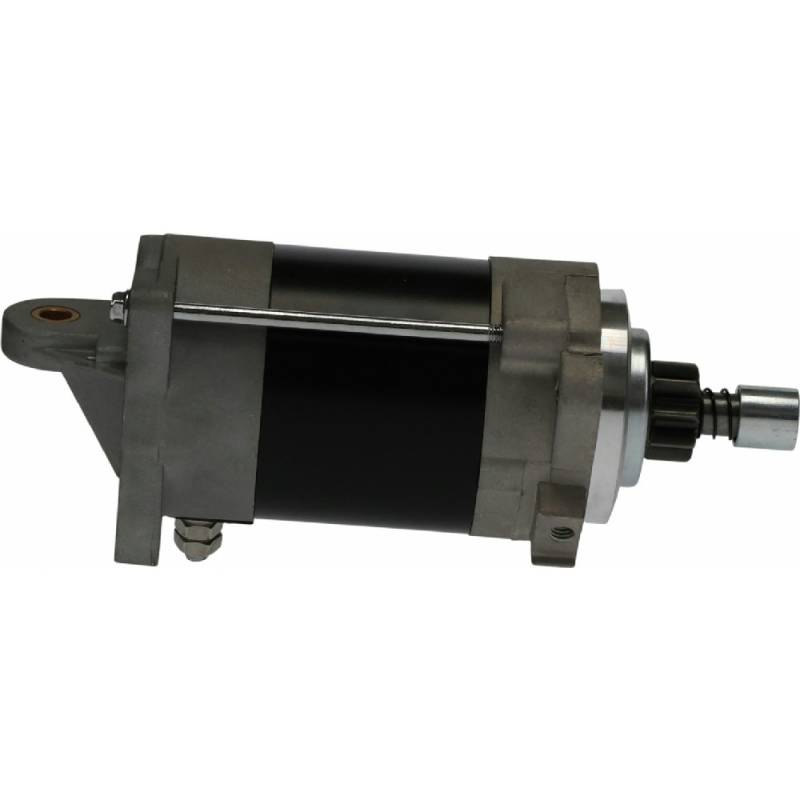

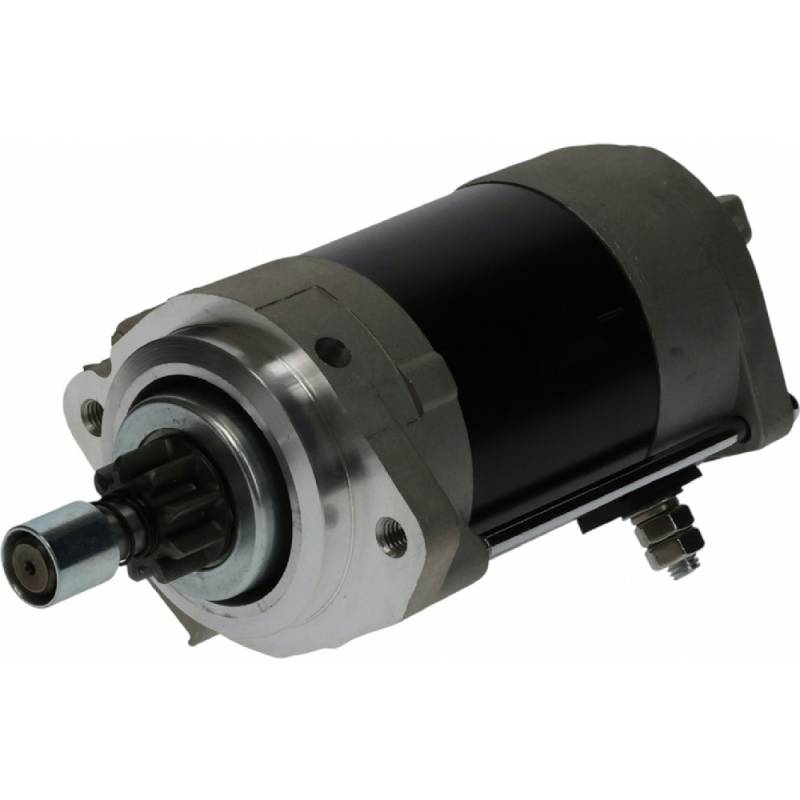

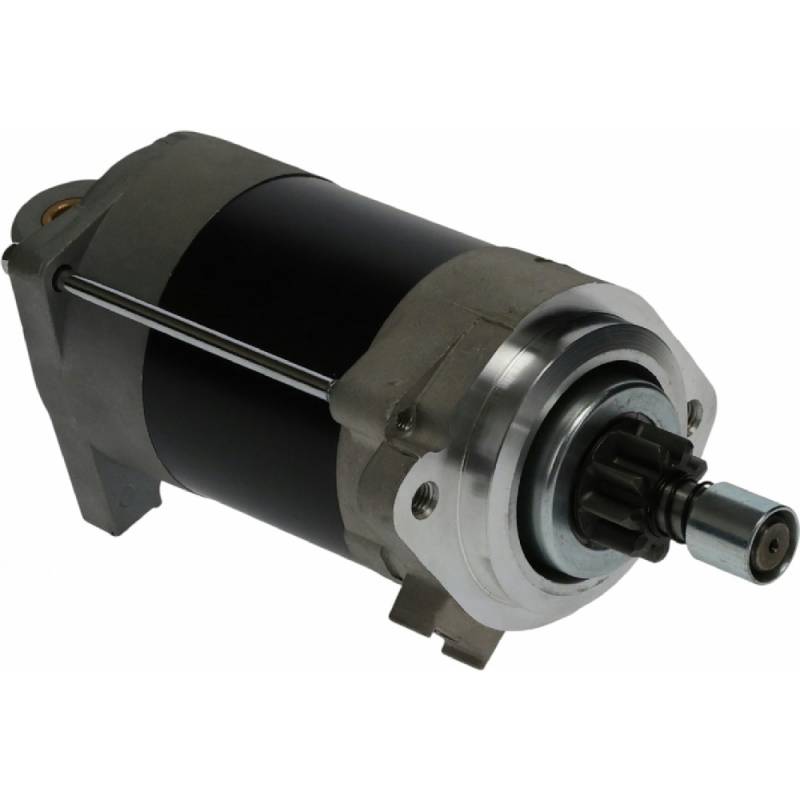

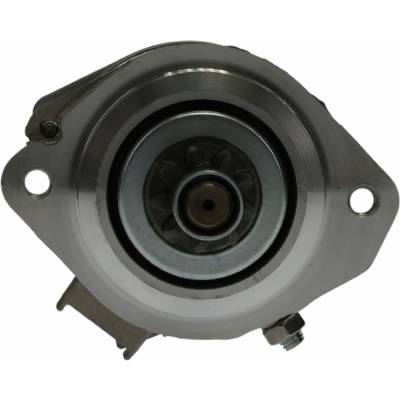

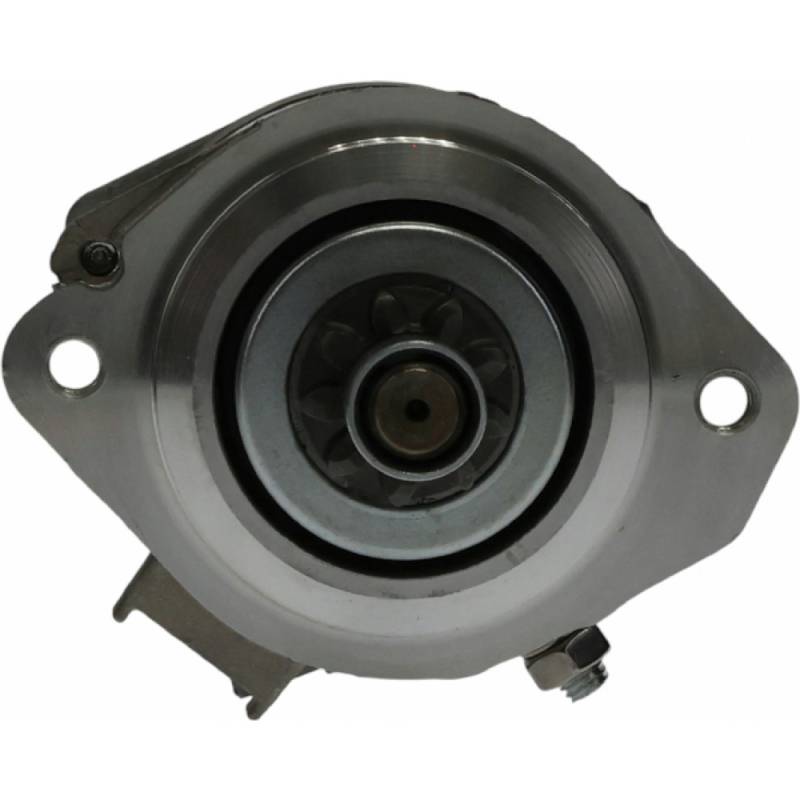

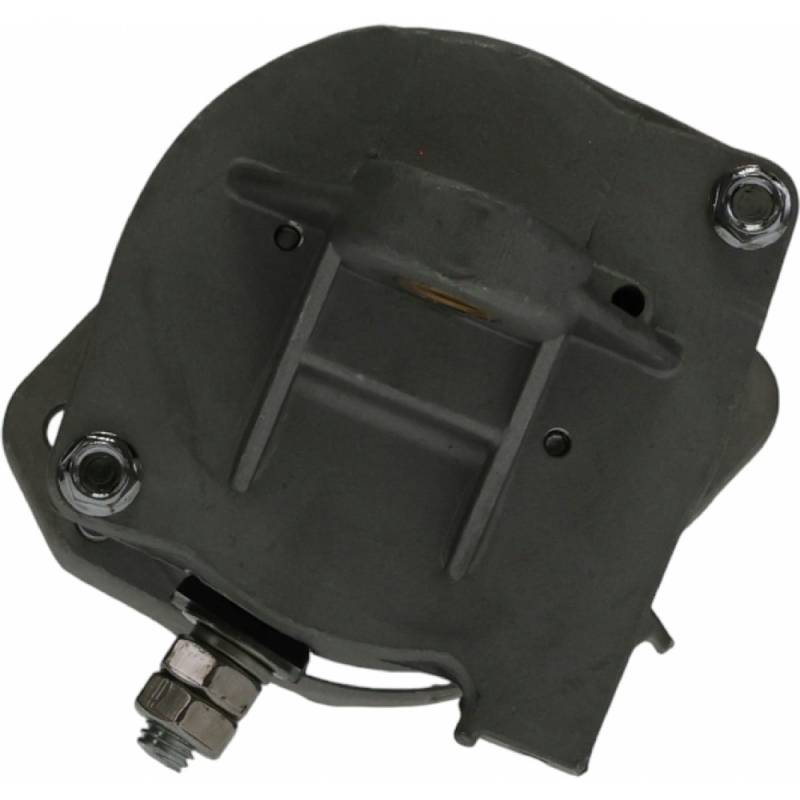

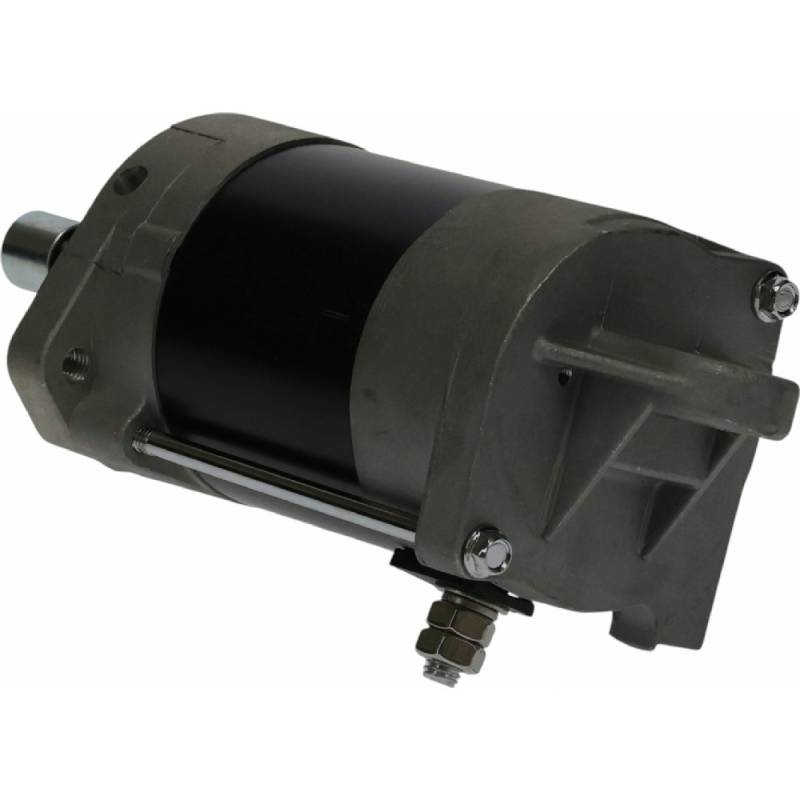

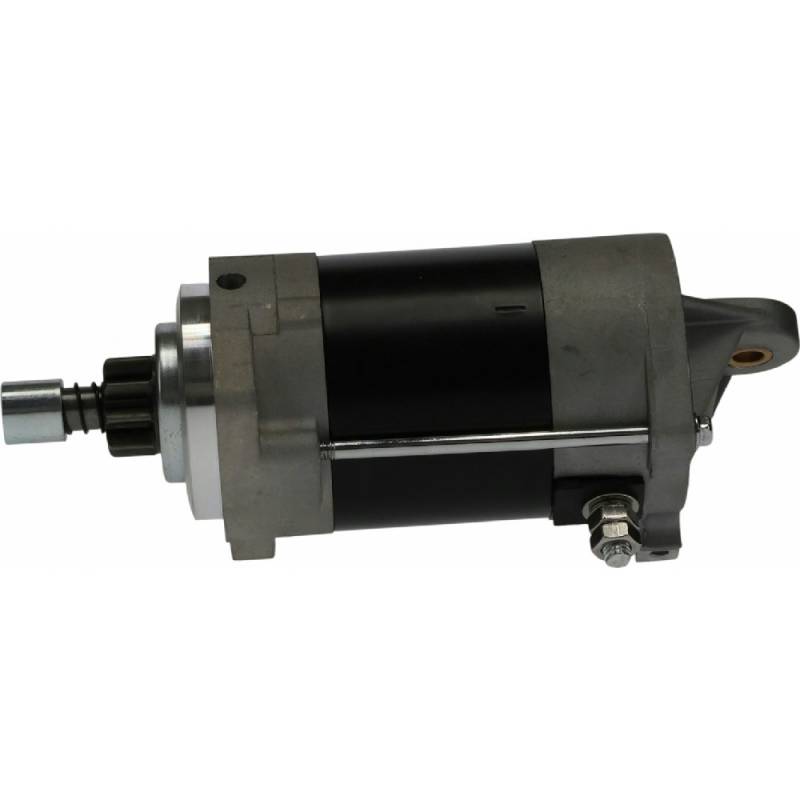

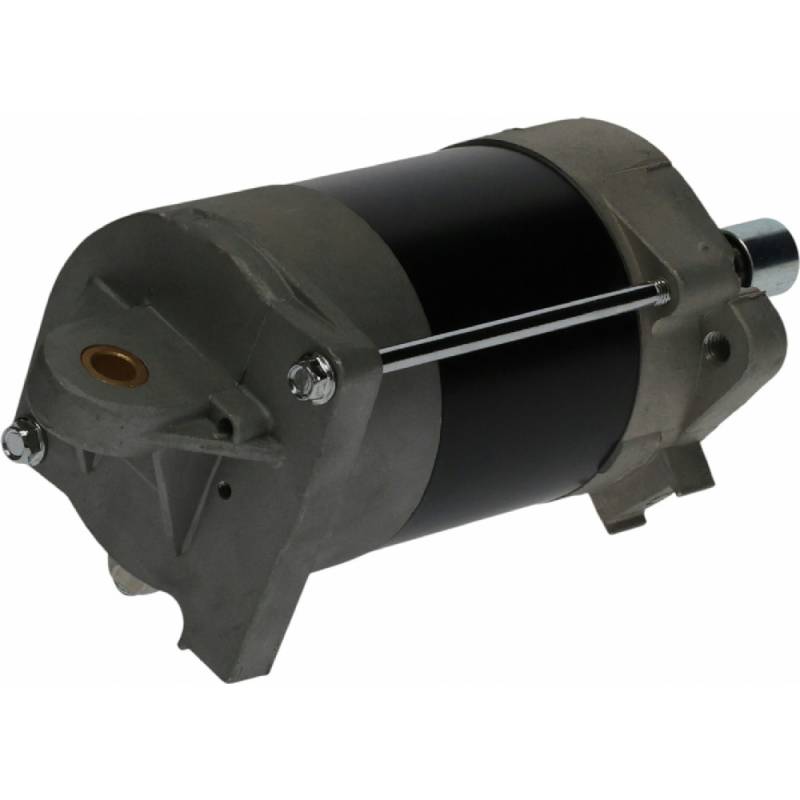

12V Pmdd Starter Motor Compatible With Yamaha Outboard 115Tlr 115Txr 130Tlr 130Txr 115Hp 130Hp

OEM PART NUMBERS:
• Yamaha: 6N7-81800-10-00 / 6N78180010
• Yamaha: 6N7-81800-01-00 / 6N78180001
• Yamaha: 6N7-81800-00-00 / 6N78180000
• Yamaha: 6K7-81800-10-00 / 6K78180010
• Yamaha: 61H-81800-00-00 / 61H818000000
• Yamaha: 69W-81800-00-00 / 69W818000000
• Yamaha: 6N7-WS818-01-00 / 99999-03938
• Hitachi: S114-552 / S114552 / S114-552A / S114552A
• Hitachi: S114-660 / S114660 / S114-660A / S114660A / S114-660B / S114660B



AFTERMARKET CROSS REFERENCE:
• Arco Marine: 3428
• Sierra: 18-6415
SPECIFICATIONS:
• Type: PMDD (Hitachi)
• Voltage: 12V
• Power: 1.4 kW
• Rotation: CCW (Counter-Clockwise)
• Tooth Count: 9
• Gear OD: 28.6mm / 1.126"
• Mounting: Dual M8-1.25 Threaded Holes
• Weight: 7.19 lbs / 3.27 kg
• Condition: New

YAMAHA OUTBOARD APPLICATIONS (1997-2008):
• 115HP: 115TJR/TLR/TR/TXR, B115TLR, C115TLR/TR/TXR, S115TLR/TXR (1997-2008)
• 130HP: 130TLR/TR/TXR, L130TXR/TR, S130TLR/TRX (1997-2004)
• 150HP: 150TJR/TLR/TR/TXR, C150/D150/DX150/L150/LX150/P150/PX150/S150/SX150/V150/VX150 (1997-2008)
• 175HP: 175TLR/TR, P175TLR, S175TXR (1997-2000)
• 200HP: 200TLR, L200TXR, LX200TXR, P200TLR, S200TXR, SX200TLR/TXR (1997-2004)
• 225HP: 225TLR (1997)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
