OEM PART NUMBERS:
• Warner / Xtreme: 5215-61 / 521561
• Ariens / Gravely: 44631 / 49154 / 49154AR / 52632
• Ariens / Gravely: 92453 / 4915400 / 9010400 / 21270100
• Ariens / Gravely: 59003000
SPECIFICATIONS:
• Type: Electric / Electromagnetic PTO Clutch
• Unit Type: Xtreme
• Crankshaft Diameter: 1 Inch
• Pulley Outside Diameter: 6.03 Inch
• Rotation: CCW (Counterclockwise)
• Torque: 105 Ft-Lbs
• Belt Width: 1/2 Inch or 5/8 Inch
• Voltage: 12V DC
• Engagement: Electromagnetic
• Bearings: Sealed
• Pigtail: Included
• Weight: 11.1 lbs
• Condition: New
FITS THE FOLLOWING APPLICATIONS:
• Ariens GR Series Walk-Behinds
• Ariens HR Series Walk-Behinds (HR15, HR1536, HR1544, HR1748, HR15P, HP19P)
• Ariens Zoom Series (1640, 1844, 1944, 2048, 2252, 2352)
• Ariens PM34Z
• Gravely GR Series Walk-Behinds
• Gravely HR Series Walk-Behinds
• Gravely Pro Master (144Z, 34Z, 44Z)
• Gravely Pro Series Walk-Behinds
• Gravely ZT Series (1640, 1844, 1944, 2048, 2252, 2352)
• Fits By Part Number - Verify OEM Number On Your Original Clutch

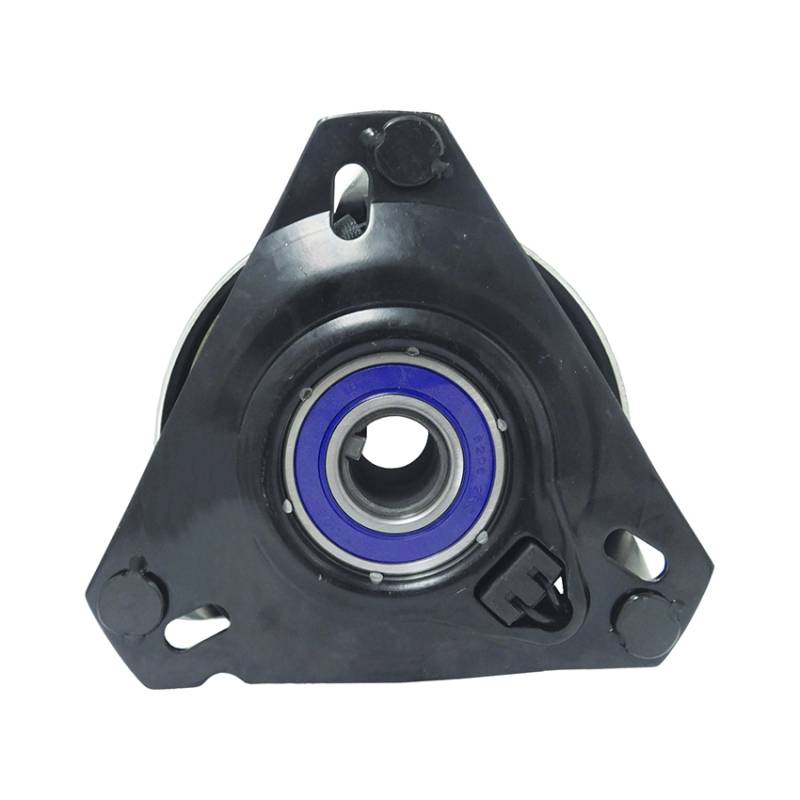

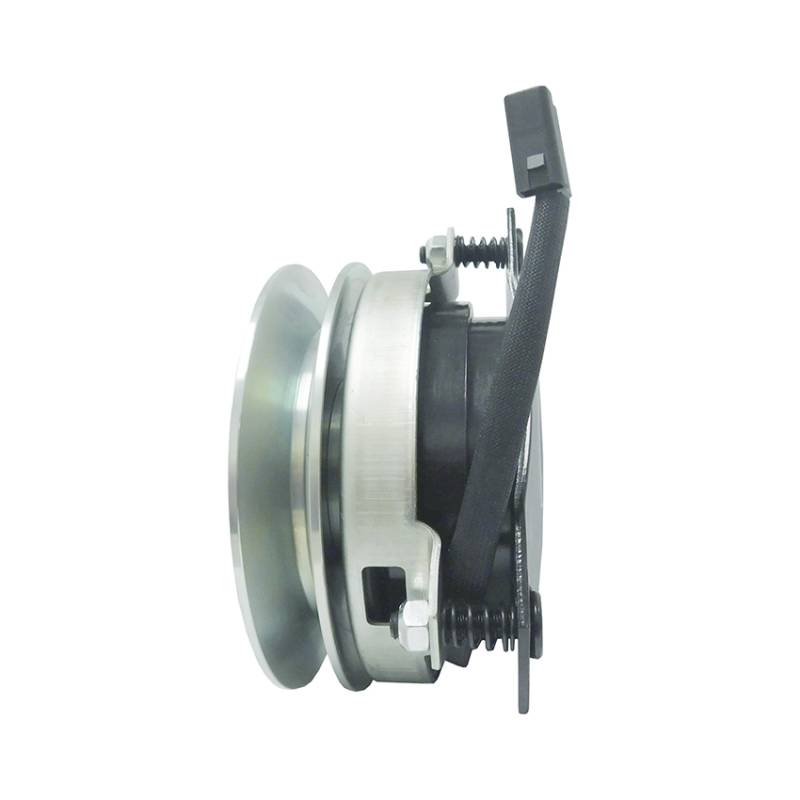

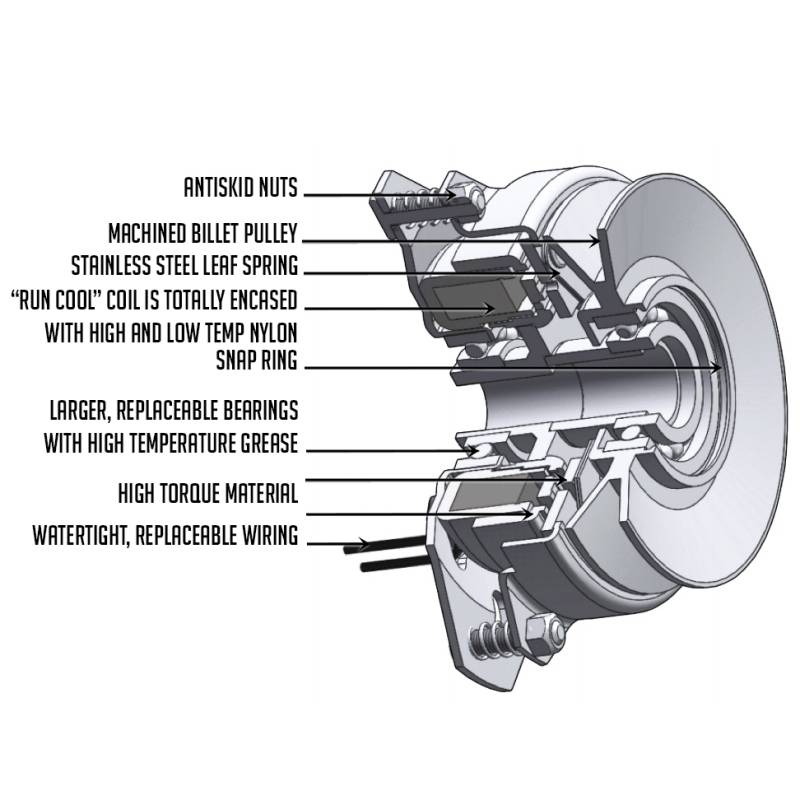

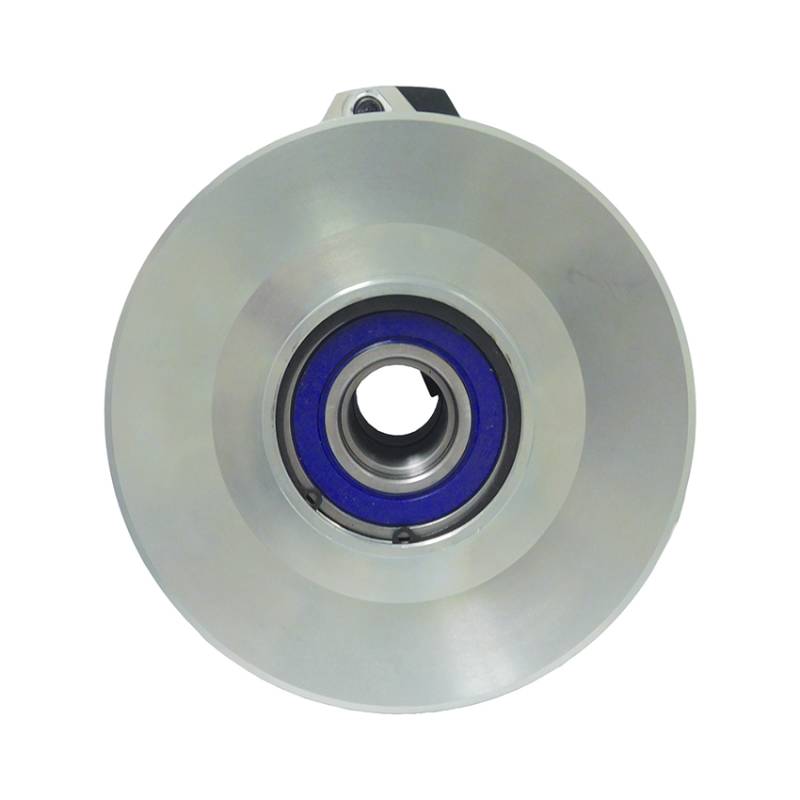

Premium Xtreme electric PTO clutch engineered as a direct replacement for Warner 5215-61. Compatible with Ariens 32 inch and 36 inch GR and HR Walk-Behind mowers, Ariens Zoom series tractor models, Gravely Pro Master and Pro Series walk-behinds, Gravely GR and HR series, and Gravely ZT zero-turn models. Features sealed bearings, precision rotor and armature, and pre-installed wiring pigtail. Delivers 105 ft-lbs of torque at 12V DC. Tested to meet or exceed OEM standards.
Please verify fitment before purchase. Equipment configurations may vary by serial number and production year. Always check the OEM part number on your original clutch.PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
