OEM PART NUMBERS:
• Hustler/Excel: 601784 / 601784K
• Big Dog: 601784 / 601784K
• Warner: 5219-107 / 5219107
SPECIFICATIONS:
• Type: Electric PTO Clutch/Brake (MagStop)
• Crankshaft Diameter: 1"
• Pulley Outside Diameter: 6"
• Height: 4"
• Rotation: CCW (Counterclockwise)
• Torque: 125 ft-lbs
• Belt Width: 1/2" or 5/8"
• Pigtail: Included
• Weight: 12 lbs
• Condition: New
APPLICATION:
• Big Dog Mowers A-Series, C-Series, R-Series, T-Series
• Hustler/Excel FasTrak 48"/54"/60"
• Hustler/Excel Sport 42"/48"/54"
• Hustler/Excel TrimStar 36"/48"/54"

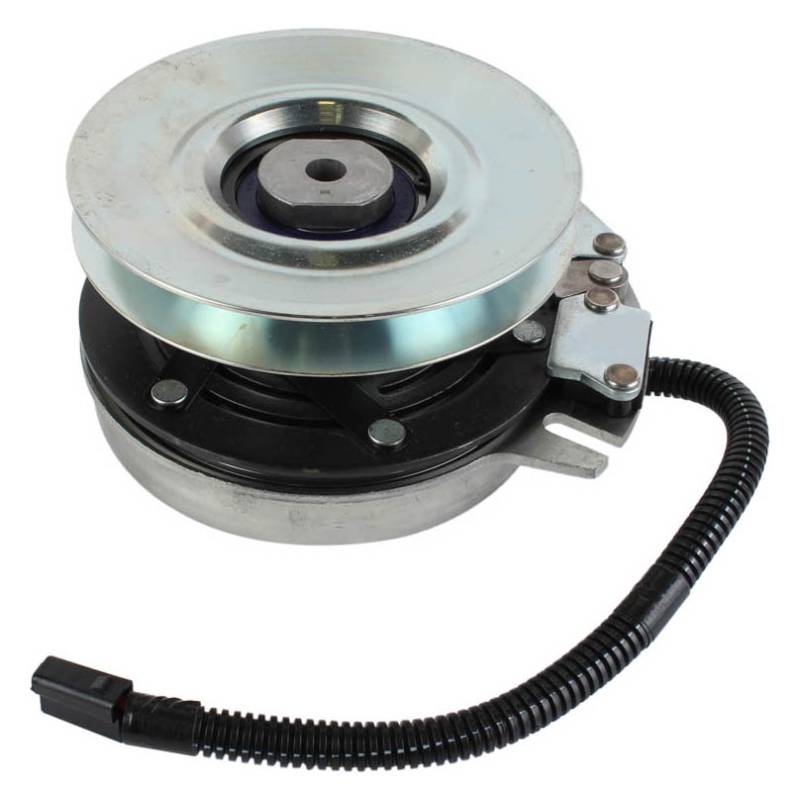

Electric PTO Clutch - Hustler FasTrak, Sport, TrimStar & Big Dog Mowers
Direct replacement electric PTO clutch/brake for Hustler/Excel FasTrak, Sport, and TrimStar zero-turn mowers, and Big Dog A-Series, C-Series, R-Series, and T-Series mowers. Features a 1-inch crankshaft diameter with a 6-inch pulley outside diameter, 4-inch overall height, and counterclockwise belt rotation. Warner MagStop design combines an electric friction clutch with a permanent magnet brake in one preassembled unit. Rated at 125 ft-lbs of torque for dependable blade engagement and stopping power. Accepts 1/2" or 5/8" belt width. Pigtail wire harness included for direct plug-in installation. Adjustment and maintenance free design. Fits Hustler FasTrak 48"/54"/60", Sport models with Kawasaki FR651V and 26HP Briggs engines, and TrimStar models with Kawasaki FS691V and 17/19HP Kawasaki engines. Also fits Big Dog A-Series, C-Series with 26HP Briggs, R-Series (except Diablo), and T-Series with Kawasaki FS691V. Direct replacement for Hustler/Big Dog 601784 / 601784K and Warner 5219-107 / 5219107. Weighs 12 lbs.
Electric PTO Clutch 1" Shaft 6" Pulley CCW - Hustler & Big Dog Applications
Electric PTO clutch/brake featuring a 1-inch crankshaft diameter and 6-inch pulley outside diameter for Hustler/Excel and Big Dog zero-turn mower blade engagement. Counterclockwise rotation with 125 ft-lbs of torque provides reliable blade start and stop performance. Overall height of 4 inches for direct-fit replacement. Accepts 1/2" or 5/8" belt width with pigtail wire harness included. Warner MagStop design integrates electric friction clutch and permanent magnet brake into one maintenance free unit requiring no adjustment. Fits Hustler FasTrak 48"/54"/60", Sport 42"/48"/54" with Kawasaki FR651V and 26HP Briggs engines, and TrimStar 36"/48"/54" with Kawasaki FS691V. Also fits Big Dog A-Series, C-Series (26HP Briggs), R-Series (except Diablo), and T-Series (Kawasaki FS691V). Replaces Hustler/Big Dog 601784 / 601784K and Warner 5219-107. Weighs 12 lbs. New aftermarket unit manufactured to OEM specifications.
⚠️ Verify OEM part number stamped on your original clutch before ordering to ensure proper fitment. Confirm shaft diameter, pulley size, rotation direction, and connector type match your original unit.
