OEM PART NUMBERS:
• Hustler/Excel: 601784 / 601784K
• Big Dog: 601784 / 601784K
• Warner: 5219-107 / 5219107
SPECIFICATIONS:
• Type: Electric PTO Clutch/Brake (MagStop)
• Crankshaft Diameter: 1"
• Pulley Outside Diameter: 6"
• Height: 4"
• Rotation: CCW (Counterclockwise)
• Torque: 125 ft-lbs
• Belt Width: 1/2" or 5/8"
• Pigtail: Included
• Weight: 12 lbs
• Condition: New
APPLICATION:
• Big Dog Mowers A-Series, C-Series, R-Series, T-Series
• Hustler/Excel FasTrak 48"/54"/60"
• Hustler/Excel Sport 42"/48"/54"
• Hustler/Excel TrimStar 36"/48"/54"

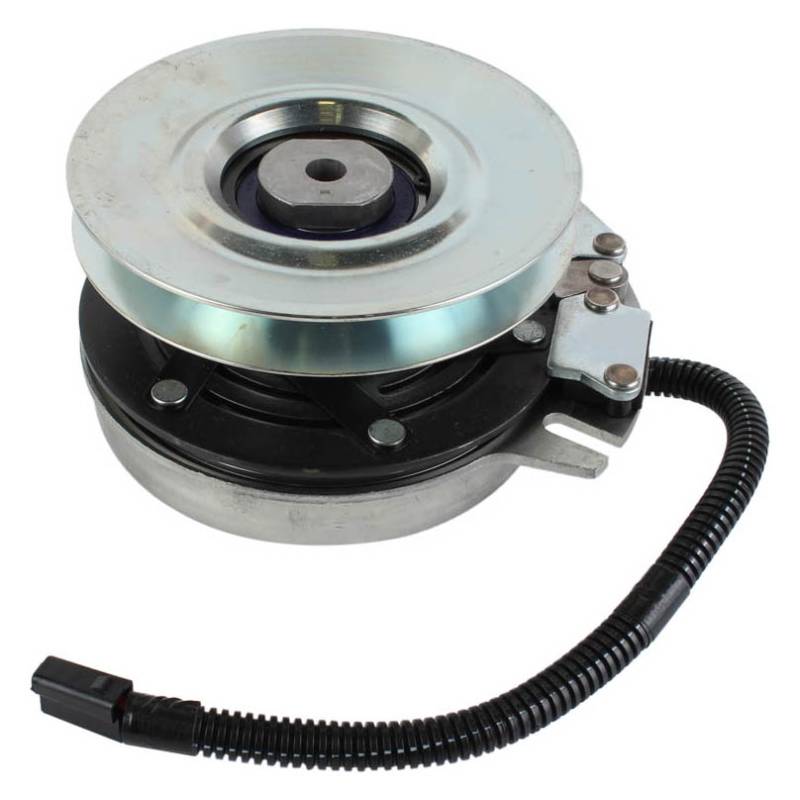

Electric PTO Clutch - Hustler FasTrak, Sport, TrimStar & Big Dog Mowers
Direct replacement electric PTO clutch/brake for Hustler/Excel FasTrak, Sport, and TrimStar zero-turn mowers, and Big Dog A-Series, C-Series, R-Series, and T-Series mowers. Features a 1-inch crankshaft diameter with a 6-inch pulley outside diameter, 4-inch overall height, and counterclockwise belt rotation. Warner MagStop design combines an electric friction clutch with a permanent magnet brake in one preassembled unit. Rated at 125 ft-lbs of torque for dependable blade engagement and stopping power. Accepts 1/2" or 5/8" belt width. Pigtail wire harness included for direct plug-in installation. Adjustment and maintenance free design. Fits Hustler FasTrak 48"/54"/60", Sport models with Kawasaki FR651V and 26HP Briggs engines, and TrimStar models with Kawasaki FS691V and 17/19HP Kawasaki engines. Also fits Big Dog A-Series, C-Series with 26HP Briggs, R-Series (except Diablo), and T-Series with Kawasaki FS691V. Direct replacement for Hustler/Big Dog 601784 / 601784K and Warner 5219-107 / 5219107. Weighs 12 lbs.
Electric PTO Clutch - Big Dog A/C/R/T Series & Hustler FasTrak Sport TrimStar
Precision-engineered electric PTO clutch/brake for Big Dog and Hustler/Excel zero-turn mower blade engagement. Fits Big Dog A-Series (all models), C-Series with Briggs & Stratton 26HP, R-Series (all models except Diablo), and T-Series with Kawasaki FS691V. Also compatible with Hustler FasTrak 48"/54"/60", Sport models with Kawasaki FR651V and 26HP Briggs engines, and TrimStar 36"/48"/54" models with Kawasaki FS691V and 17/19HP engines. Warner MagStop clutch/brake design delivers 125 ft-lbs of torque with counterclockwise rotation. Features a 1-inch crankshaft diameter, 6-inch pulley outside diameter, and 4-inch overall height. Accepts 1/2" or 5/8" belt width with pigtail included. Maintenance free design with no adjustment required. Direct replacement for Hustler/Big Dog 601784 / 601784K and Warner 5219-107 / 5219107. New aftermarket unit manufactured to OEM specifications. Weighs 12 lbs.

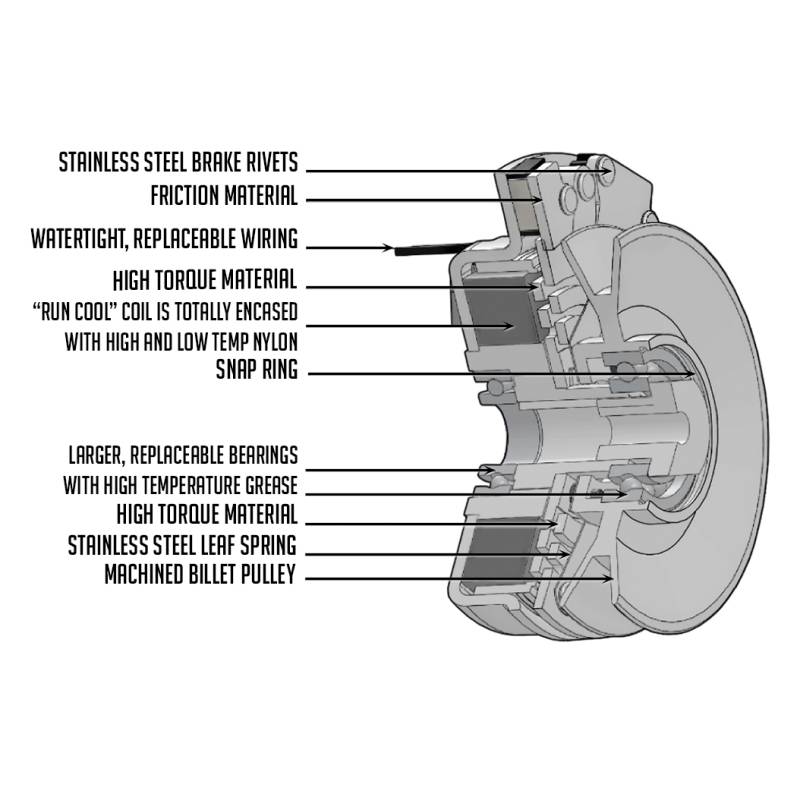

Features a factory-sealed bearing for maintenance-free operation and extended service life. Electromagnetic field coil provides instant blade engagement and disengagement for precise cutting control.
⚠️ Verify OEM part number stamped on your original clutch before ordering to ensure proper fitment. Confirm shaft diameter, pulley size, rotation direction, and connector type match your original unit.
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
