OEM PART NUMBERS:
• Hustler/Excel: 601784 / 601784K
• Big Dog: 601784 / 601784K
• Warner: 5219-107 / 5219107
SPECIFICATIONS:
• Type: Electric PTO Clutch/Brake (MagStop)
• Crankshaft Diameter: 1"
• Pulley Outside Diameter: 6"
• Height: 4"
• Rotation: CCW (Counterclockwise)
• Torque: 125 ft-lbs
• Belt Width: 1/2" or 5/8"
• Pigtail: Included
• Weight: 12 lbs
• Condition: New
APPLICATION:
• Big Dog Mowers A-Series, C-Series, R-Series, T-Series
• Hustler/Excel FasTrak 48"/54"/60"
• Hustler/Excel Sport 42"/48"/54"
• Hustler/Excel TrimStar 36"/48"/54"

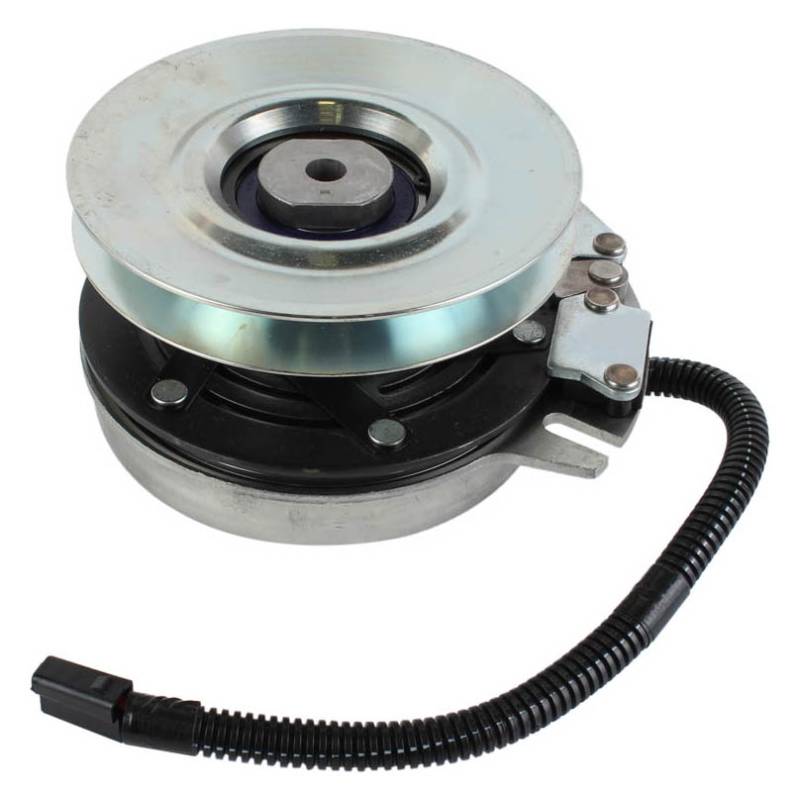

Electric PTO Clutch - Hustler FasTrak, Sport, TrimStar & Big Dog Mowers

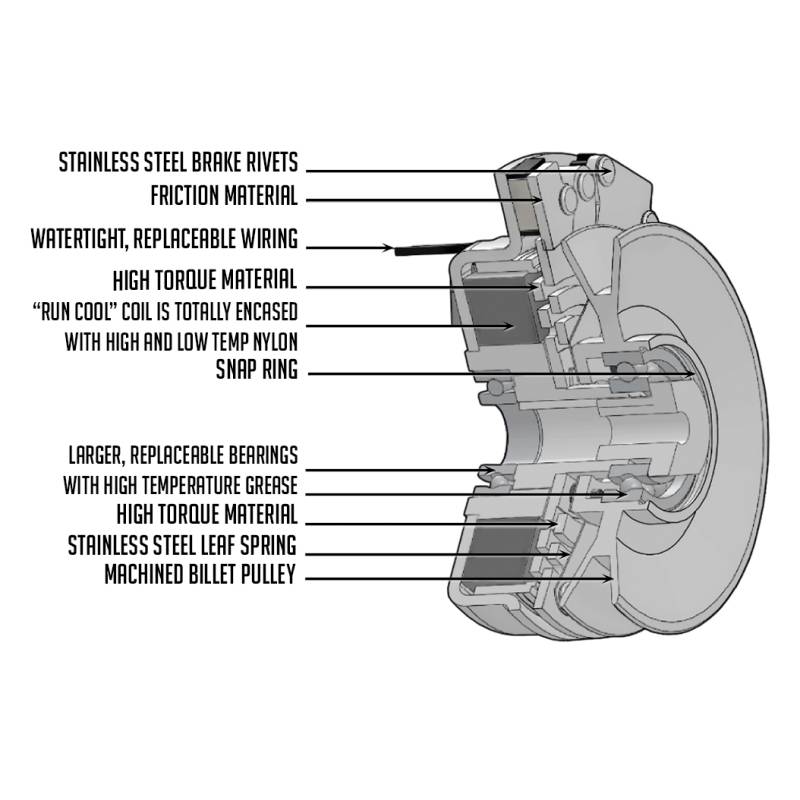

Direct replacement electric PTO clutch/brake for Hustler/Excel FasTrak, Sport, and TrimStar zero-turn mowers, and Big Dog A-Series, C-Series, R-Series, and T-Series mowers. Features a 1-inch crankshaft diameter with a 6-inch pulley outside diameter, 4-inch overall height, and counterclockwise belt rotation. Warner MagStop design combines an electric friction clutch with a permanent magnet brake in one preassembled unit. Rated at 125 ft-lbs of torque for dependable blade engagement and stopping power. Accepts 1/2" or 5/8" belt width. Pigtail wire harness included for direct plug-in installation. Adjustment and maintenance free design. Fits Hustler FasTrak 48"/54"/60", Sport models with Kawasaki FR651V and 26HP Briggs engines, and TrimStar models with Kawasaki FS691V and 17/19HP Kawasaki engines. Also fits Big Dog A-Series, C-Series with 26HP Briggs, R-Series (except Diablo), and T-Series with Kawasaki FS691V. Direct replacement for Hustler/Big Dog 601784 / 601784K and Warner 5219-107 / 5219107. Weighs 12 lbs.
PTO Clutch for Hustler Sport & FasTrak Zero-Turn Mowers with Big Dog Applications
High-performance electric PTO clutch/brake engineered for Hustler/Excel Sport 42-inch, 48-inch, and 54-inch models with Kawasaki FR651V and 26HP Briggs & Stratton engines. Also fits Hustler FasTrak 48"/54"/60" and TrimStar 36"/48"/54" zero-turn mowers. Compatible with Big Dog A-Series, C-Series, R-Series (except Diablo), and T-Series mowers. Warner TG2000 MagStop design combines electric friction clutch and permanent magnet brake in a single preassembled unit requiring no adjustment. Features a 1-inch crankshaft diameter, 6-inch pulley diameter, and counterclockwise rotation rated at 125 ft-lbs of torque. Accepts 1/2" or 5/8" belt width with pigtail included. Overall height of 4 inches for direct-fit replacement. Built for long service life in residential and commercial mowing environments. Replaces Hustler/Big Dog 601784 / 601784K and Warner 5219-107 / 5219107. New aftermarket unit built to OEM specifications. Weighs 12 lbs.
⚠️ Verify OEM part number stamped on your original clutch before ordering to ensure proper fitment. Confirm shaft diameter, pulley size, rotation direction, and connector type match your original unit.
