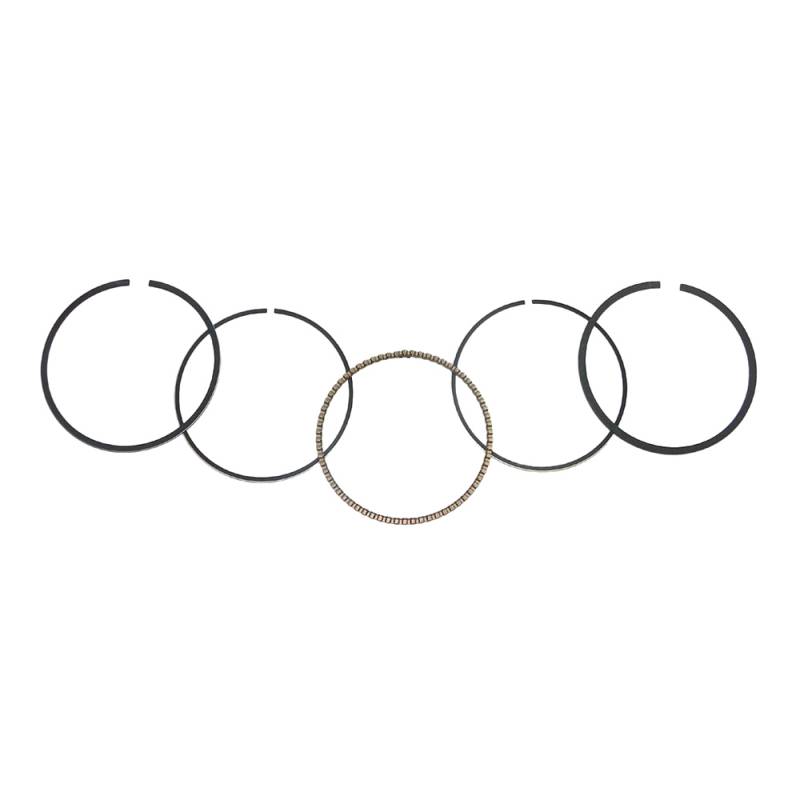

Piston Rings 0.25Mm Over Compatible With 1988-2002 Kawasaki Bayou 220 Klf220 215Cc Air-Cooled Sohc

OEM PART NUMBERS:
• 13029-1177 (Standard Piston)
• 13025-1085 (0.50mm Oversize Ring Set)
• 13027-1154 (1.00mm Oversize Piston)
• 13002-1089 (Piston Pin)
• 11012-1145 (Cylinder Head Gasket)
• 11060-1302 (Cylinder Base Gasket)

SPECIFICATIONS:
• Type: Piston Ring Set
• Oversize: 0.25mm Over Standard
• Total Diameter: 67.25mm
• Standard Bore: 67.00mm
• Stroke: 61.00mm
• Displacement: 215cc
• Engine: Air-Cooled SOHC 4-Valve Single Cylinder
• Compression: 9.3:1

COMPATIBILITY:
• 1988-2002 Kawasaki KLF220A Bayou 220 2x4

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
