OEM PART NUMBERS:
• 13010-HN8-A61 (Standard Ring Set)
• 13101-HN8-A60 (Standard Piston)
• 13111-HN8-A60 (Piston Pin)
• 90602-MBN-670 (Piston Pin Clip)
• 12100-HN8-A60 (Cylinder)
• 12191-HN8-000 (Base Gasket)
• 12251-HN8-A61 (Head Gasket)
• 12315-HN8-000 (Head Cover Gasket)
SPECIFICATIONS:

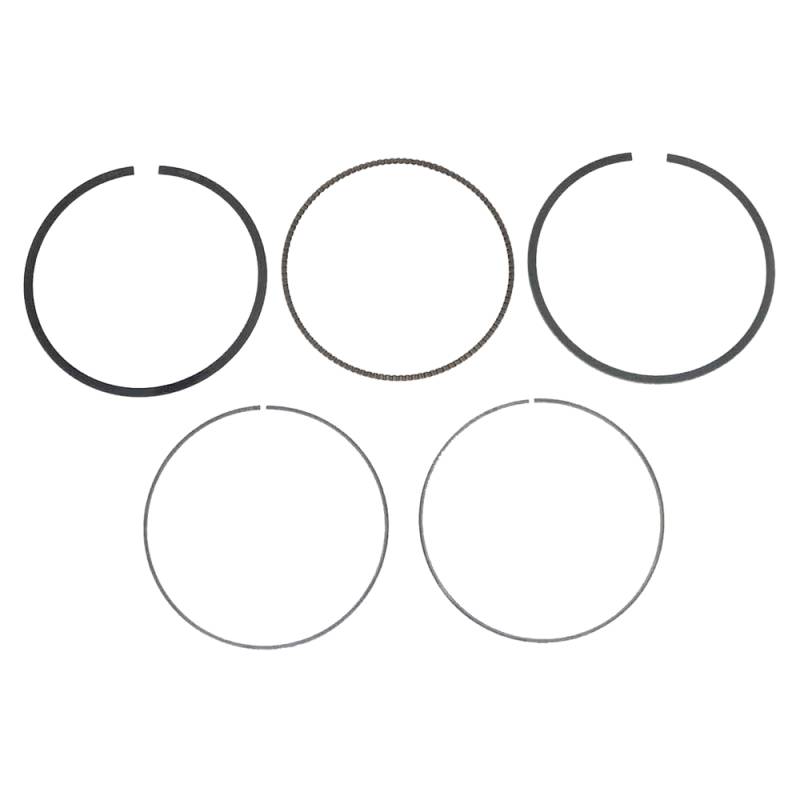

• Type: Piston Ring Set
• Oversize: 0.75mm Over Standard
• Total Diameter: 102.75mm
• Standard Bore: 102.00mm
• Stroke: 82.60mm
• Displacement: 675cc
• Engine: Liquid-Cooled OHV Semi-Dry-Sump Single Cylinder
• Compression: 9.2:1
COMPATIBILITY:
• 2006-2023 Honda TRX680FA FourTrax Rincon 4x4
• 2006-2009 Honda TRX680FGA Rincon GPScape 4x4
• 2009-2013 Honda MUV700 Big Red 700
• 2014-2024 Honda SXS700 Pioneer 700
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
