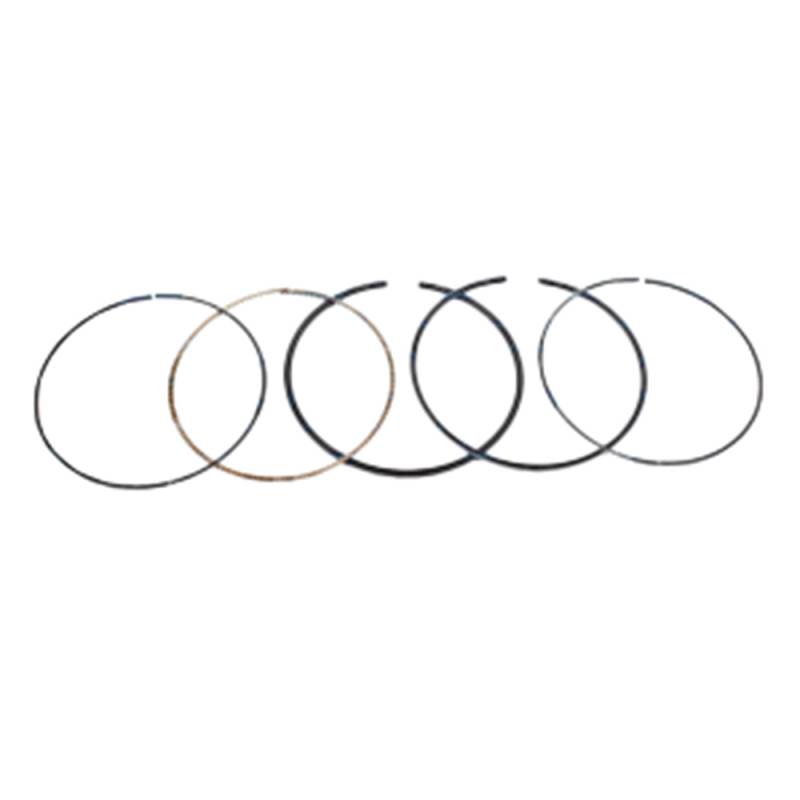

Piston Rings 0.50Mm Over Compatible With 1993-2022 Kawasaki Kaf620 Mule 2500 2510 3000 3010 4000

51-260-05-PIO
OEM PART NUMBERS:
• 13008-6025 (Standard Ring Set)
• M97319 (John Deere Cross-Reference)

SPECIFICATIONS:
• Type: Piston Ring Set
• Oversize: 0.50mm Over Standard
• Total Diameter: 76.50mm
• Standard Bore: 76.00mm
• Stroke: 68.00mm
• Displacement: 617cc (V-Twin Total)
• Engine: Liquid-Cooled OHV V-Twin (FD620D)
• Compression: 9.0:1
• Quantity: One Per Cylinder

COMPATIBILITY:
• 1993-2000 Kawasaki Mule 2500/2510/2520
• 2001-2008 Kawasaki Mule 3000/3010/3020
• 2009-2022 Kawasaki Mule 4000/4010
• John Deere 425/445 with FD620D Engine

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $85.66
Sale: $48.95
Save: 43%
Save: $36.71
Qty:
Free Shipping!

Description

KAWASAKI MULE UTV APPLICATIONS:

MULE 2500/2510/2520 SERIES:
• KAF620-A Mule 2510 4x4 (1993-2000)
• KAF620-B Mule 2520 Turf (1993-2000)
• KAF620-C Mule 2500 (1994-2000)

MULE 3000/3010/3020 SERIES:
• KAF620-G Mule 3000 (2001-2008)
• KAF620-E Mule 3010 4x4 (2001-2008)
• KAF620-H Mule 3010 4x4 (2003-2008)
• KAF620-J Mule 3010 Trans 4x4 (2005-2008)
• KAF620-F Mule 3020 (2001-2003)

MULE 4000/4010 SERIES:
• KAF620 Mule 4000 (2009-2022)
• KAF620 Mule 4010 4x4 (2009-2022)
• KAF620 Mule 4010 Trans 4x4 (2009-2022)

ENGINE SPECIFICATIONS:
• Engine: 617cc Liquid-Cooled OHV V-Twin 4-Stroke (FD620D)
• Bore and Stroke: 76.00mm x 68.00mm Per Cylinder (Standard)
• Compression Ratio: 9.0:1
• Horsepower: 18.7HP at 3600 RPM

NOTES:
• This is a 0.50mm over standard ring set (76.50mm bore)
• Order one ring set per cylinder (2 sets needed for complete V-Twin rebuild)
• Also fits John Deere 425/445 with FD620D engine (JD M97319)
• Verify OEM part number before ordering

Details

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W7.0000” x H0.5000” x L9.0000”
  • Free Shipping!
