OEM CROSS-REFERENCE PART NUMBERS:
• 13010-HP0-A01 (standard piston ring set)
• 13012-HP0-A01 (0.50mm oversize ring set)
• 13013-HP0-A01 (0.75mm oversize ring set)
• 13101-HP0-A00 (piston, 2005-2011 air-cooled models)
• 13101-HR0-F00 (piston, 2012-Present liquid-cooled models)
• 13111-HP5-600 (piston pin)
• 13112-MAT-000 (piston pin circlip)
• 12100-HP0-A00 (cylinder, 2005-2011)
• 12100-HR0-F00 (cylinder, 2012-Present)
SPECIFICATIONS:

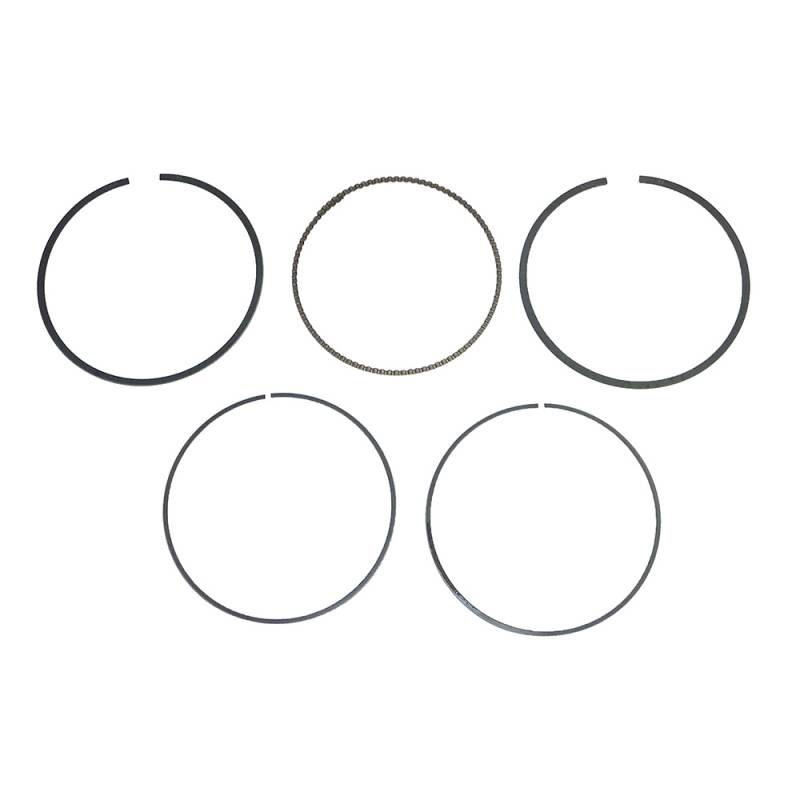

• Product Type: Piston Ring Set
• Bore Size: 92.25mm
• Oversize: +0.25mm
• Standard Bore: 92.00mm
• Engine: 475cc 4-Stroke OHV Single Cylinder
• Bore x Stroke: 92mm x 71.5mm
• Ring Widths: 1.0mm / 1.0mm / 2.5mm
• Piston Pin: 19mm
COMPATIBILITY:
• Honda Foreman 500 TRX500 (2005-Present)
• Honda Foreman Rubicon 500 TRX500FA/FM (2015-Present)
• Honda Pioneer 500 SXS500M2 (2015-2021)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
