OEM PART NUMBERS:
• Yamaha (.25mm over ring set): 3YF-11610-10-00 / 3YF116101000
• Yamaha (standard ring set ref): 3YF-11610-00-00 / 2C6-11603-00-00
SPECIFICATIONS:

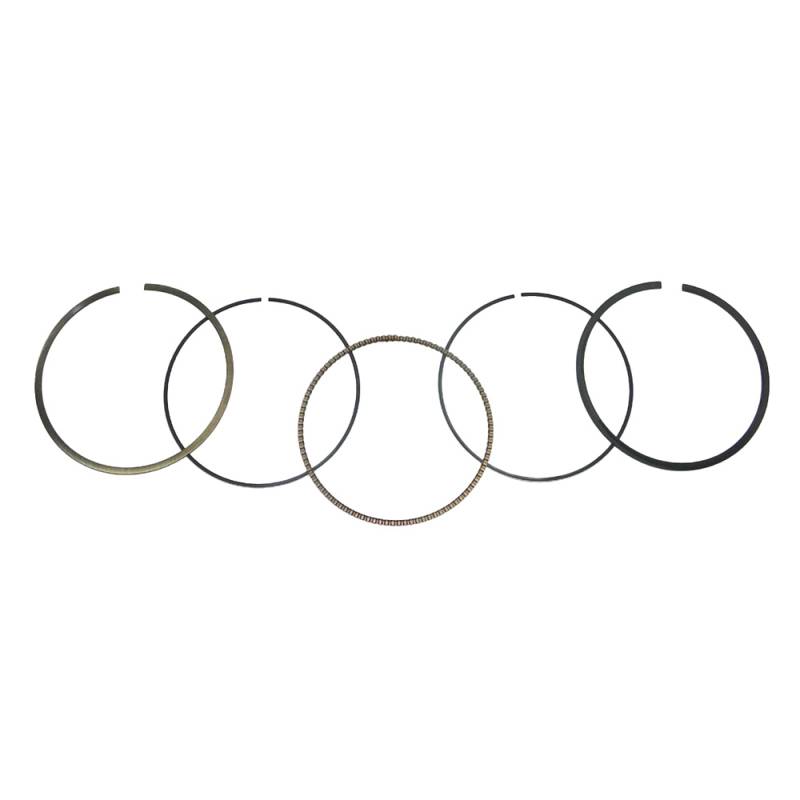

• Type: Piston Ring Set (rings only)
• Bore Size: 100.25mm (+0.25mm oversize)
• Standard Bore: 100.00mm
• Oversize: +0.25mm
• Stroke: 84.00mm
• Displacement: 660cc
• Engine: SOHC 4-Stroke Liquid-Cooled Single Cylinder
• Condition: New
APPLICATIONS SUMMARY:
• Yamaha YFM660FA Grizzly 660 4x4 660cc SOHC (2002-2008)
• Yamaha YFM660R Raptor 660R 660cc SOHC (2001-2005)
• Yamaha YXR660FA Rhino 660 4x4 660cc SOHC (2004-2007)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
