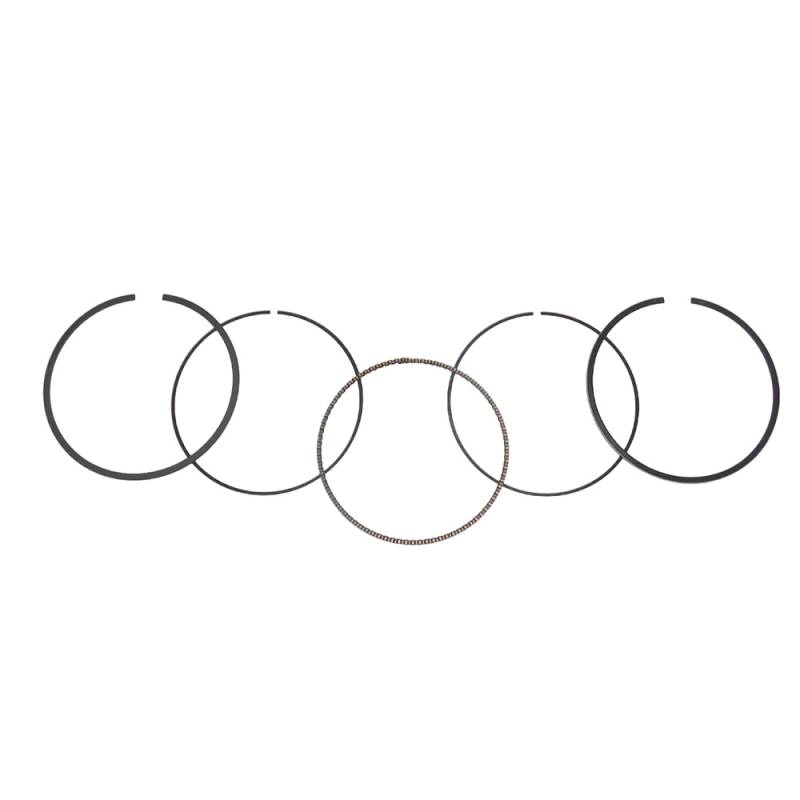

Piston Rings 0.75Mm Oversize Compatible With 2007-2023 Honda Trx420 Rancher 420 Fe Fm Te Tm Fa Fpm

OEM PART NUMBERS:
• 13010-HP5-600 (Standard Ring Set)
• 13101-HP5-600 (Standard Piston)
• 13111-HP5-600 (Piston Pin)
• 13112-MAT-000 (Piston Pin Clip)
• 12100-HP7-A00 (Cylinder)
• 12100-HP5-600 (Cylinder - Alternate)
• 12191-HP5-601 (Base Gasket)
• 12251-HP7-A01 (Head Gasket)
• 12251-HP5-601 (Head Gasket - Alternate)
• 12315-HP5-601 (Head Cover Gasket)

SPECIFICATIONS:
• Type: Piston Ring Set
• Oversize: 0.75mm Over Standard
• Total Diameter: 87.25mm
• Standard Bore: 86.50mm
• Displacement: 420cc
• Engine: Liquid-Cooled OHC Single Cylinder 4-Stroke
• Compression: 9.9:1

COMPATIBILITY:
• 2007-2023 Honda TRX420FE Rancher 4x4 ES
• 2007-2023 Honda TRX420FM Rancher 4x4
• 2007-2015 Honda TRX420TE Rancher 2x4 ES
• 2007-2023 Honda TRX420TM Rancher 2x4
• 2009-2023 Honda TRX420FA Rancher 4x4 AT

PRODUCT NOTICE:
