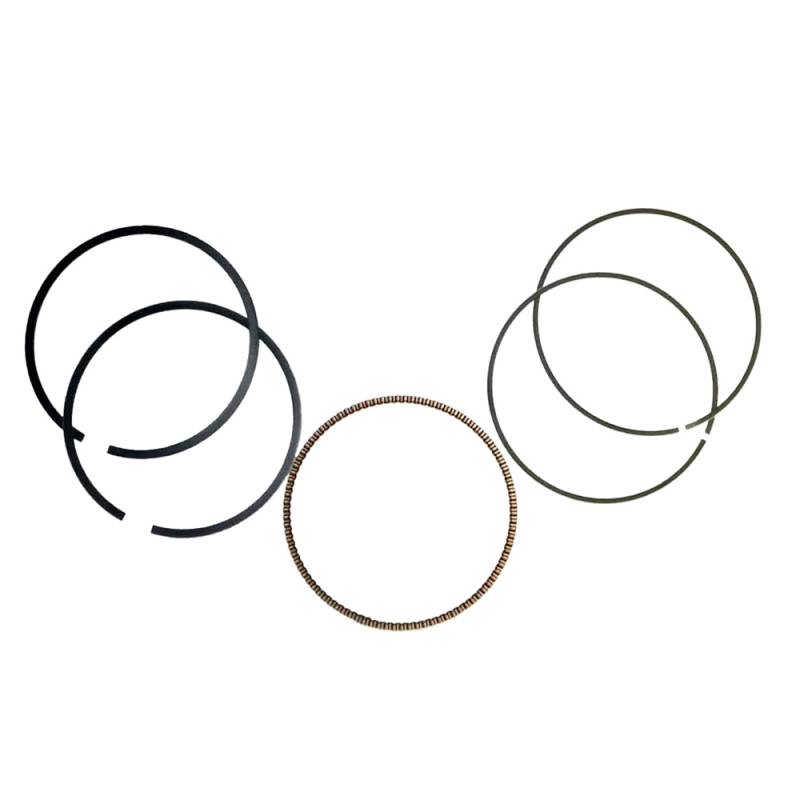

Piston Rings Compatible With 1998-2001 Yamaha Yfm600f Grizzly 600 4X4 595Cc Sohc 4-Stroke Single

51-542-PIO
OEM PART NUMBERS:
• 34L-11610-00-00 (Ring Set Standard)
• 34L-11610-40-00 (Ring Set 1.00mm Over)
• 3TB-11631-00-Y0 (Piston Reference)

SPECIFICATIONS:
• Type: Piston Ring Set
• Size: Standard
• Total Diameter: 95.00mm
• Standard Bore: 95.00mm
• Stroke: 84.0mm
• Displacement: 595cc
• Engine: Air-Cooled SOHC 4-Stroke Single Cylinder
• Compression Ratio: 8.5:1

COMPATIBILITY:
• 1998-2001 Yamaha YFM600F Grizzly 600 4x4
• 2000-2001 Yamaha YFM600FH Grizzly 600 Hunter Edition

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $60.97
Sale: $34.84
Save: 43%
Save: $26.13
Qty:
Free Shipping!

Description

YAMAHA GRIZZLY 600 APPLICATIONS:

GRIZZLY 600 4x4 (1998-2001):
• YFM600FWA Grizzly 600 4x4 (1998)
• YFM600F Grizzly 600 4x4 (1999-2001)
• YFM600FH Grizzly 600 4x4 Hunter Edition (2000-2001)

ENGINE SPECIFICATIONS:
• Engine: 595cc Air-Cooled SOHC 4-Stroke Single Cylinder
• Bore and Stroke: 95.00mm x 84.0mm
• Compression Ratio: 8.5:1
• Piston Pin: 22mm
• Valvetrain: SOHC 3-Valve
• Starting: Electric and Recoil

NOTES:
• This is a standard ring set (95.00mm bore)
• Engine derived from Yamaha XT600 motorcycle platform
• Replaced by Grizzly 660 in 2002
• Verify OEM part number before ordering

Details

Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W7.0000” x H0.5000” x L9.0000”
  • Free Shipping!
