OEM PART NUMBERS:
• OMC/BRP: 0335679 / 335679 (manufacturer original)
• OMC/BRP: 0346005 / 346005 (interchange OEM)
• MPN: 449-236
SPECIFICATIONS:

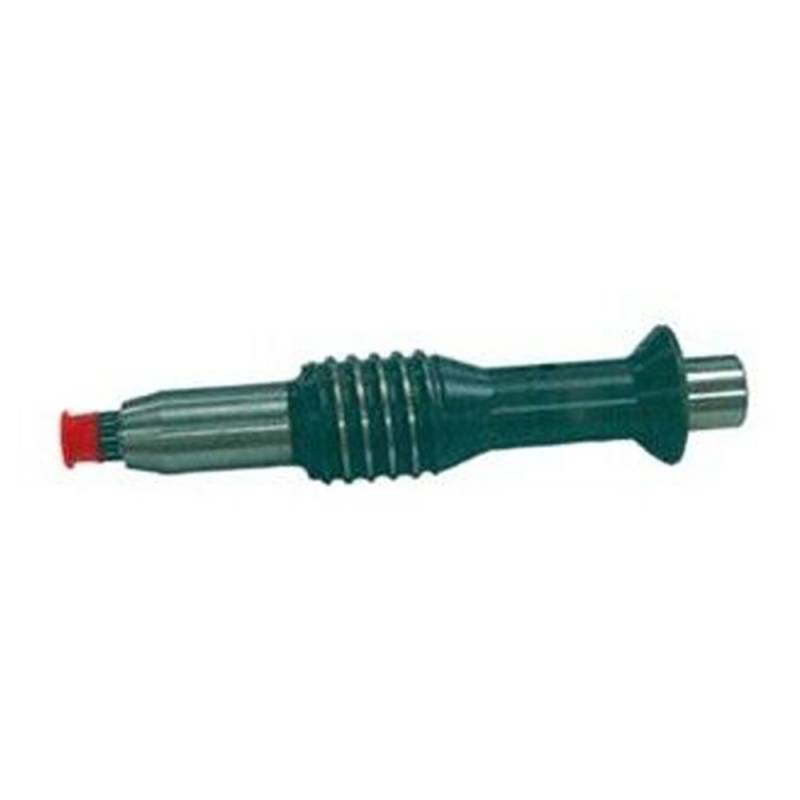

• Type: Lower Unit Drive Shaft (FINE SPLINE / Two-Piece Design)
• Spline Type: FINE SPLINE (more, smaller teeth)
• Position: Lower (Below Driveshaft Coupler)
• Function: Transmits Power from Coupler to Pinion Gear
• Configuration: Splined for Pinion Gear Engagement
• Material: Heat-Treated Steel
• HP Range: 155 - 300 HP
• Engine Compatibility: V6 Cross Flow / V8 Big Bore Looper
• Bore Sizes: 3.500 (V6 Cross Flow) / 3.685 (V8 Looper)
• Year Range: 1990-1995 Model Years
• Use Case: Vintage Outboard Lower Unit Rebuild / Replacement
• Condition: New
APPLICATIONS:
• Johnson Evinrude V6 155HP 3.500 Bore Cross Flow (1990)
• Johnson Evinrude V8 250HP 3.685 Bore Big Bore Looper (1991-1995)
• Johnson Evinrude V8 300HP 3.685 Bore Big Bore Looper (1990-1995)
• 2-Stroke Marine Outboard Motors (Vintage Large Block)
• Spans 2 Distinct Engine Families: Cross Flow + Big Bore Looper
• FINE SPLINE variant only
• Does NOT fit Coarse Spline applications
• Does NOT fit Counter-Rotation Models (uses different shaft)
• Does NOT fit 25-inch Transom Configurations (uses different shaft)
• Does NOT fit V6 60-Degree or FICHT/E-TEC engines
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
