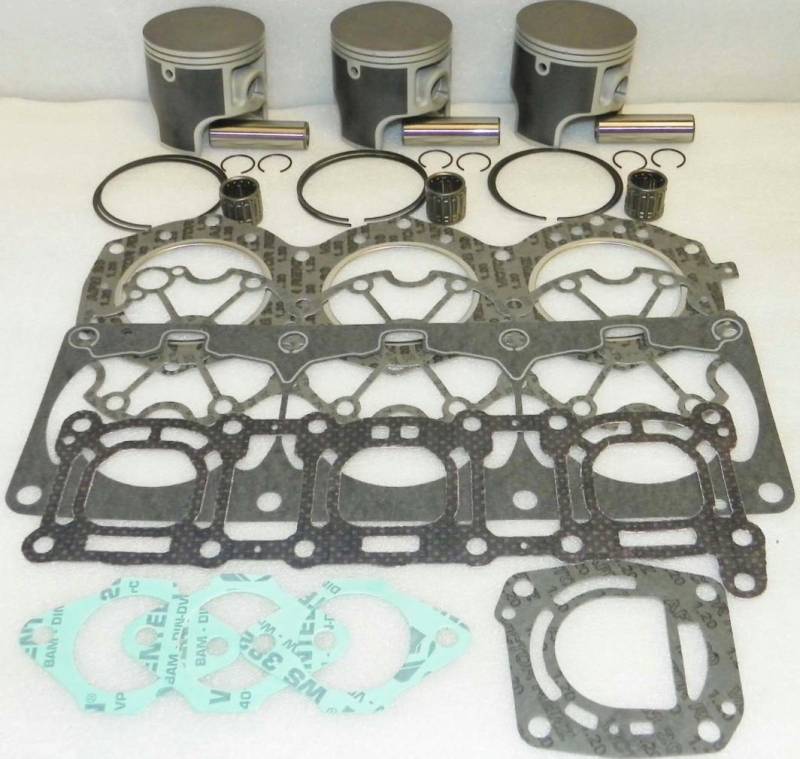

Platinum Rebuild Kit Compatible With 1995-1998 Yamaha Wave Raider 1100 Wave Venture 1100 Exciter 220

010-827-24PA1
OEM PART NUMBERS (62T/63M):
• Yamaha: 62T-11631-00-92 / 62T116310092
• Yamaha: 62T-11631-01-92 / 62T116310192
• Yamaha: 62T-11631-02-92 / 62T116310292
• Yamaha: 63M-11631-00-89 / 63M116310089

SPECIFICATIONS:
• Product Type: Platinum Rebuild Kit
• Bore Size: 82.00mm (1mm Over — Standard 81.00mm)
• Piston-to-Wall Clearance: .004–.0045"
• Piston: Forged Platinum Grade
• Engine: Yamaha 1051cc 3-Cyl Triple 2-Stroke, 81mm × 68mm (63M)
• Fuel: Triple 38mm Mikuni carbs | Reed valve intake | CDI ignition
• 3 Pistons Per Kit (Complete Triple) • Weight: 6 lbs

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $559.20
Sale: $319.54
Save: 43%
Save: $239.66
Qty:
Free Shipping!

Description

YAMAHA WAVE RAIDER 1100 — SIT-DOWN PWC (1995-1996):
• Wave Raider 1100 1051cc 63M 3-Cyl 2-Stroke ~110HP (1995-1996)
2-passenger sit-down PWC | Triple 38mm Mikuni carbs | Reed valve intake
CDI ignition | 155mm jet pump | 540 lbs dry | 112.6" length

YAMAHA WAVE VENTURE 1100 — TOURING PWC (1996-1997):
• Wave Venture 1100 1051cc 63M 3-Cyl 2-Stroke ~110HP (1996-1997)
3-passenger touring PWC | Triple 38mm Mikuni carbs | Reed valve intake
CDI ignition | 155mm jet pump | 61 mph top speed | 124" length

YAMAHA EXCITER 220 — JET BOAT (1996-1998):
• Exciter 220 1051cc 63M 3-Cyl 2-Stroke per engine (1996-1998)
5-passenger jet boat | Twin 63M engines = 220HP combined
Twin 155mm jet pumps | 60 mph top speed | 16.6' length

ENGINE SPECIFICATIONS — YAMAHA 63M:
• Displacement: 1051cc 3-Cylinder Inline Triple 2-Stroke
• Bore × Stroke: 81.0mm × 68mm
• Engine Code: 63M (stamped on cylinder head)
• Fuel System: Triple 38mm Mikuni carburetors | Reed valve intake
• Ignition: CDI | Cooling: Open-loop raw water
• Output: ~110HP @ 6500 RPM per engine
• Jet Pump: 155mm axial flow
