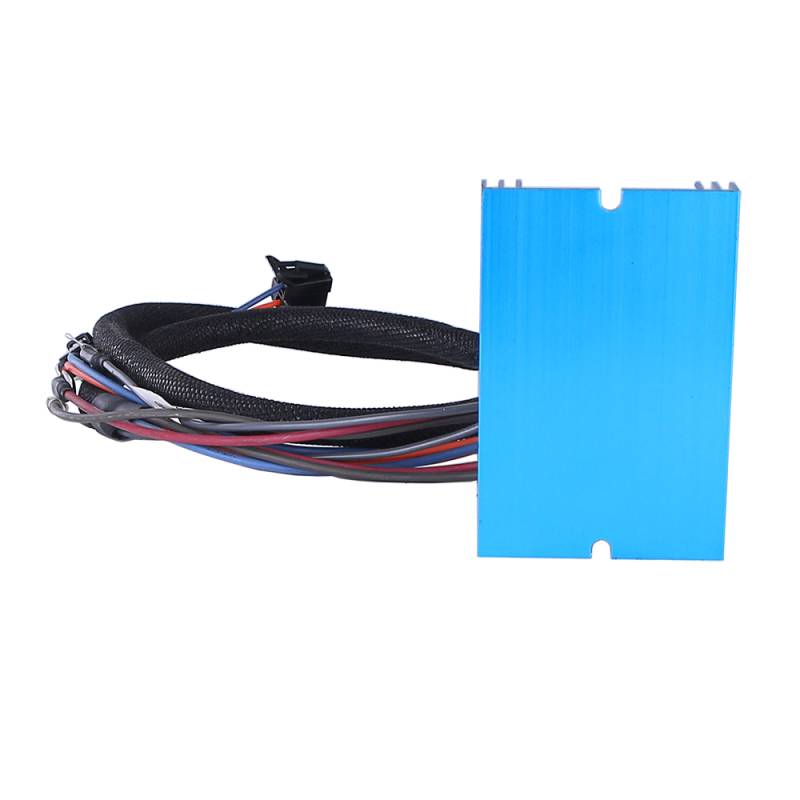

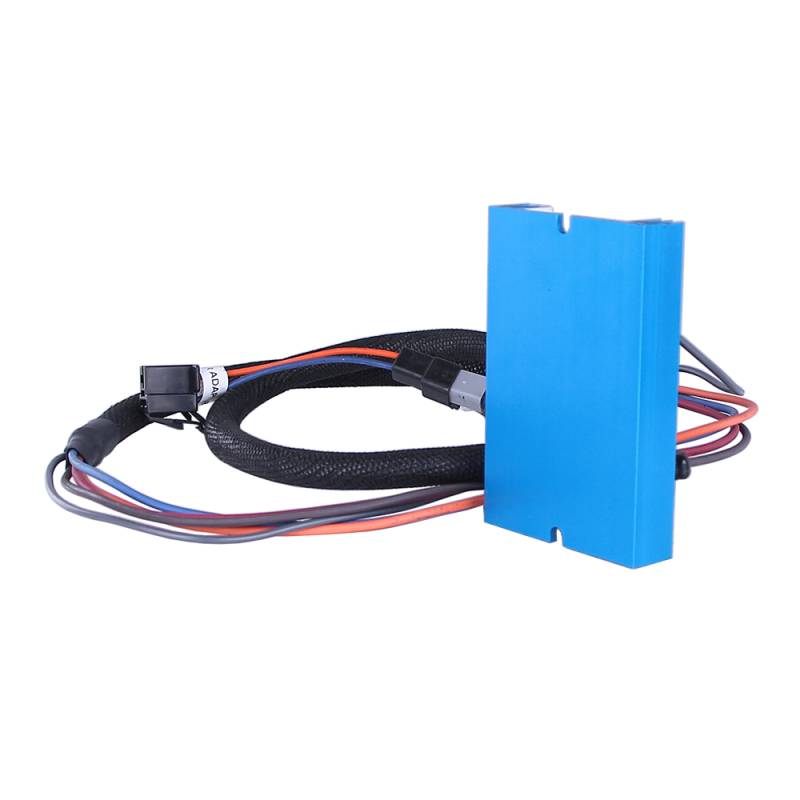

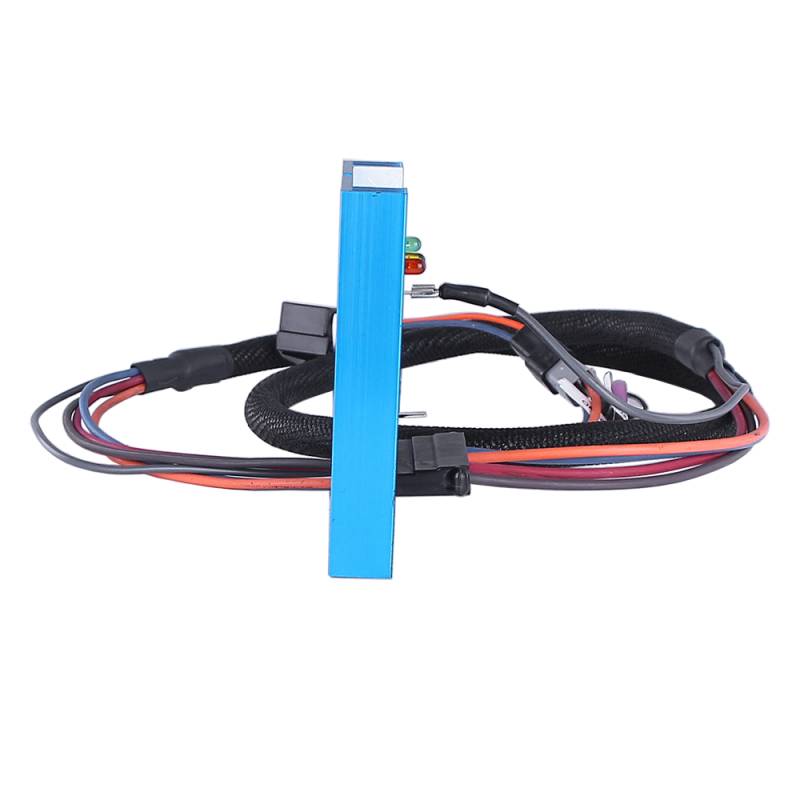

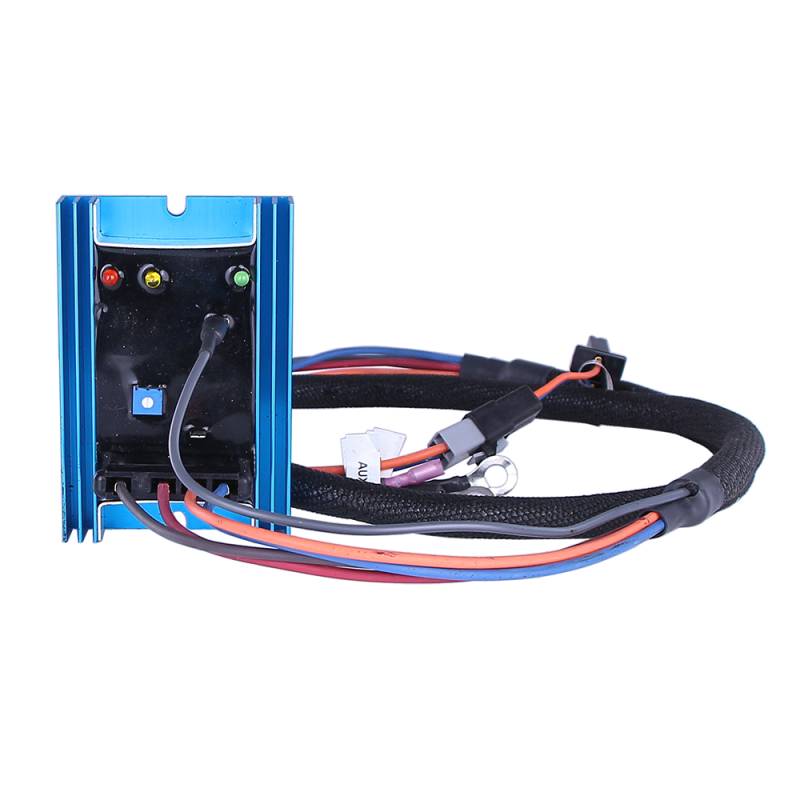

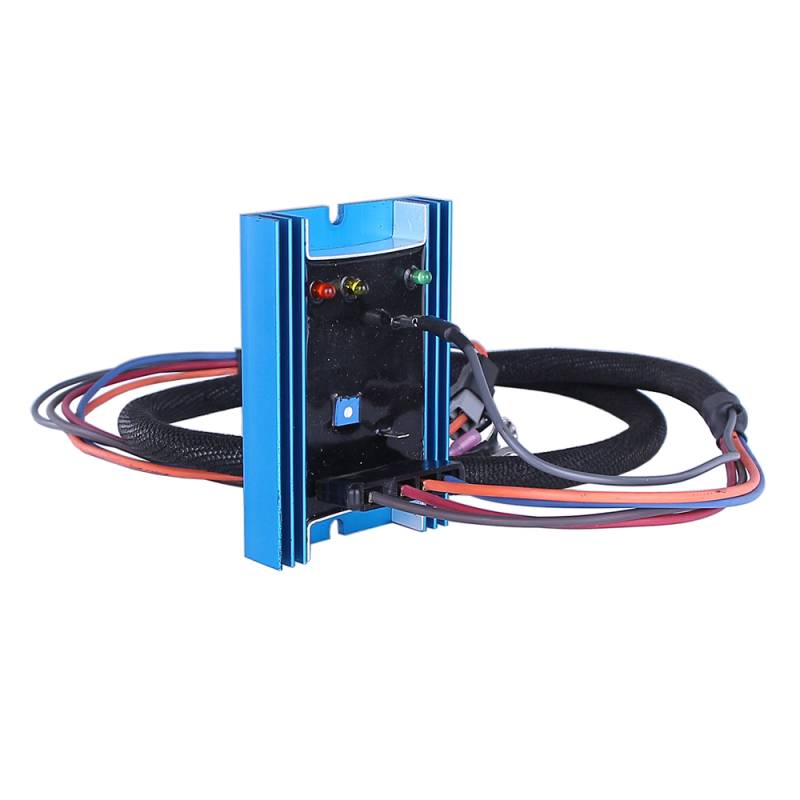

Voltage Regulator With Harness Compatible With Penntex Px-4 Series High Amp Alternator Bus Fleet

PENNTEX REGULATOR PART NUMBERS:
• Penntex: PX-1000 / PX1000
• Penntex: PX-2000 / PX2000
• Penntex: PX-3000 / PX3000
• Penntex: PX-4000 / PX4000
• Penntex: PX-5000 / PX5000

SPECIFICATIONS:

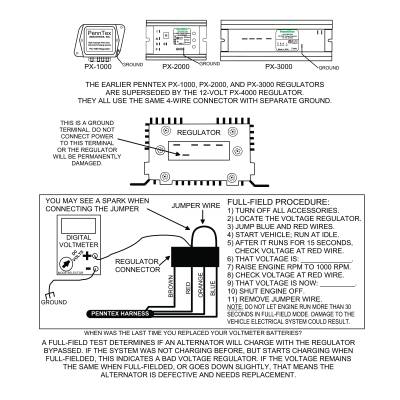

• Type: External Voltage Regulator with Wiring Harness
• Circuit: B-Circuit (Negative Sensing)
• Harness Length: Up to 72" (84" on select Arboc bus applications)
• Wire Colors: Black=Ground, Blue=Field, Orange=Stator, Red=Battery, Brown=Exciter
• Compatible Regulator Series: PX-1000 / PX-2000 / PX-3000 / PX-4000 / PX-5000
• Condition: New

FITS THESE PENNTEX ALTERNATOR MODELS:
• PX-1 Series: PX1P / PX115P
• PX-2 Series: PX2 / PX2P / PX2P200 / PX2R5T / PX2RL5 / PX220 / PX220P2-5 / PX220P5 / PX220R5 / PX220T
• PX-4 Series: PX420S / PX422V / PX422V2 / PX4CS / PX4C200 / PX4JM / PX4P2 / PX4V220-2 / PX4V220-4 / PX4V220-10
• PX-5/520 Series: PX520P / PX520R / PX520RD / PX520T / PX520TD / PX520TD6 / PX520TD12 / PX520TFD / PX525RD
• PX-5 Variants: PX5R200 / PX5RD230 / PX5T200 / PX5TD200 / PX5TD230 / PX5TD250 / PX5TD6-230 / PX5TD12-200 / PX5GD200 / PX5GD230 / PXRD200 / PXRD230
• PX-7 Series: PX7RD250

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
