OEM PART NUMBERS:
• Cummins/Onan: 5332265 / 5332265F
• Cummins: 5302290
SPECIFICATIONS:
• Voltage: 12V
• Amperage: 70A
• Rotation: CW (Clockwise)
• Regulator: Internal (Clock Position 0.5)
• Fan: Internal
• Pulley: 8-Groove Serpentine, Solid Type
• Pulley OD: 66mm / 2.598"
• Groove OD: 60mm / 2.362"
• Mount Hole 1: 10.5mm Unthreaded
• Mount Hole 3: M10-1.5 Threaded
• B+ Terminal: M6-1.0 Stud
• IG/L Terminals: Spade
• Polarity: Negative Ground
• Condition: New
APPLICATION:
• Foton Tunland / Aumark / Toano / View CS2 / Ollin w/ISF2.8 (2012-On)
• GAZelle NEXT / NN / Business / Sobol w/ISF2.8 129-150HP (2010-On)
• Otokar Atlas Light Truck w/ISF2.8 (2013-On)
• BAIC BJ80 Off-Road SUV w/2.8L Diesel (2016-On)
• Compact Construction Equipment w/QSF2.8 49-74HP (2013-On)
• Cummins R2.8 Crate Engine Conversions (2017-On)

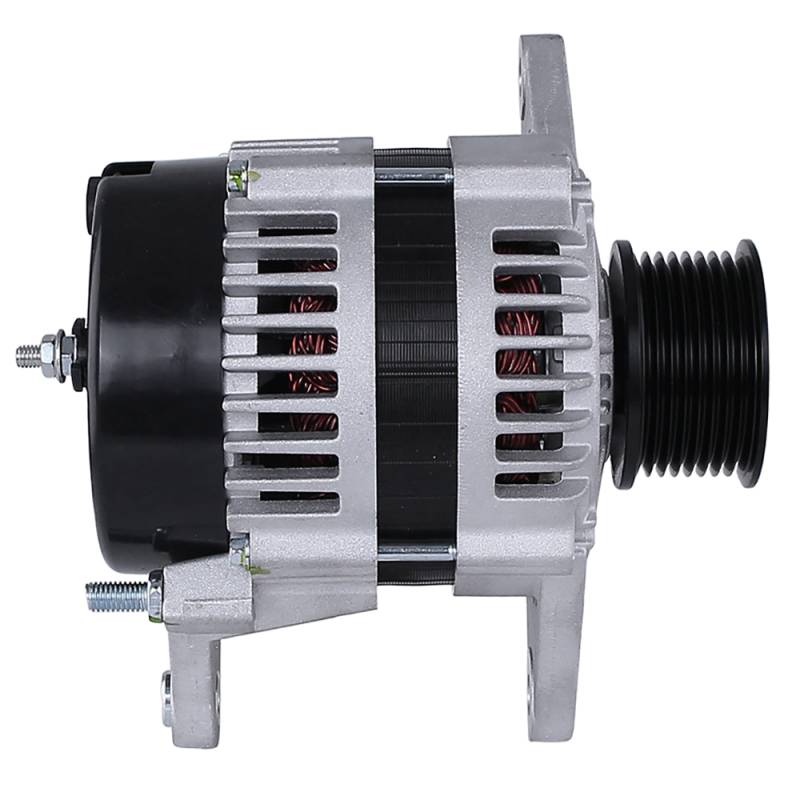

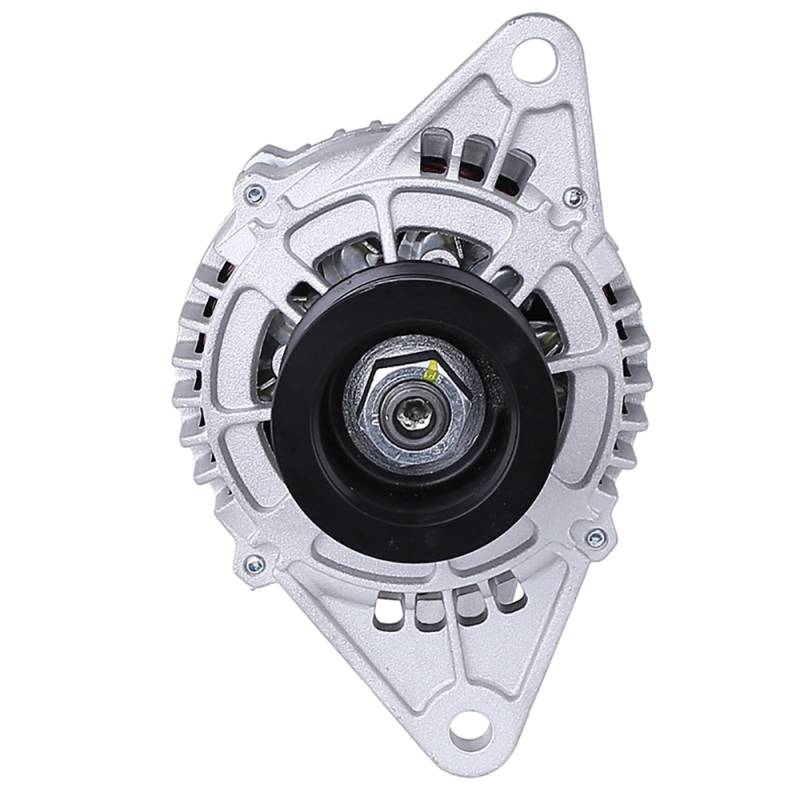

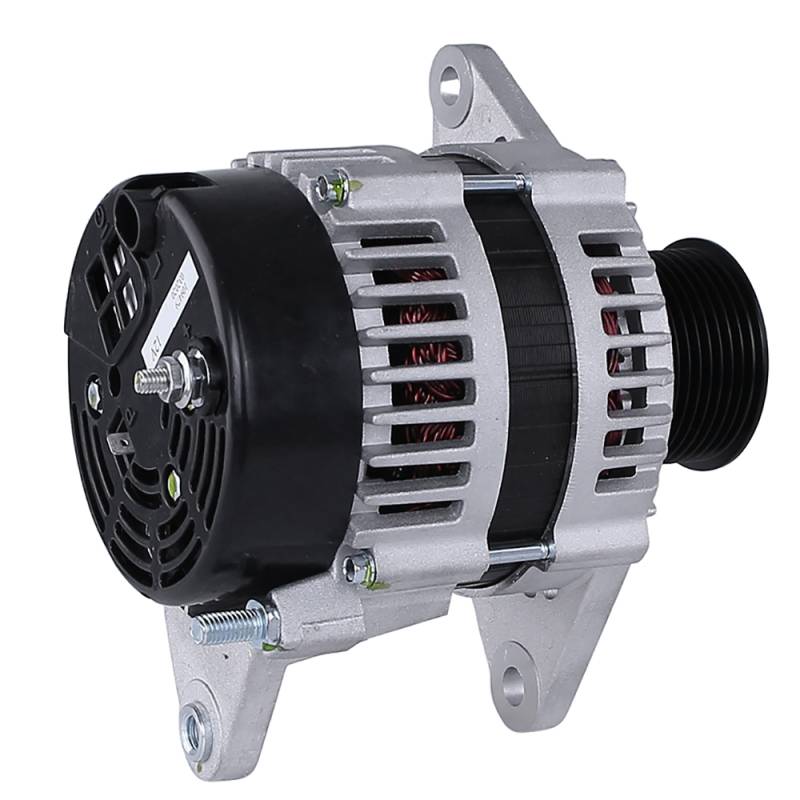

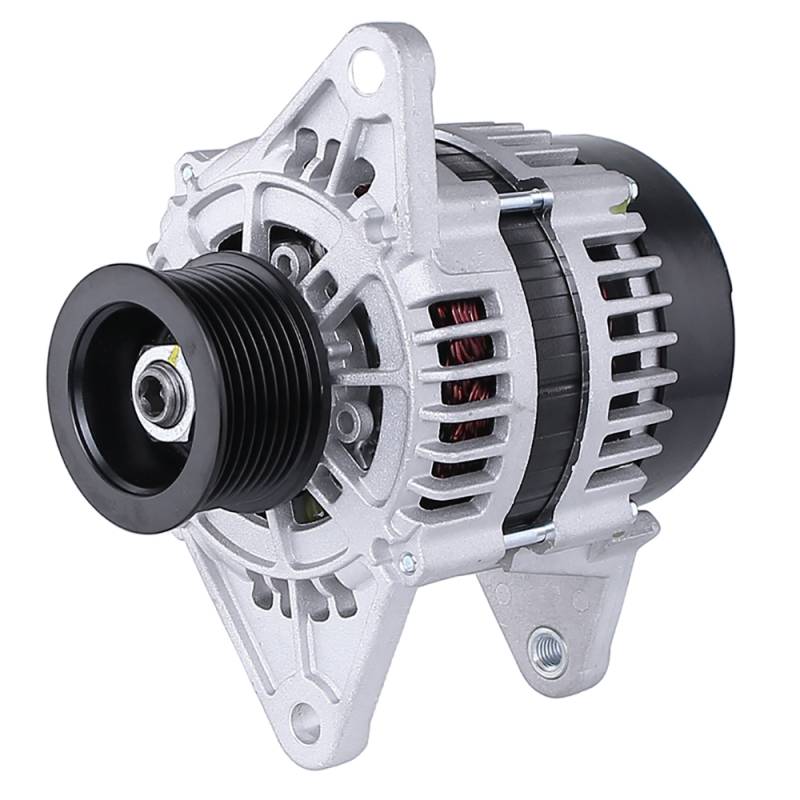

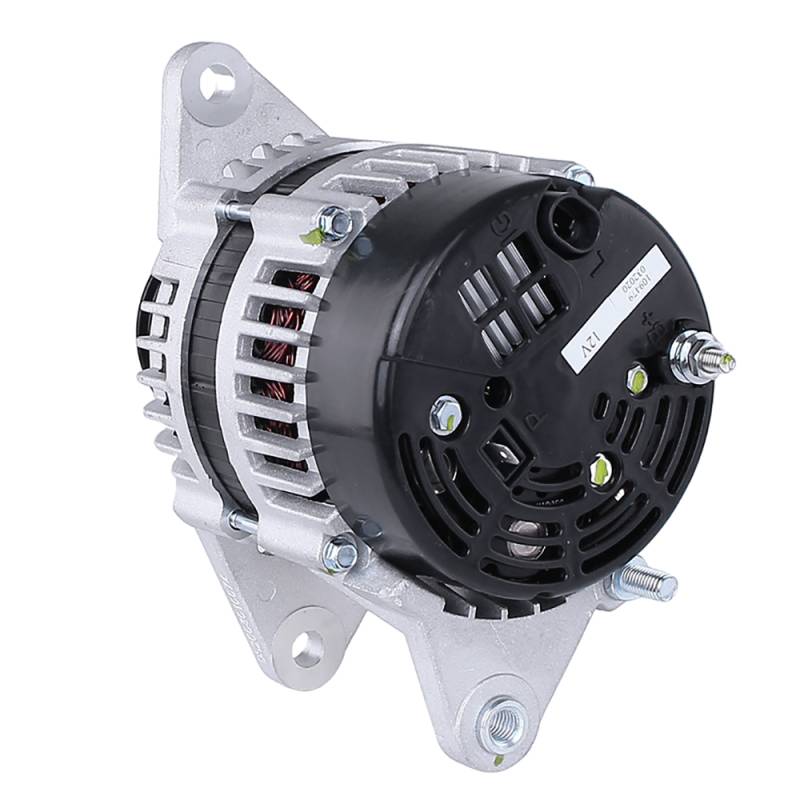

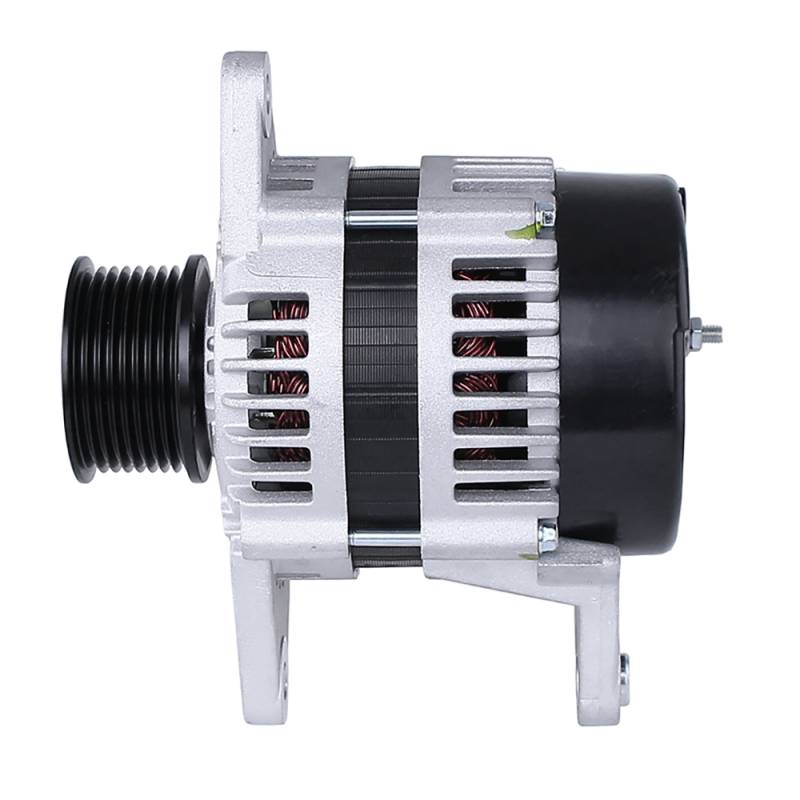

70 Amp Alternator — Cummins ISF2.8 QSF2.8 Diesel Light Commercial Vehicles
New 70-amp alternator for Cummins ISF2.8 and QSF2.8 turbodiesel engines. Replaces 5332265, 5332265F, and 5302290. Fits GAZelle NEXT vans, buses, and trucks with 129-150HP diesel, Foton Aumark S light trucks, Toano minibuses, View CS2 vans, and Ollin trucks. Also fits QSF2.8-powered compact excavators, skid steers, loaders, telehandlers, forklifts, and portable generators. Internal regulator with 8-groove solid serpentine pulley, M6-1.0 B+ terminal.
