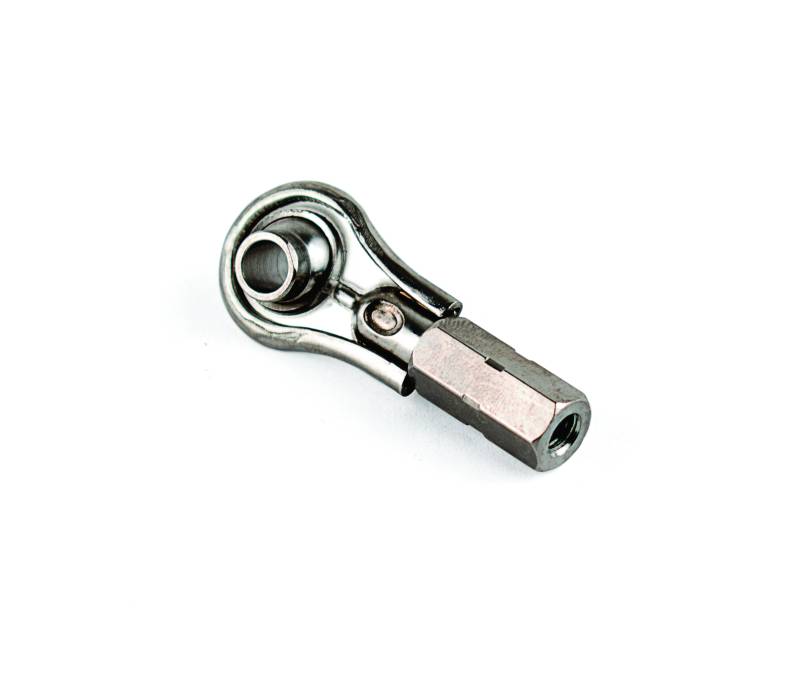

Vts Trim Rod Ball Joint Variable Trim System Compatible With

002-501A1
OEM Part Numbers

Sea-Doo / Bombardier:
277000918
277-000-918

Specifications

Type: VTS Trim Rod Ball Joint
System: Variable Trim System (VTS)
Position: Trim Rod to Steering Nozzle Bracket
Engine Compatibility: Rotax 947/951 (951cc)
Construction: Marine Grade Corrosion-Resistant Materials
Connector: OEM Style Direct Fit
Condition: New Aftermarket

Applications

Sea-Doo GSX LTD 951 (1997-1999)
Sea-Doo XP LTD 951 (1998-1999)
Sea-Doo XP 951 (2000-2002)
Sea-Doo XP DI 951 (2003-2004)

Replacement VTS Trim Rod Ball Joint for Sea-Doo Watercraft

This aftermarket VTS trim rod ball joint provides a precision-engineered replacement for Sea-Doo personal watercraft equipped with the Variable Trim System across the 1997 through 2004 model years. The VTS system enables the rider to electronically adjust the jet pump nozzle trim angle for optimal handling in varying water conditions. This ball joint functions as the primary articulation point between the VTS actuator rod and the steering nozzle bracket, allowing smooth angular movement as the trim position changes. Worn or corroded ball joints in the VTS linkage can result in sloppy trim response, unwanted movement of the nozzle under acceleration, and difficulty maintaining a consistent riding attitude. Built to match OEM dimensional specifications, this replacement ball joint features precision-machined components and durable construction materials rated for continuous marine use. Installation is straightforward using standard hand tools, and the ball joint threads directly onto the existing trim rod without any modifications to the VTS mechanism or hull components. This ball joint fits all Sea-Doo 951cc Rotax-powered models including carbureted and Direct Injection variants across the GSX LTD, XP LTD, XP, and XP DI platforms.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $75.81
Sale: $43.32
Save: 43%
Save: $32.49
Qty:
Free Shipping!

Description

Applications

Sea-Doo GSX LTD 951 1997-1999
Rotax 947 951cc 2-Cylinder 2-Stroke 130HP

Sea-Doo XP LTD 951 1998-1999
Rotax 947 951cc 2-Cylinder 2-Stroke 130HP

Sea-Doo XP 951 2000-2002
Rotax 947 951cc 2-Cylinder 2-Stroke 130HP

Sea-Doo XP DI 951 2003-2004
Rotax 947 DI 951cc 2-Cylinder 2-Stroke Direct Injection 130HP

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.9 lbs.
  • W3.0000” x H0.5000” x L5.0000”
  • Free Shipping!
