CROSS-REFERENCE PART NUMBERS:
• White Rodgers: 120-901, 120-105751, 120-105751-6, 120-901S1, 120-107112
• Sure Power: 330028
• Fisher: 5794, 5794K-1
• Western: 56131, 56131-2, 56131K-2, 25634
• Curtis: 1TBP61A, 1TBP61
• Blizzard: B80051
• Buyers/SAM: 1304648, 1306317
• Case IH: 9601073
• New Holland: 87671629
• Cummins: 3916301, 3916302
• Other: 6C017
SPECIFICATIONS:

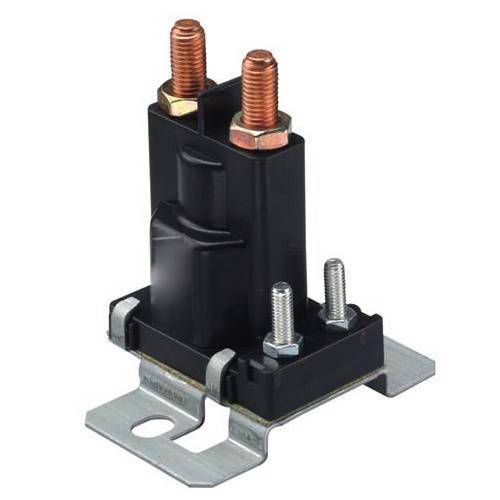

• Type: DC Power Contactor (White Rodgers Type 120)
• Voltage: 12V DC
• Continuous Amps: 100A
• Inrush/Surge Amps: 400A
• Contact Form: SPST Normally Open
• Coil: Isolated (4-Terminal)
• Duty Cycle: Continuous
• Contact Material: Silver Alloy
• Case Material: Plastic (UL94-V0)
• Mounting: Flat 180 (Standard Bracket)
• Contact Terminals: 5/16"-24 Studs
• Coil Terminals: #10-32
• Operating Temp: -20°F to +120°F (Continuous)
• Dielectric Strength: 500V
• Mechanical Life: 100,000 Cycles
• Electrical Life: 50,000 Cycles
• Water Resistant: Yes
• Hardware: Included
• Condition: New
APPLICATION:
• Fisher/Western/Boss Snow Plows - Motor Relay
• RV/Motorhome Battery Isolator
• Case IH / New Holland Agricultural Equipment
• Cummins Engine Applications
• Industrial Battery Disconnect
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
