OEM PART NUMBERS:
• Cummins: 5362253 (current — EPA07 HPI 15L ISX/QSX)
• Cummins: 4935092 (superseded by 5362253 — CM870/CM871)
• Cummins: 4088507 (superseded by 4935092 — early ISX)
• Cummins: P76918 (cross-reference — ISX/QSX/ISZ/QSZ)
• Cross-Reference: 700655AT
SPECIFICATIONS:

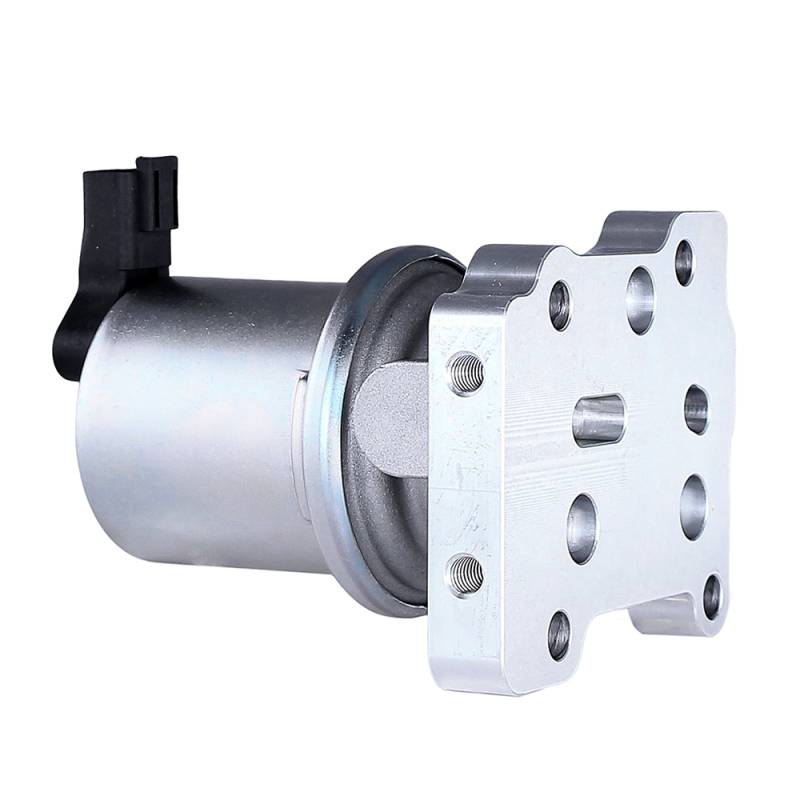

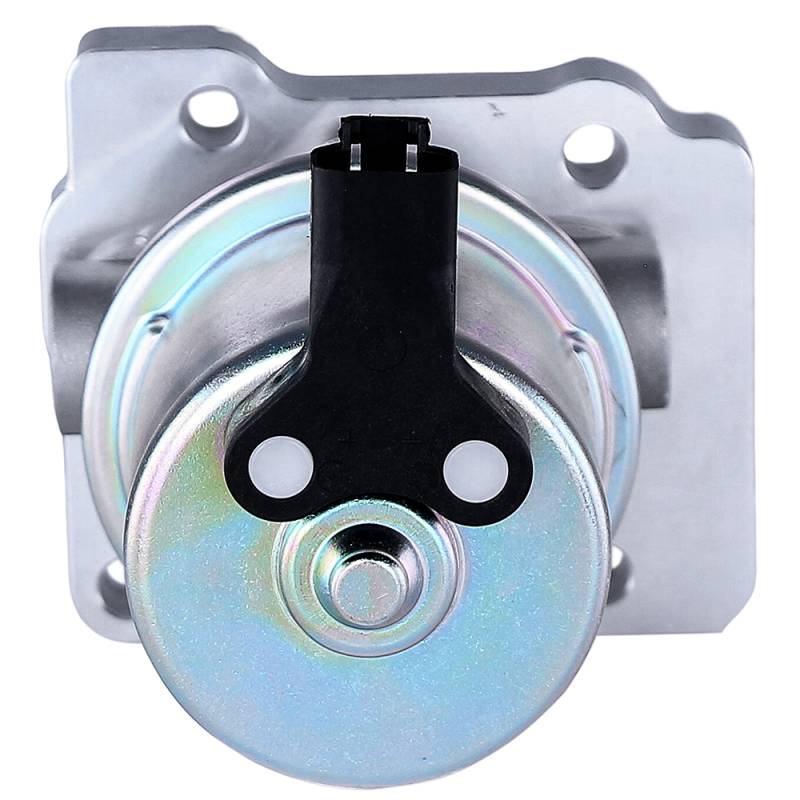

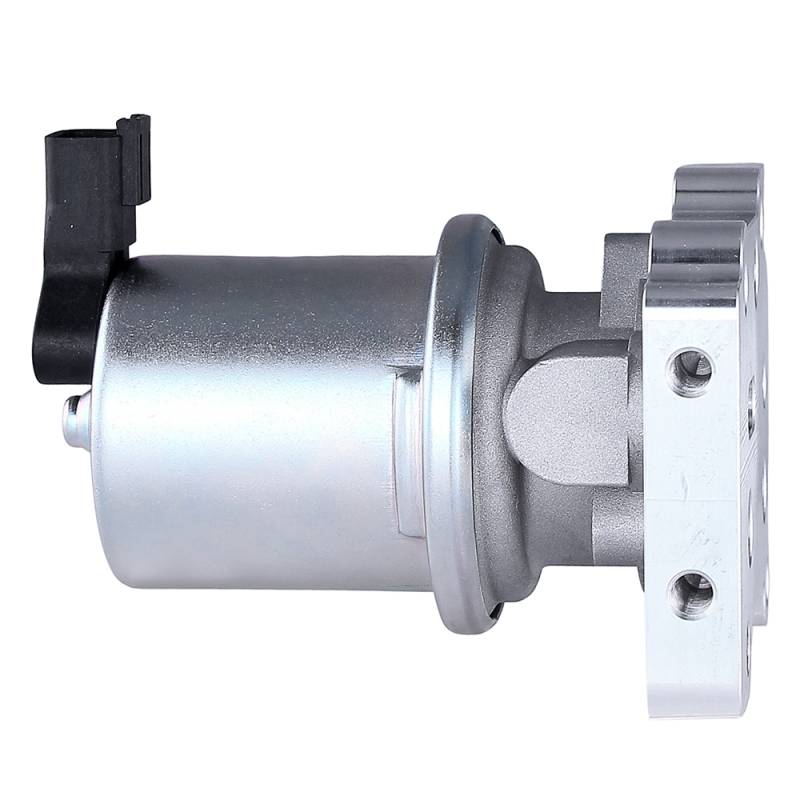

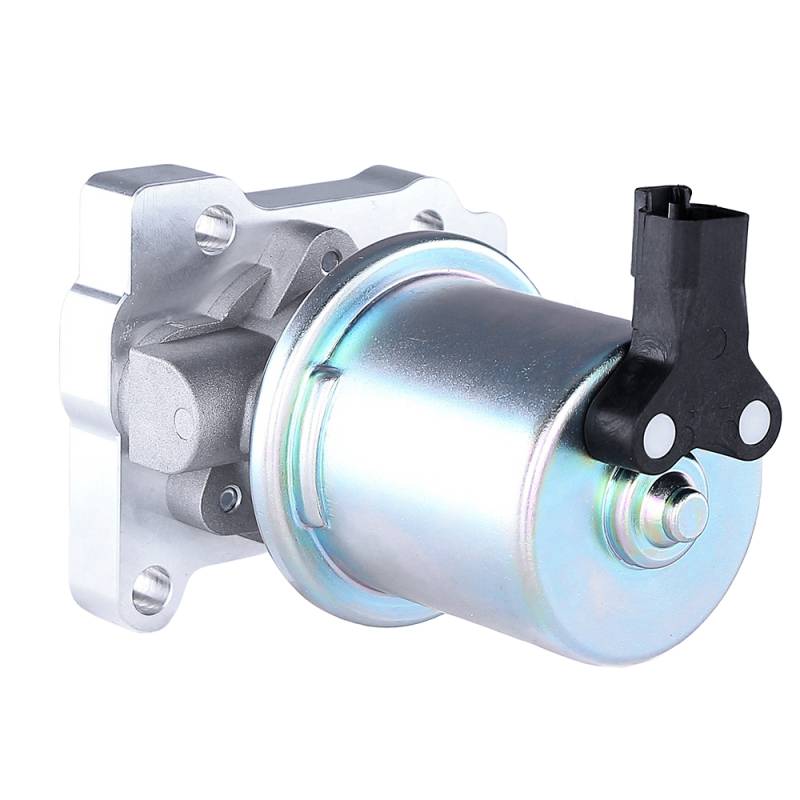

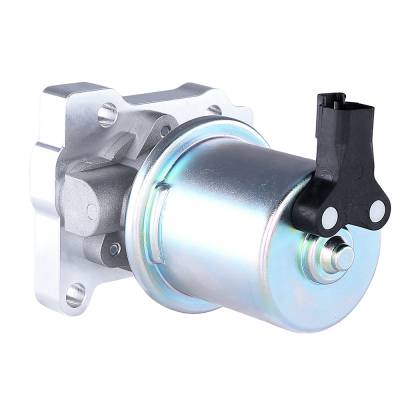

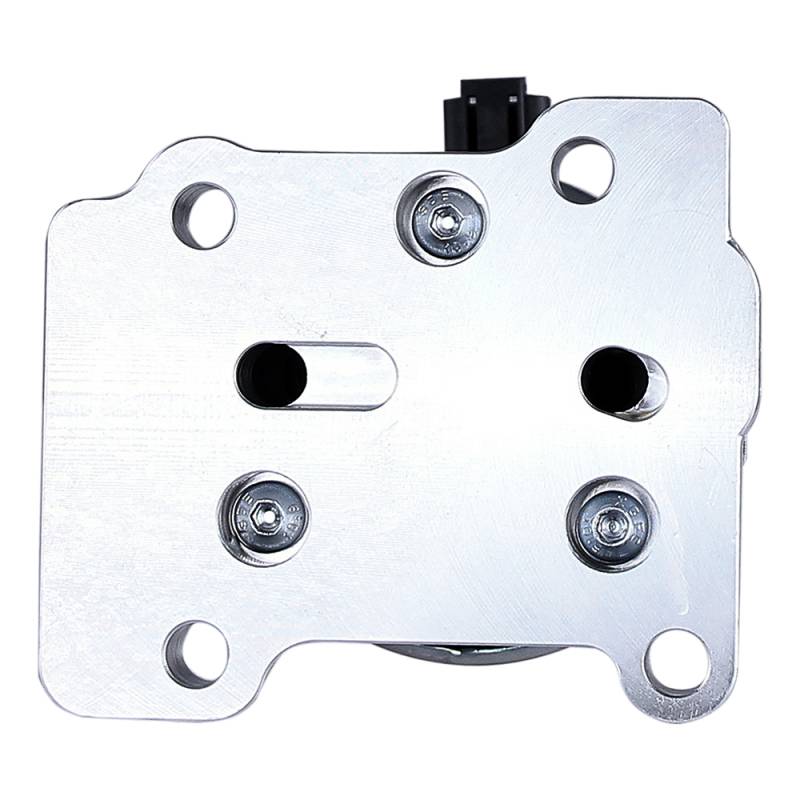

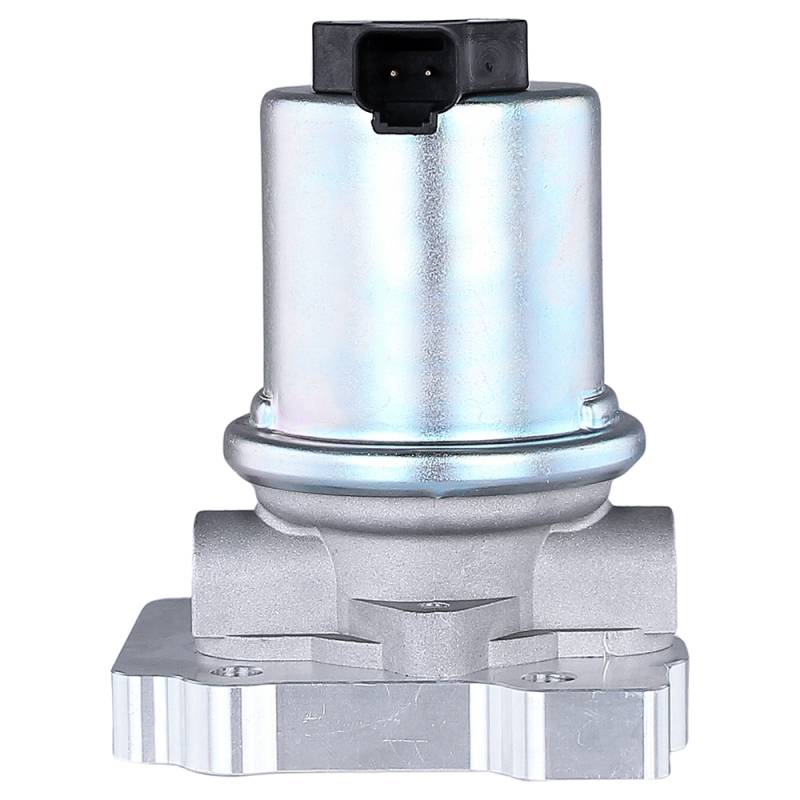

• Type: 12V Electric Fuel Transfer Pump (HPI Fuel System)
• Voltage: 12V DC
• Operating Pressure: 70 kPa
• Flow Rate: 250 L/H
• Current Draw: 8.5A
• Sealing Pressure: 110-145 kPa
• Connector Type: NPT / BSPP
• Mounting: Flange Mount
• Fuel Type: Diesel
• Operation: Automatic
• Material: Metal and Plastic
• Condition: New
APPLICATIONS:
• Cummins ISX CM870/CM871 15L Diesel (2002-2010)
• Cummins ISX15 / X15 15L Diesel (2010-Present)
• Cummins QSX15 15L Industrial/Marine Diesel
• Cummins QSX11.9 / ISZ13 / QSZ13
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
