DENSO PART NUMBERS: • 428000-2540, 4280002540
• 428000-3570, 4280003570
PERKINS / IHI SHIBAURA / KIOTI PART NUMBERS: • Perkins 185086680, 18508-6680
• Ishikawajima (IHI) 825083
• Kioti / Perkins 185086670, 18508-6670
LUCAS PART NUMBERS: • LRS03810, LRS3810

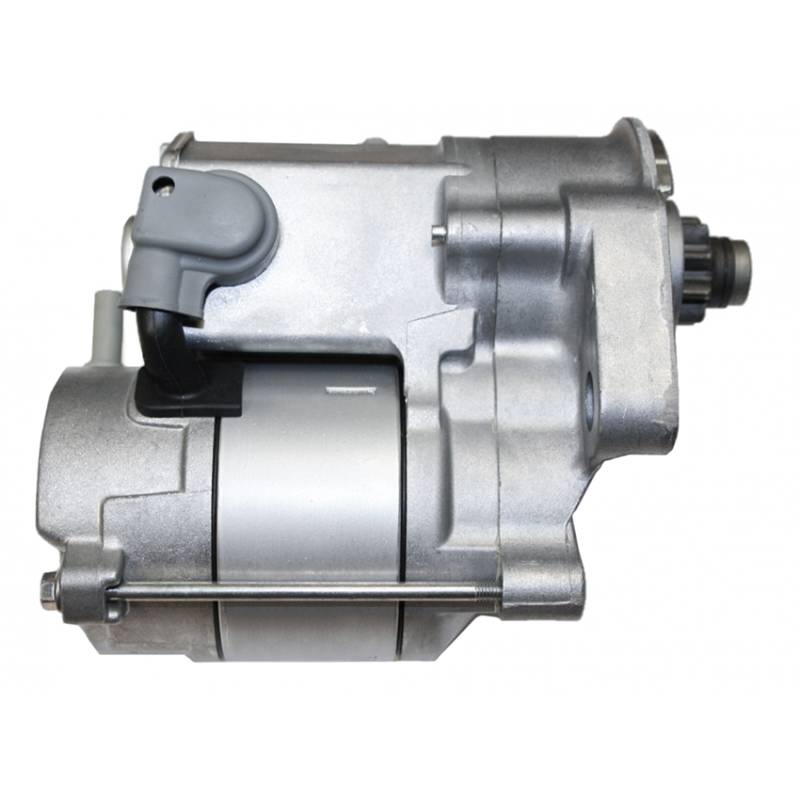

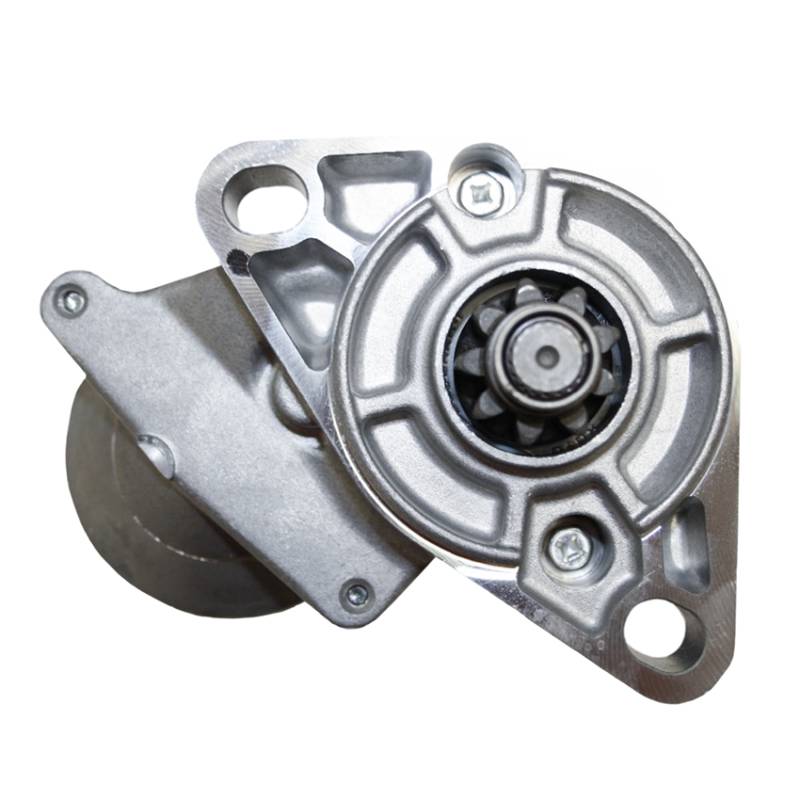

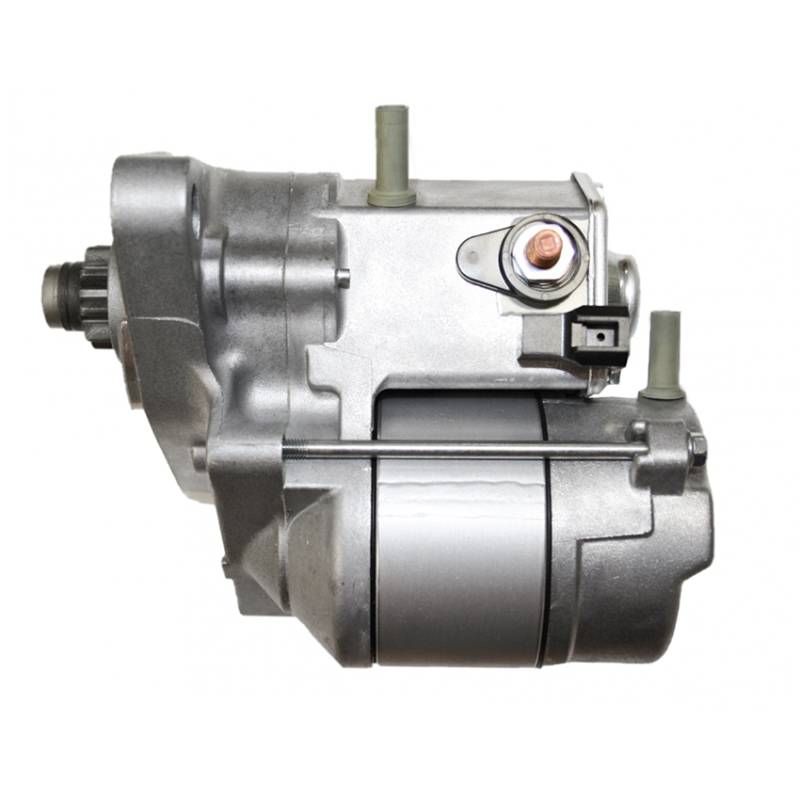

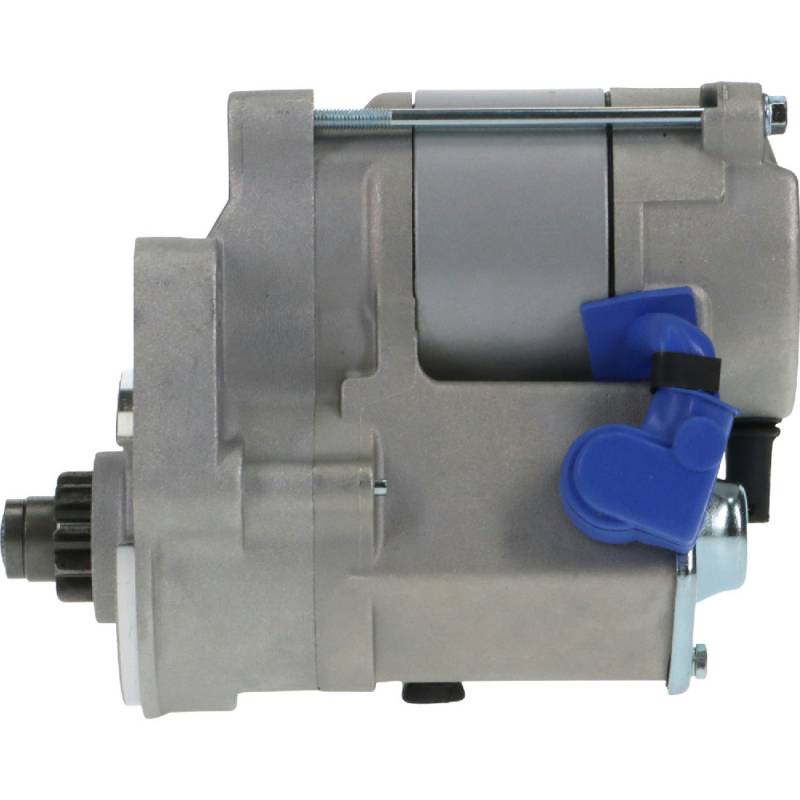

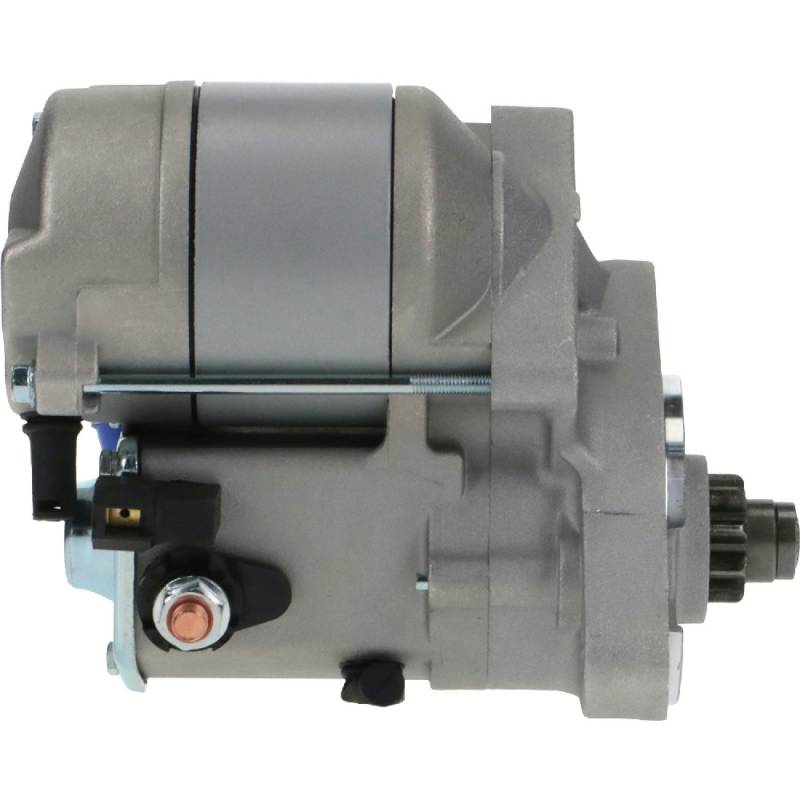

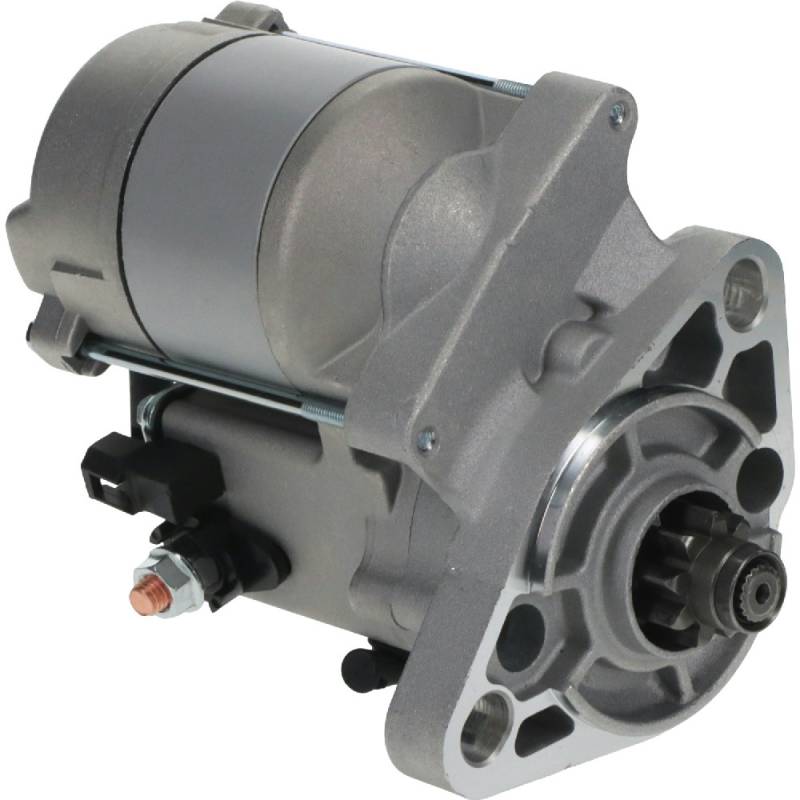

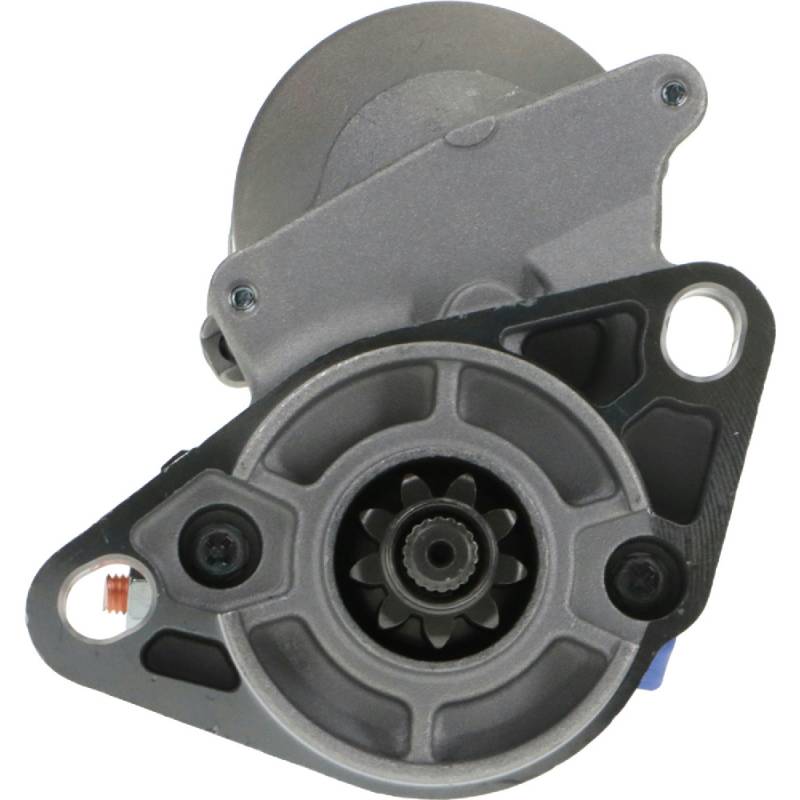

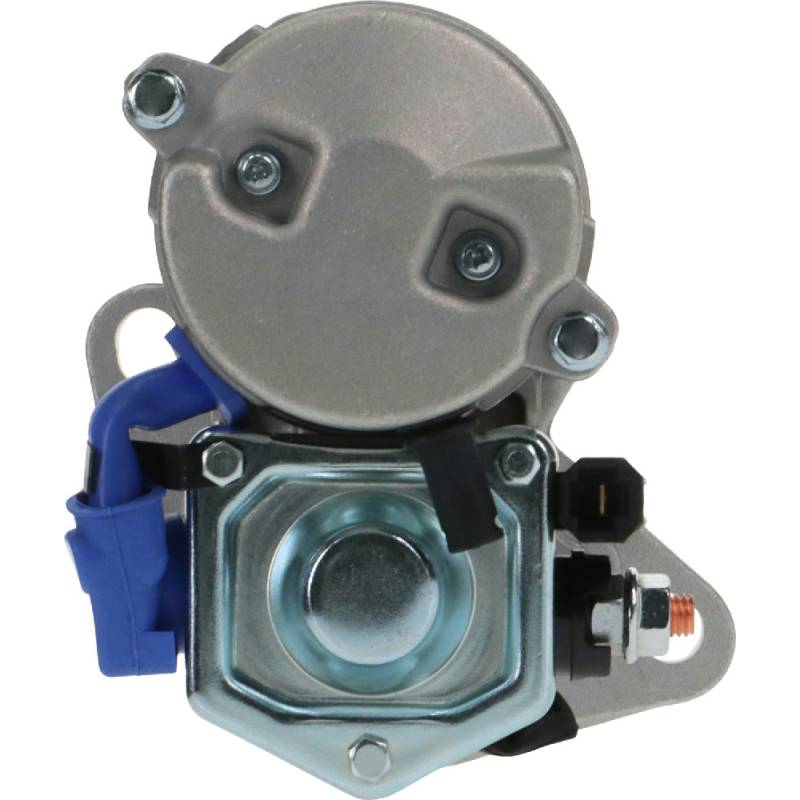

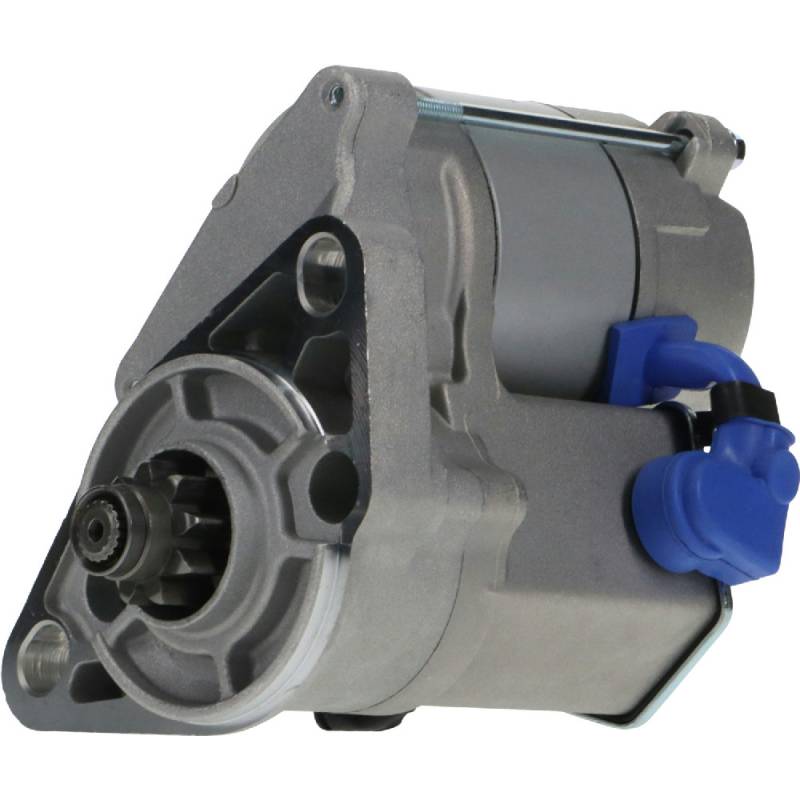

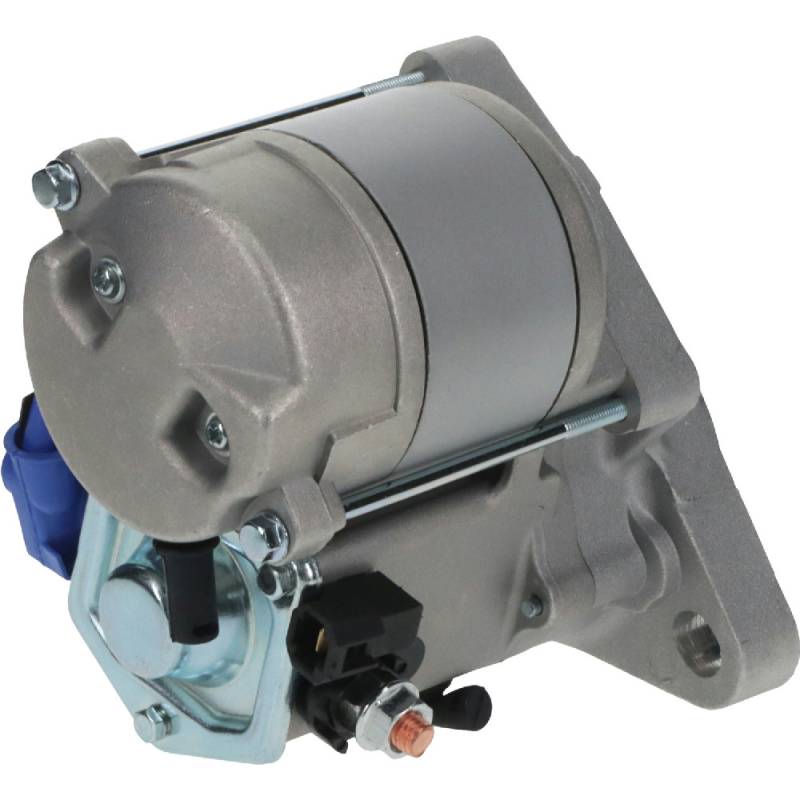

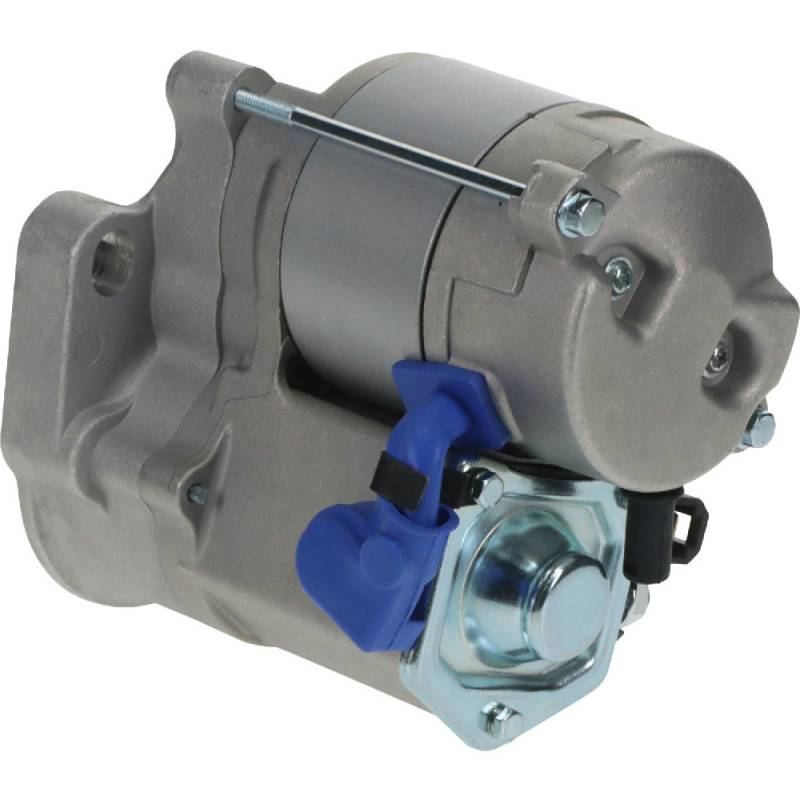

SPECIFICATIONS: • Type: Denso offset gear reduction (OSGR)
• Voltage: 12 Volt
• Power: 1.4 kW (1.88 HP)
• Rotation: Clockwise (CW)
• Pinion: 9 teeth, 28.4 mm (1.118 in) OD
• Length: 156.2 mm (6.15 in)
• Registry: 74 mm (2.913 in)
• Mounting ears: 16 x 11 mm slotted, 14 x 11 mm slotted
• Solenoid position: +50 degrees
• Terminals: M8 battery and motor studs, spade S terminal inside plug
• Weight: 8.66 lbs (3.94 kg)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
