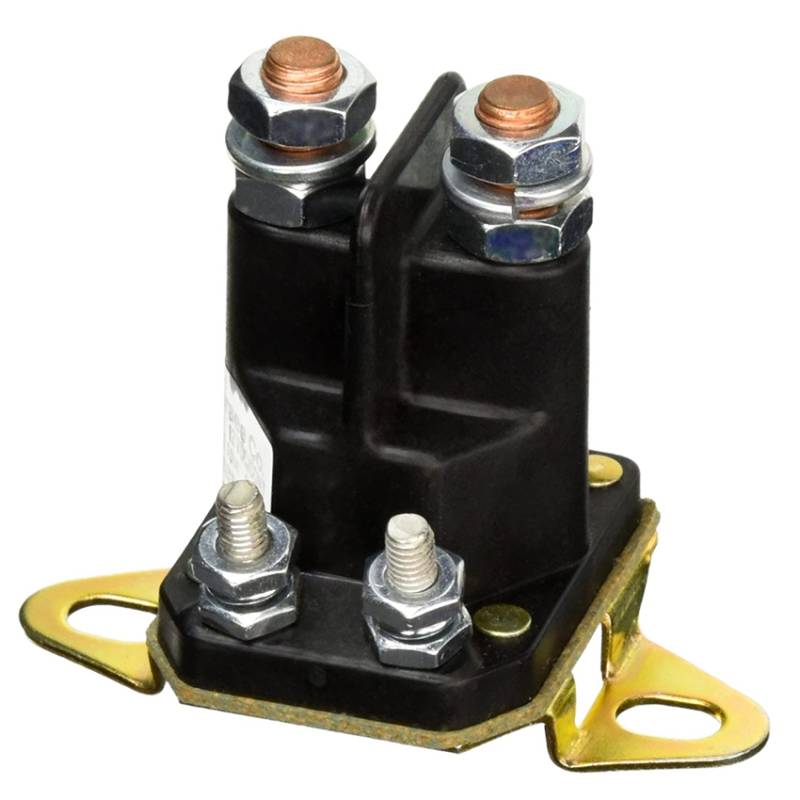

New Starter Solenoid Compatible With Cole Hersee 24612-Bx 12V 100A Continuous Duty Spst 4-Terminal

(0) Reviews: Write first review
24612-BXA1
COLE HERSEE OEM PART NUMBERS (SOURCE):
• Cole Hersee: 24612 (Source Base Model)
• Cole Hersee: 24612-BX (Source Primary - Boxed Variant)

RELATED COLE HERSEE VARIANTS (Research):
• Cole Hersee: 24612BX (No-Dash Variant)
• Cole Hersee: 24612-10 (Unboxed Variant)
• Cole Hersee: 24612-10-BX (Unboxed Boxed)
• Item Reference: 24612-BX

SPECIFICATIONS:
• Product Type: Starter Solenoid Relay (12V Continuous Duty SPST)
• Unit Type: Cole Hersee OEM Design
• Voltage: 12V DC (14V Max Operating)
• Circuitry: SPST / Normally Open
• Continuous Amps: 100 A
• Surge/Inrush Amps: 400 A
• Inrush Duty: 5 sec ON / 5 min OFF (max 20 sec ON)
• Duty Cycle: CONTINUOUS
• Number of Terminals: 4
• Contact Material: SILVER
• Contact Stud: Copper 5/16"-24 Thread
• Coil Stud: Steel 10-32 Thread
• Case Material: Plastic (Glass-Filled Nylon)
• Mounting Style: Flat 180 (F180) L/F-Type Metal Bracket
• Mounting Holes: 5/16" x 19/32" on 2-13/64" Centers
• Hardware: Hex Nuts and Lock Washers Included
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Mexico (MX)
• Source: OEM Cole Hersee Design
• Recommended Use: OE Replacement for Cole Hersee 12V Starter Solenoid Relays
• Product Fit: Direct Fit for Small Engine Starter Applications

EQUIPMENT APPLICATIONS SUMMARY:
• Lawn Tractor Starter Solenoid Applications (Primary)
• Golf Cart Starter Solenoid Applications (Primary)
• Sweeper Starter Solenoid Applications (Primary)
• Small Engine Vehicle Starter Circuits
• ATV / UTV / Side-by-Side 12V Starter Circuits
• Commercial Turf Equipment Starter Solenoids
• Marine 12V Starter Applications
• Generator Starter Circuits (Small Gen Sets)
• 12V DC Heavy-Duty Switching with 400A Surge Capability

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $146.69
Sale: $82.83
Save: 44%
Save: $63.86
Qty:
Free Shipping!

Description

PRIMARY APPLICATION DESCRIPTION:
• This item fits various applications by part number
• Please check your part number to ensure fitment

EQUIPMENT APPLICATIONS (RESEARCH-CONFIRMED per Littelfuse):
• Lawn Tractor Lawn Tractor Starter Solenoid (Primary Application)
• Golf Cart Golf Cart Starter Solenoid (Primary Application)
• Sweeper Street Sweeper / Floor Sweeper Starter (Primary Application)
• Small Engine Small Engine Vehicle Starter Circuits
• Recreational ATV / UTV / Side-by-Side 12V Starter
• Commercial Commercial Turf Equipment Starter
• Agricultural Small Agricultural Equipment 12V
• Marine Marine 12V Starter Applications
• Truck Trucks and Buses 12V Starter
• Construction Small Construction Equipment 12V
• Material Handling Material Handling Equipment (Forklifts, etc.)
• Generator Generator Starter Circuits (Small Gen Sets)
• Industrial Industrial Small Engine Applications

FUNCTIONAL USES:
• Starter Solenoid Relay (PRIMARY - small engine starter cranking)
• High-Current Starter Motor Circuit Control
• Battery to Starter Motor Bridge Circuit
• Continuous Power Switching (also rated continuous duty)
• Winch Solenoid (Heavy-Duty 12V Winches)
• Electric Motor Control (High-Inrush Loads)
• Battery Disconnect / Master Switch
• Auxiliary Equipment High-Current Control
• Heavy-Duty 12V Load Switching (High Inrush/Surge)

SOLENOID OPERATIONAL CHARACTERISTICS:
• Circuitry: SPST (Single Pole, Single Throw)
• Normal Position: Normally Open (NO)
• Operation: Energized to Close Contacts
• De-energized: Contacts Open (Circuit Disconnected)
• Duty Cycle: CONTINUOUS (for sustained power switching)
• Inrush Capability: 400A Surge for 5 sec ON / 5 min OFF (max 20 sec ON)
• Coil: 12V Insulated / 14V Maximum Operating Voltage
• Contacts: Silver (High-Cycle Durability / Lower Erosion)
• Housing: Plastic (Glass-Filled Nylon)
• Bracket: L-Style / F-Type Metal Bracket
• Mounting: Flat 180 (F180) with Hex Nuts and Lock Washers Included

SILVER CONTACT ADVANTAGE:
• Silver Contacts Provide Higher Switching Cycle Endurance than Copper
• Better Performance for Starter Cranking High-Inrush Applications
• Lower Contact Erosion Over Repeated High-Current Cycling
• Ideal for Frequent Start/Stop Applications (Lawn Tractors, Golf Carts)
• Superior Performance at 400A Surge Current Rating

SOLENOID SPECIFICATIONS:
• Product Type: Starter Solenoid Relay (12V 100A Continuous)
• Unit Type: Cole Hersee OEM Design
• Voltage: 12V DC Coil / 14V Max Operating
• Circuitry: SPST / Normally Open
• Continuous Amps: 100 A
• Surge Amps: 400 A (Inrush)
• Inrush Cycle: 5 sec ON / 5 min OFF (max 20 sec ON)
• Duty Cycle: CONTINUOUS
• Number of Terminals: 4
• Contact Material: SILVER
• Contact Stud Material: Copper 5/16"-24 Thread
• Coil Stud Material: Steel 10-32 Thread
• Case Material: Plastic (Glass-Filled Nylon)
• Mounting Style: Flat 180 (F180) L/F-Type Bracket
• Mounting Holes: 5/16" x 19/32" on 2-13/64" Centers
• Hardware: Hex Nuts and Lock Washers Included
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Mexico (MX)
