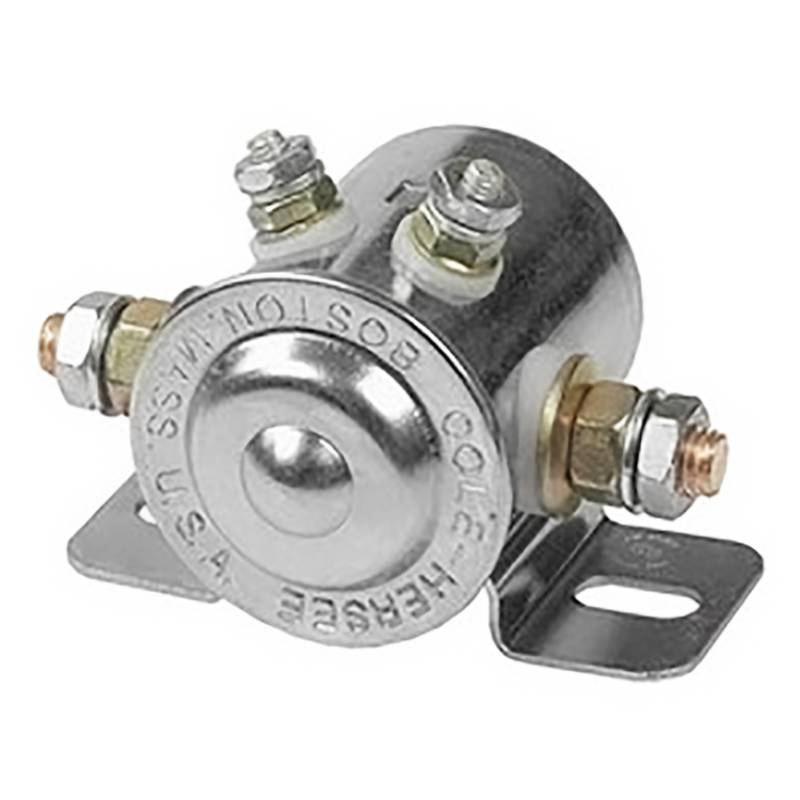

New 6V Continuous Duty Solenoid Compatible With Cole Hersee 24097-Bx Prestolite 15-144 4-Terminal

(0) Reviews: Write first review
24097-BXA1
COLE HERSEE OEM PART NUMBERS (SOURCE):
• Cole Hersee: 24097 (Source Base Model)
• Cole Hersee: 24097-BX (Source Primary)
• Cole Hersee: 24097BX (No-Hyphen Format Variant)

PRESTOLITE OEM PART NUMBERS (SOURCE):
• Prestolite: 15-144 (Source Primary)
• Prestolite: 15144 (Source No-Dash Variant)

ADDITIONAL OEM CROSS-REFERENCES (RESEARCH):
• Prestolite: SAS4601
• Prestolite: 15-5
• Johnson Electric: 5117040
• Johnson Electric: SO51170
• Item Reference: 24097-BX

SPECIFICATIONS:
• Product Type: Solenoid (6V Continuous Duty SPST)
• Unit Type: Cole Hersee OEM Design
• Voltage: 6V DC (VINTAGE/CLASSIC Systems - NOT 12V or 24V)
• Circuitry: SPST / Normally Open
• Continuous Amps: 85 A
• Duty Cycle: CONTINUOUS
• Coil Winding Resistance: 2.5-3.5 Ohms
• Nominal Coil Resistance: 4.2 Ohms (Cole Hersee reference)
• Number of Terminals: 4
• Contact Material: Copper
• Case Material: METAL (Steel Housing)
• Mounting Style: Flat 180 (F180)
• Base: Insulated Base
• 4-Stud Design
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Taiwan (TW)
• Source: OEM Cole Hersee Design
• Recommended Use: OE Replacement for Cole Hersee 6V Continuous Duty Solenoids
• Product Fit: Direct Fit for 6V Vintage/Classic Applications

EQUIPMENT APPLICATIONS SUMMARY:
• Vintage/Classic Automobiles (Pre-1956 6V Electrical Systems)
• Vintage Farm Tractors (Ford 8N/9N/NAA, Farmall A/B/C/H/M)
• Classic Car Restoration Projects
• Antique Equipment Restoration
• Classic Boats and Marine 6V Applications
• Vintage Industrial Equipment (6V)
• Specialty 6V Golf Carts
• Vintage John Deere / Case Tractors (Pre-1956)
• Period-Authentic 6V Electrical System Replacement
• 6V DC Electrical Systems (NOT 12V or 24V)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $44.92
Sale: $25.67
Save: 43%
Save: $19.25
Qty:
Free Shipping!

Description

PRIMARY APPLICATION DESCRIPTION:
• This item fits various applications by part number
• Please check your part number to ensure fitment
• 6V system only (vintage/classic equipment - NOT modern 12V or 24V)

EQUIPMENT APPLICATIONS (RESEARCH-ADDED CONTEXT):
• Vintage Vintage/Classic Automobiles (Pre-1956 6V Electrical Systems)
• Ford Ford 8N / 9N / NAA / 2N Vintage Farm Tractors (6V)
• Farmall Farmall A / B / C / H / M / Super Series Vintage Tractors (6V)
• John Deere John Deere Vintage Tractors (6V Pre-1956)
• Case Case Vintage Farm Tractors (6V Pre-1956)
• Classic Classic Automobile Restoration Projects
• Antique Antique Equipment Restoration
• Marine Classic Boats and Marine 6V Applications
• Vintage Vintage Industrial Equipment (6V)
• Golf Cart Specialty 6V Golf Carts
• Tractor Classic Tractor Restoration Market
• Auto Classic Automobile Restoration Market

FUNCTIONAL USES:
• Continuous Power Switching (6V Systems)
• Battery Disconnect / Master Switch (Vintage Equipment)
• Auxiliary Equipment Continuous Power Control
• Starter Solenoid Circuits (6V Applications)
• Winch Solenoid (6V Vintage/Antique Winches)
• Lighting Circuit Control (Vintage 6V)
• Restoration Projects (Authentic 6V Replacement)

VINTAGE/CLASSIC EQUIPMENT CONTEXT:
• 6V electrical systems were standard prior to 1956
• Found in vintage automobiles, farm tractors, boats, industrial equipment
• Popular for classic car/tractor restoration projects
• Original equipment replacement for period-authentic repairs
• Most common in pre-1956 American-built vehicles and machinery

SOLENOID OPERATIONAL CHARACTERISTICS:
• Circuitry: SPST (Single Pole, Single Throw)
• Normal Position: Normally Open (NO)
• Operation: Energized to Close Contacts
• De-energized: Contacts Open (Circuit Disconnected)
• Duty Cycle: CONTINUOUS (for sustained power switching)
• Coil Winding: 2.5-3.5 Ohms (per source specifications)
• Nominal Coil Resistance: 4.2 Ohms (Cole Hersee reference)
• Insulated Base: Studs Electrically Isolated from Housing
• Housing: Steel (Plated Steel - Metal Construction)
• Mounting: Flat 180 (F180) Flat Bracket Style

SOLENOID SPECIFICATIONS:
• Product Type: Solenoid (6V Continuous Duty SPST)
• Unit Type: Cole Hersee OEM Design
• Voltage: 6V DC (VINTAGE/CLASSIC Systems)
• Circuitry: SPST / Normally Open
• Continuous Amps: 85 A
• Duty Cycle: CONTINUOUS
• Coil Winding Resistance: 2.5-3.5 Ohms
• Number of Terminals: 4
• Contact Material: Copper
• Case Material: METAL (Steel Housing)
• Mounting Style: Flat 180 (F180)
• Base: Insulated Base
• 4-Stud Design
• Quantity: 1 Unit
• Condition: New
• Country of Origin: Taiwan (TW) / US
