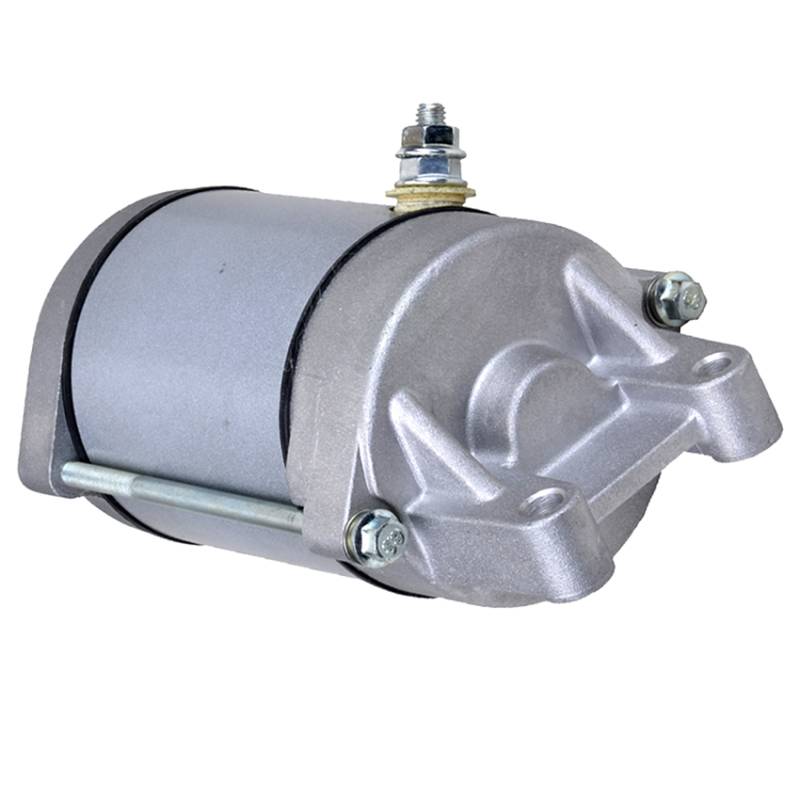

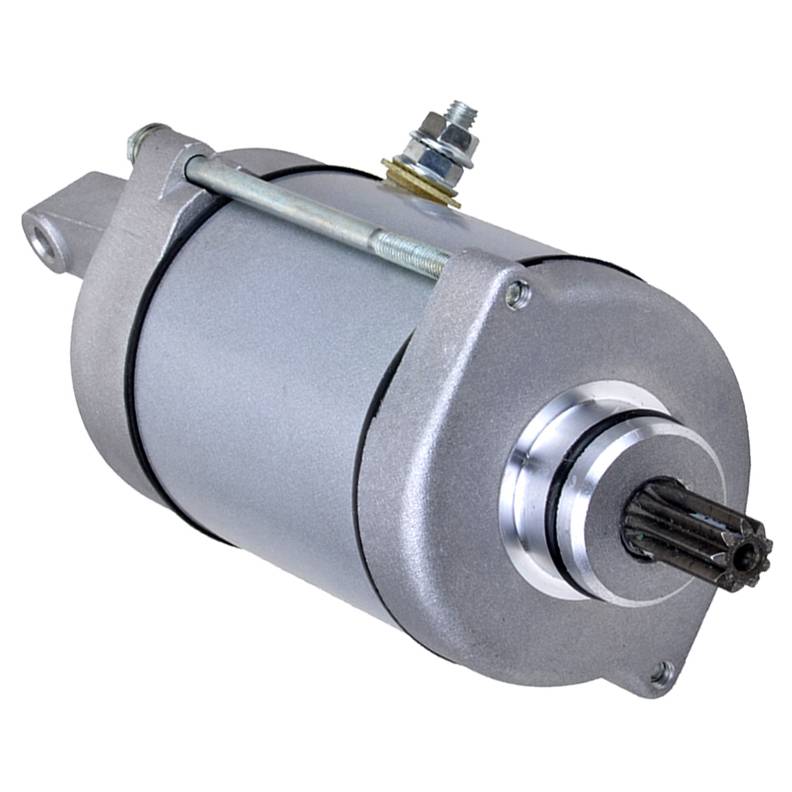

1312Cc 1795Cc V-Twin Starter Motor 12V 9 Tooth Cw Compatible With 2003-2009 Honda Vtx1300 Vtx1800c

18677N*2
OEM PART NUMBERS:
• 31200-MEA-671 (31200MEA671)
• 31200-MEM-671 (31200MEM671)

SPECIFICATIONS:
• Voltage: 12V
• Rotation: CW (Clockwise)
• Teeth: 9 (Spline)
• Type: PMDD (Permanent Magnet Direct Drive)
• Gear OD: 0.461 Inch (11.7mm)
• Mounting Ear 1: 6.3mm Unthreaded
• Mounting Ear 2: 7.3mm Unthreaded
• Weight: 4.06 lbs (1.85 kg)

FITS MODELS:
• VTX1300C 1312cc - 2004-2009
• VTX1300R 1312cc (Retro) - 2005-2009
• VTX1300S 1312cc - 2003-2007
• VTX1300T 1312cc (Tourer) - 2008-2009
• VTX1800C 1795cc - 2008

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $147.35
Sale: $84.20
Save: 43%
Save: $63.15
Qty:
Free Shipping!

Description

VTX1300 SERIES (1312cc V-Twin):

VTX1300C:
• VTX1300C 1312cc Street Motorcycle - 2004, 2005, 2006, 2007, 2008, 2009

VTX1300R (Retro):
• VTX1300R 1312cc Street Motorcycle - 2005, 2006, 2007, 2008, 2009

VTX1300S:
• VTX1300S 1312cc Street Motorcycle - 2003, 2004, 2005, 2006, 2007

VTX1300T (Tourer):
• VTX1300T 1312cc Street Motorcycle - 2008, 2009

VTX1800 SERIES (1795cc V-Twin):

VTX1800C:
• VTX1800C 1795cc Street Motorcycle - 2008

ENGINE DETAILS:
• Configuration: 52-Degree Liquid-Cooled V-Twin
• VTX1300: 1312cc (80.1 cu in) SOHC
• VTX1800: 1795cc (109.5 cu in) SOHC
• Starter Type: Mitsuba PMDD
• Drive: 9-Tooth Spline Gear

NOTE:
• Verify OEM part number before ordering
• This starter fits VTX1300 all variants (C, R, S, T) and VTX1800C 2008 only
