OEM PART NUMBERS:
• Subaru: QDEX17
SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 14
• Gear OD: 1.181 in / 30mm
• Overall Length: 6.315 in / 160.4mm
• Mounting: 3 Ears (2x 6.4mm Unthreaded, 1x M6x1.00 Threaded)
• Mounting Ear Center to Center: 1.898 in / 48.2mm
• Registry OD: 2.362 in / 60mm
• Weight: 3.5 lbs / 1.59 kg
• Condition: New
APPLICATION:
• Subaru 212cc (EX21 Series) 4-Stroke OHC Small Engines
• Snowblowers, Generators, Pressure Washers, Outdoor Power Equipment
• Fits various applications by part number — verify QDEX17 matches original unit

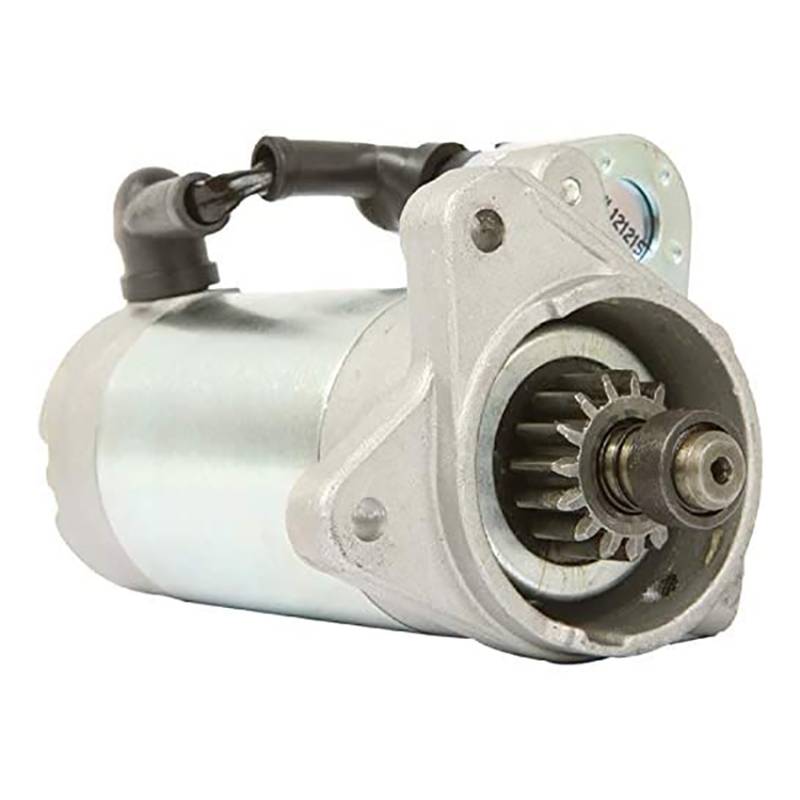

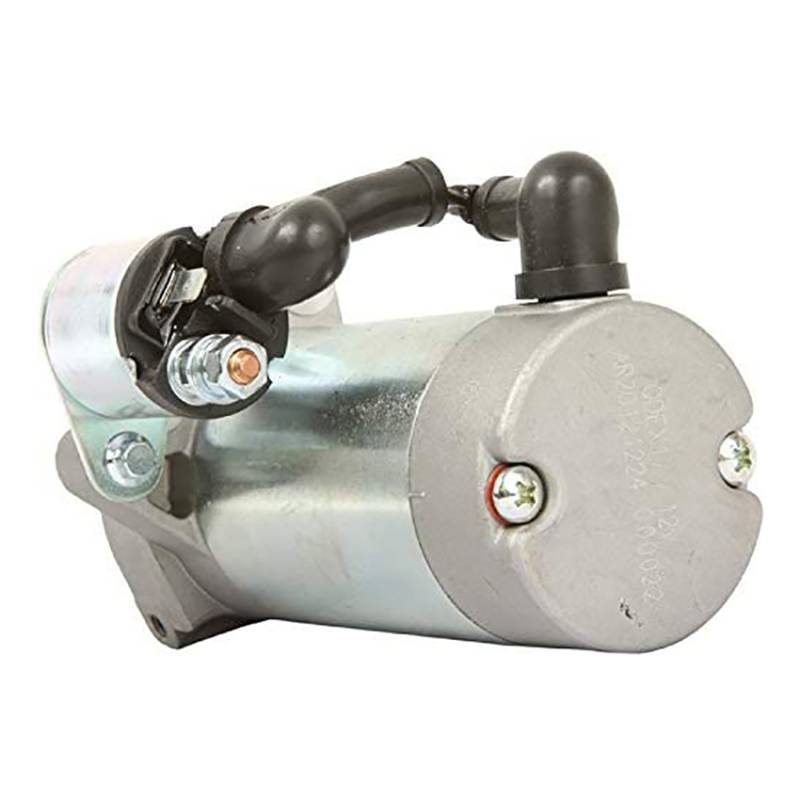

12V Starter Motor — Subaru 212cc Small Engine EX21 Snowblower
Replacement 12-volt starter motor for Subaru 212cc small engines. This PMDD starter is designed for the EX21 series single-cylinder 4-stroke OHC engine that produces approximately 7 horsepower. The permanent magnet construction eliminates field windings for a lighter and more efficient starter that draws less current from the battery. Counterclockwise rotation with a 14-tooth pinion and 1.181-inch gear OD engages the flywheel ring gear for reliable cold-weather starting. Three mounting ears with two 6.4mm unthreaded holes and one M6x1.00 threaded hole provide a direct factory fit. Commonly found on snowblowers, generators, and pressure washers equipped with the Subaru 212cc engine. Replaces Subaru QDEX17.
