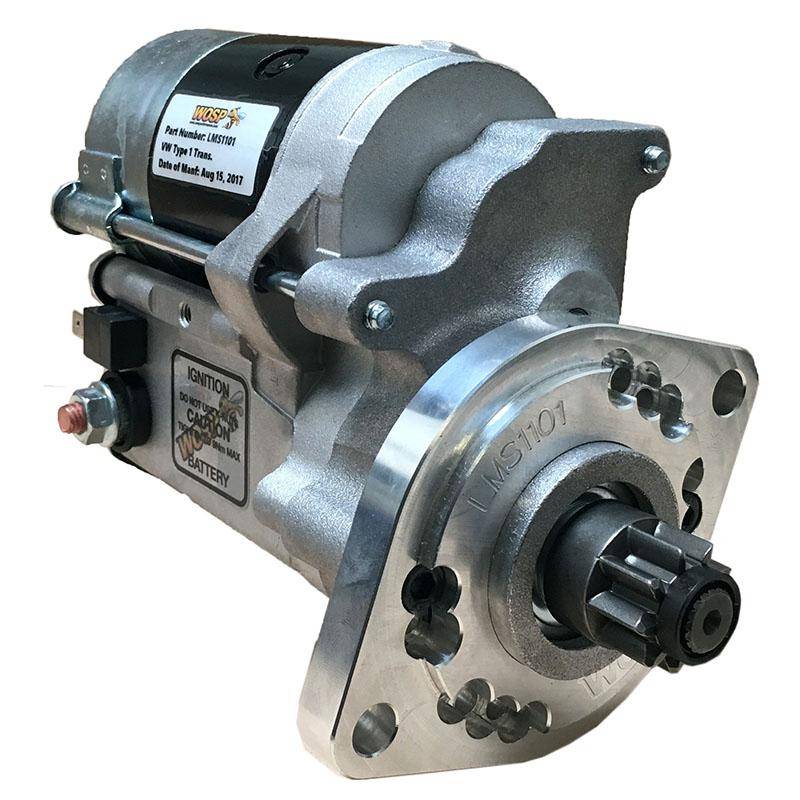

New Wosp Performance Starter Compatible With 1965-1976 Porsche 912 E Coupe 2-Door 914 6 911 Base 911

LMS1101B2
BOSCH PART NUMBERS:
• 0 001 108 137, 0001108137
• 0 001 203 003, 0001203003
• 0 001 312 100, 0001312100
• 0 001 312 110, 0001312110
• 0 001 110 047, 0001110047

LUCAS PART NUMBERS:
• LRS00133, LRS133
• LRS00287, LRS287
• LRS00244, LRS244
• LRS00246, LRS246
• LRS00562, LRS562
• LRS00659, LRS659

PORSCHE PART NUMBERS:
• 901.604.102.03, 901-604-102-03, 90160410203
• 916.604.101.00, 916-604-101-00, 91660410100
• 911.604.101.03, 911-604-101-03, 91160410103

SPECIFICATIONS:
• Type: High torque gear reduction starter, Denso type offset gear reduction (OSGR)
• Voltage: 12 Volt
• Power: 1.0 kW
• Pinion: 9 tooth, 25 mm gear OD
• Rotation: Counterclockwise (CCW)
• Ring gear: 130 tooth (12 volt flywheel)
• Terminals: on top, left hand (US style)
• Mounting: housing can be clocked 360 degrees on its axis
• Weight: about 7.9 lb (3.6 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $522.59
Sale: $298.62
Save: 43%
Save: $223.97
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 1.0 KW 9 TOOTH CCW HIGH TORQUE GEAR REDUCTION STARTER, NEW:
• 12 volt, 1.0 kW, Denso type offset gear reduction (OSGR), counterclockwise (CCW) rotation
• 9 tooth pinion, 25 mm gear OD, for the 130 tooth (12 volt) flywheel ring gear
• Terminals on top, left hand (US style) position; housing can be clocked 360 degrees on its axis
• About 7.9 lb (3.6 kg), lighter than the original direct drive starter
• VW: 12 volt cars with the 130 tooth ring gear (1967-on); 6 volt 109 tooth ring gear cars, including most 1961-1966 Beetles and Buses, take a different starter
• VW Transporter 1976-1979 with the 091 transaxle: confirm the starter mounting before ordering

VW BEETLE / KAEFER TYPE 1 (11, 111, 1B1):
• VW Beetle Type 1 1.2 petrol, engines AB, D, 1965-2003
• VW Beetle Type 1 1.3 petrol, engines AB, AC, ACD, F, 1965-2003
• VW Beetle 1457cc 1.5L H4, 1967-1969
• VW Beetle 1493cc 1.5L H4, engines H, E, 1967-1969
• VW Beetle 1584cc 1.6L H4, engines AD, AF, AJ, AR, AS, 1970-1979
• VW Beetle 1584cc 1.6L H4, engine AK, 1973
• VW Beetle Mexico 1.6 petrol, engine M52, to 2003
• VW Kaefer Type 1 1.2, 1.3, 1.5, 1.6 petrol, engines AB, ACD, AD, AJ, AS, AF, AR, E, H, F, D, M52, 1965-2003
• VW Beetle 1967-on with the 130 tooth ring gear

VW BEETLE 1300 / 1302 / 1303 / SUPER BEETLE:
• VW Beetle 1300 Type 1 (11) 1.3 petrol, engine AB, Fully Automatic, 1970-1973
• VW Beetle 1302 Type 1 (11) 1.3 / 1.6 petrol, engines AB, AD, 1970-1972
• VW 1302 Type 1 (11, 15) 1.2 / 1.3 / 1.6 petrol, engines AB, AC, AD, AF, D, Fully Automatic, 1970-1979
• VW Beetle 1303 Type 1 (11, 15) 1.6 petrol, engines AD, AJ, AS, 1971-1979
• VW 1303 Type 1 (11, 15) 1.6 petrol, engines AD, AJ, AS, Automatic, 1970-1979
• VW Super Beetle 1584cc 1.6L H4, 1971-1979
• VW Super Beetle Sedan 1584cc 1.6L H4, 1976
• VW Super Beetle Convertible 1584cc 1.6L H4, 1976-1977

VW KARMANN GHIA:
• VW Karmann Ghia 1457cc 1.5L H4, 1967-1969
• VW Karmann Ghia 1493cc 1.5L H4, engine H, 1967-1969
• VW Karmann Ghia 1584cc 1.6L H4, engines AD, AS, AF, AL, 1970-1974
• VW Karmann Ghia (141, 343, 345) 1.5 / 1.6 petrol, 1966-1974

VW TYPE 3 / 181 / TYPE 4:
• VW 1500 Type 3 (311, 313) 1.5 petrol, engine K, 1967-1973
• VW 1600 Type 3 (311, 313, 315, 317, 365, 367) 1.5 / 1.6 petrol, engines K, U, T, P, 1967-1973
• VW Type III 1.6L, 1967-1973
• VW Squareback 1584cc 1.6L H4, 1967-1973
• VW Fastback 1584cc 1.6L H4, 1967-1973
• VW 181 (Thing) 1.5 petrol, engine H, 1969-1970
• VW 411 Type 4 (41) 1.7 petrol, engines V, W, Z, 1968-1973
• VW 412 Type 4 (41, 42, 46) 1.7 / 1.8 petrol, engines W, AT, AN, 1972-1975

VW TRANSPORTER / TYPE II MINI BUS / CAMPMOBILE:
• VW Transporter / Type II Mini Bus 1.5L, 1457cc, 1493cc H4, 1961-1967 (130 tooth 12 volt flywheel required)
• VW Transporter / Type II Mini Bus 1584cc 1.6L H4, 1968-1975
• VW Transporter / Type II Mini Bus 1679cc 1.7L H4, 1972-1973
• VW Transporter / Type II Mini Bus 1795cc 1.8L H4, 1974-1975
• VW Campmobile 1584cc 1.6L H4, 1968-1971
• VW Campmobile 1679cc 1.7L H4, 1972-1973
• VW Campmobile 1795cc 1.8L H4, 1974
• VW Transporter Type 2 (211, 221, 231, 235, 241, 261, 265) 1.5 / 1.6 petrol, engines B, H, H1, AD, AS, 1967-1979
• VW Transporter Type 2 1.7 / 1.8 petrol, engines CA, CB, AP, AW, AG, 1967-1979
• VW Transporter Type 2 (231, 234, 235) 2.0 petrol, engines CJ, GE, GD, 1975-1979
