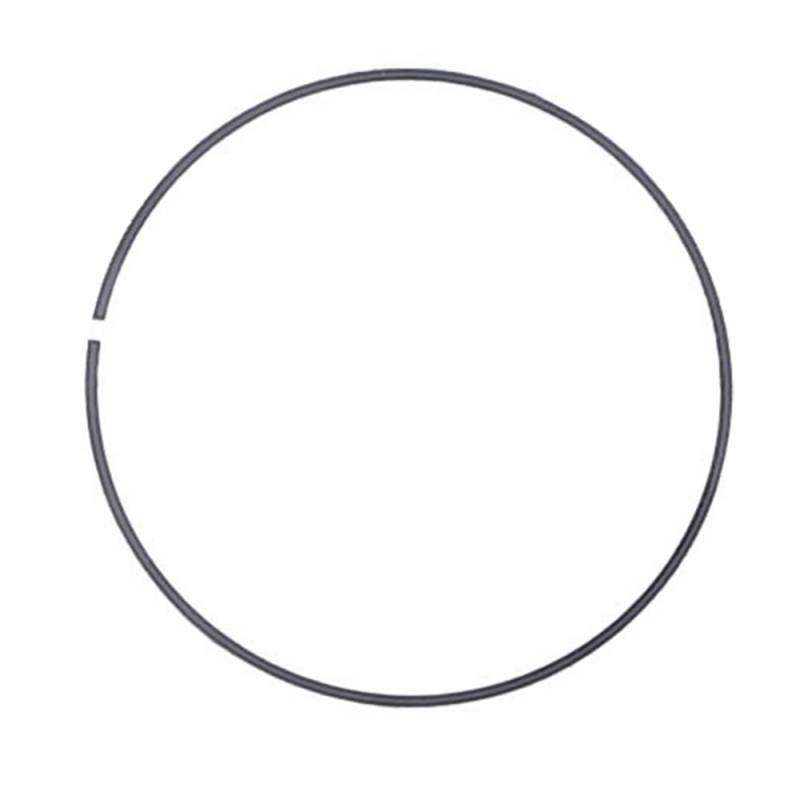

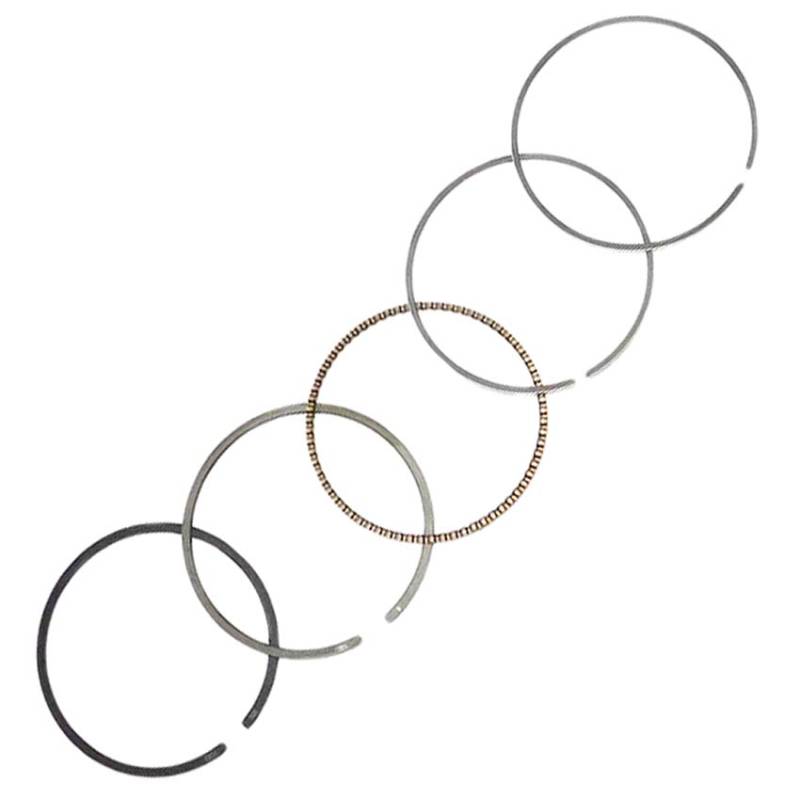

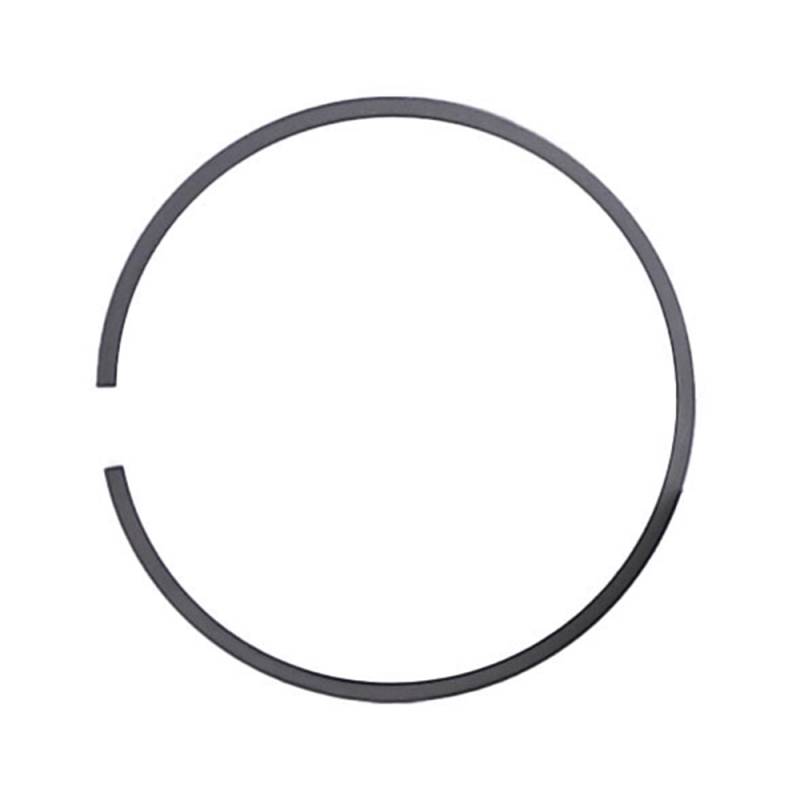

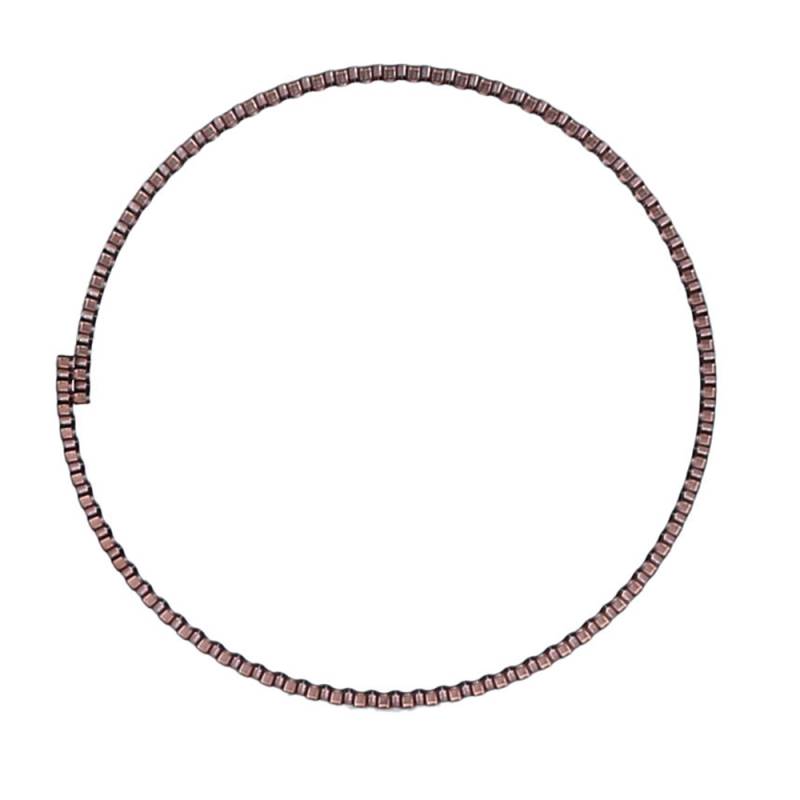

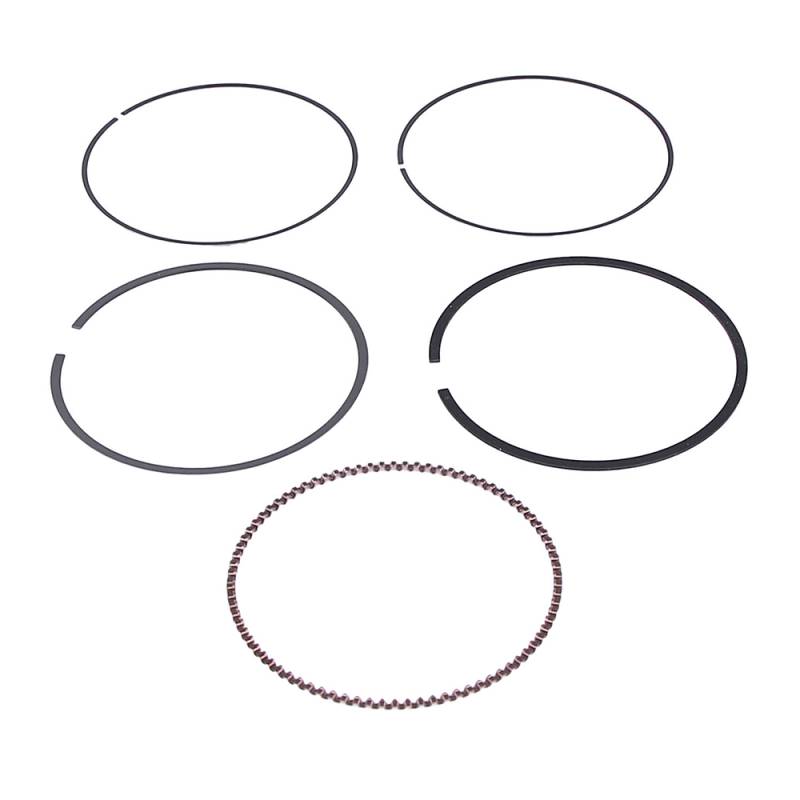

Piston Ring Set Standard 83Mm Compatible With 1987-2014 Yamaha Big Bear 400 Kodiak 400 Grizzly 350

OEM PART NUMBERS:
• Yamaha Ring Set Standard (350cc models): 4GB-11610-00-00 / 4GB116100000
• Yamaha Ring Set Standard (400cc models): 42Y-11610-01-00 / 42Y116100100
• Yamaha Standard Piston 350cc (reference): 1UY-11638-01-00 / 1UY116380100
• Yamaha Standard Piston 400cc (reference): 5UH-11638-00-00 / 5UH116380000

SPECIFICATIONS:
• Type: Piston Ring Set (Rings Only — NOT a Full Piston Kit)
• Bore Specification: Standard Bore
• Outside Diameter: 83mm (Standard)
• 350cc Bore × Stroke: 83mm × 64.5mm (348cc)
• 400cc Bore × Stroke: 83mm × 71.5mm (386cc)
• Engine Type: 4-Stroke Air-Cooled SOHC Single-Cylinder
• Condition: New

APPLICATIONS:
• Yamaha Big Bear 350 YFM350FW 348cc 4-Stroke (1987-1999)
• Yamaha Warrior 350 YFM350X 348cc 4-Stroke (1987-2004)
• Yamaha Moto-4 350 YFM350 348cc 4-Stroke (1987-1990, 1992-1995)
• Yamaha Kodiak 400 YFM400FW 386cc 4-Stroke (1993-2004)
• Yamaha Wolverine 350 YFM350FX 348cc 4-Stroke (1995-2009)
• Yamaha Big Bear 400 YFM400 386cc 4-Stroke (2000-2012)
• Yamaha Bruin 350 YFM350 348cc 4-Stroke (2004-2006)
• Yamaha Raptor 350 YFM350R 348cc 4-Stroke (2004-2013)
• Yamaha Grizzly 350 YFM350 348cc 4-Stroke (2007-2014)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
