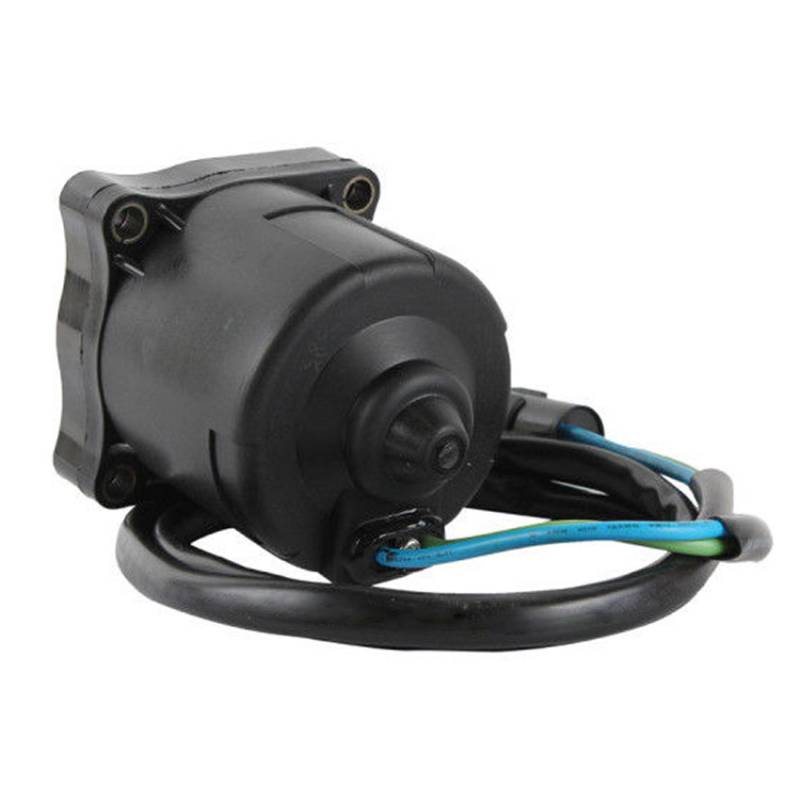

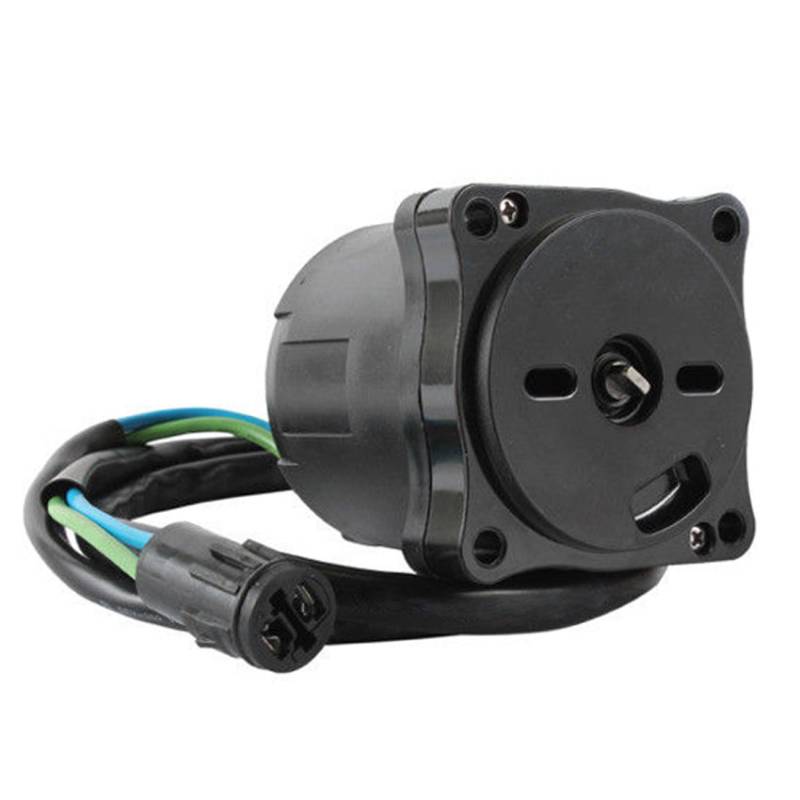

Power Tilt Trim Motor Compatible With Honda Bf175 Bf200 Bf225 175Hp 200Hp 225Hp V6 4-Stroke Outboard

OEM PART NUMBERS:
• Honda: 36120-ZY3-013 / 36120ZY3013
• Honda: 36120-ZY3-023 / 36120ZY3023
• Honda: 36120-ZX2-013 / 36120ZX2013
• Arco Marine: 6234
• Sierra: 18-6742

SPECIFICATIONS:
• Type: Power Tilt Trim Motor
• Voltage: 12V DC
• Rotation: Reversible
• Connection: 2-Wire, 39" Cord Length, Round Plug Connector
• Shaft: 2.3mm Keyed D-Shaft
• Housing OD: 3.091" (78.5mm)
• Shaft OD: 0.315" (8mm)
• Overall Length: 4.429" (112.5mm)
• Mounting Ring OD: 71mm
• Mounting Holes: 66mm On Center
• Weight: 3.01 lbs (1.37 kg)
• Condition: New

HONDA OUTBOARD APPLICATIONS:
• BF175 175HP V6 4-Stroke VTEC — A3, A6, AK1, AK2 (2003-2018)
• BF200 200HP V6 4-Stroke VTEC — A2, A3, A6, AK2 (2002-2018)
• BF225 225HP V6 4-Stroke VTEC — A2, A3, A6, AK1, AK2 (2002-2018)

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
