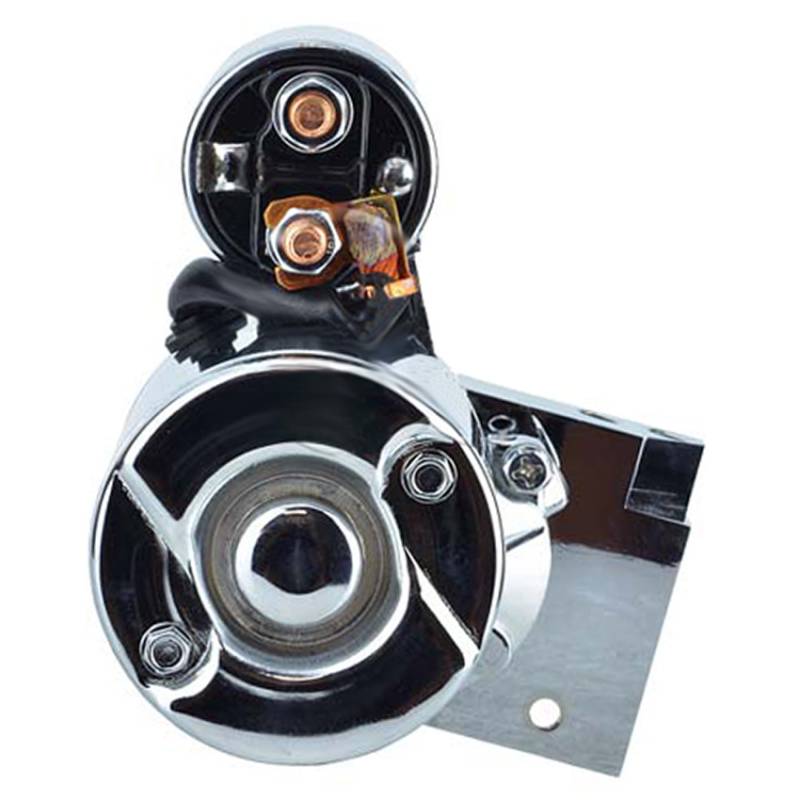

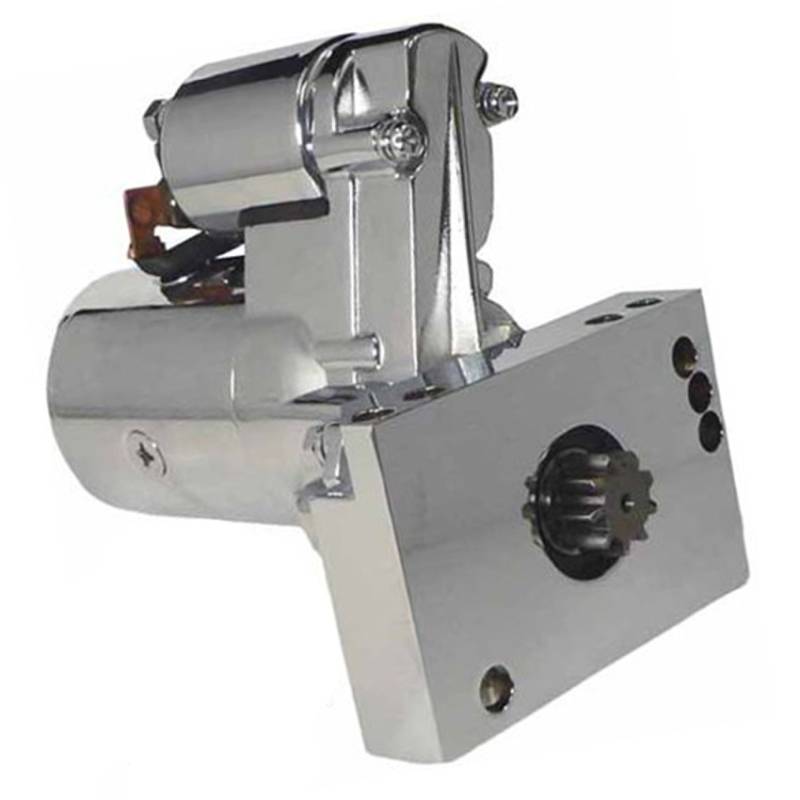

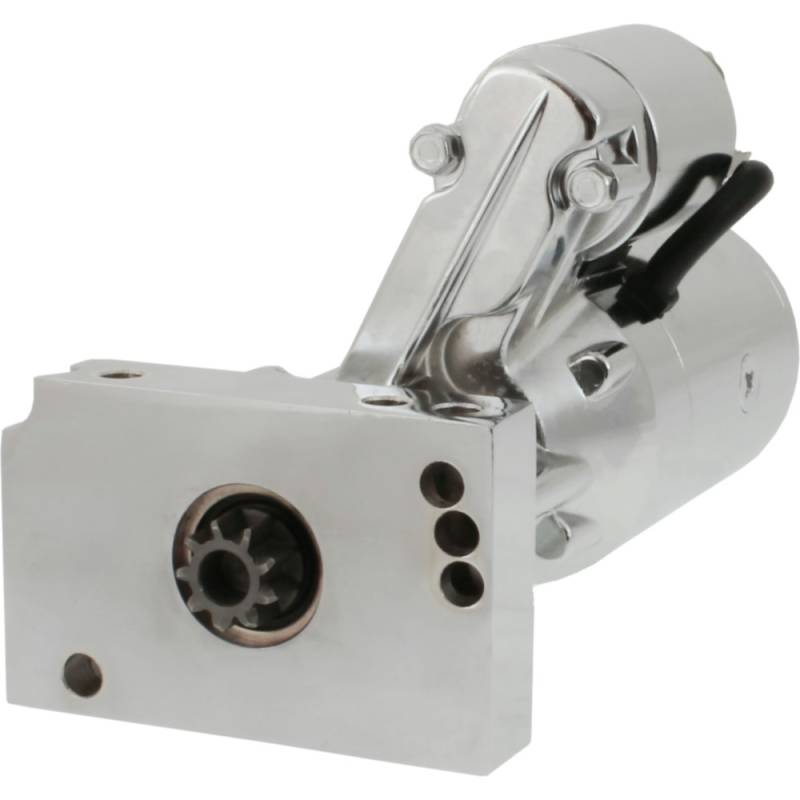

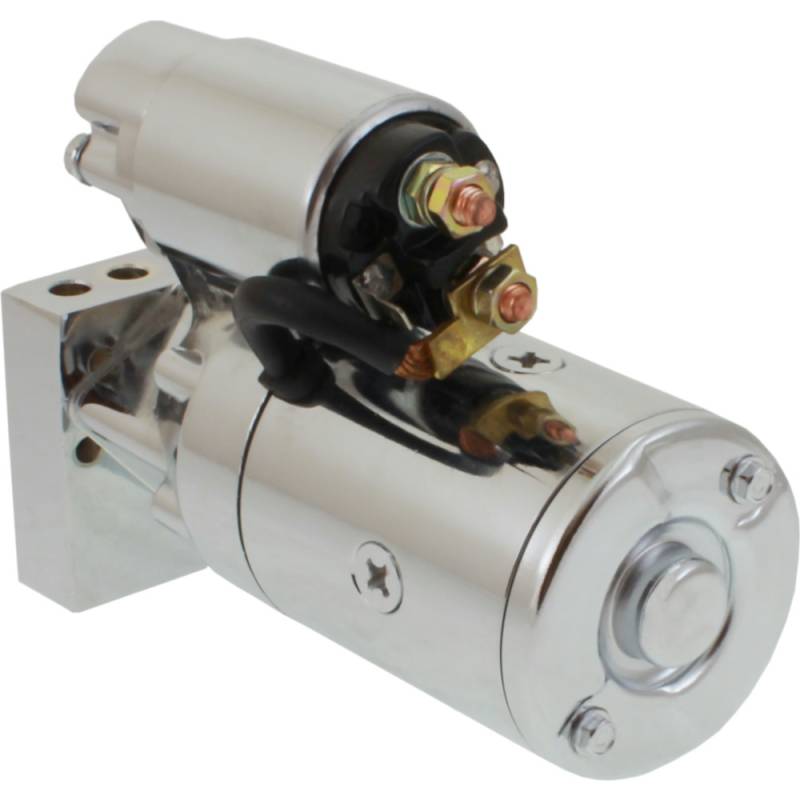

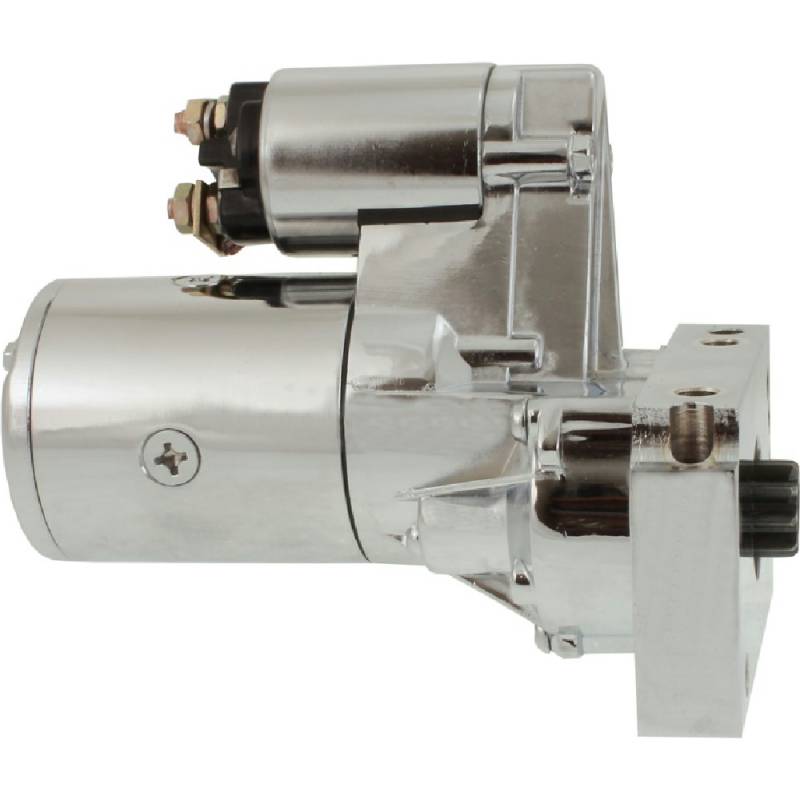

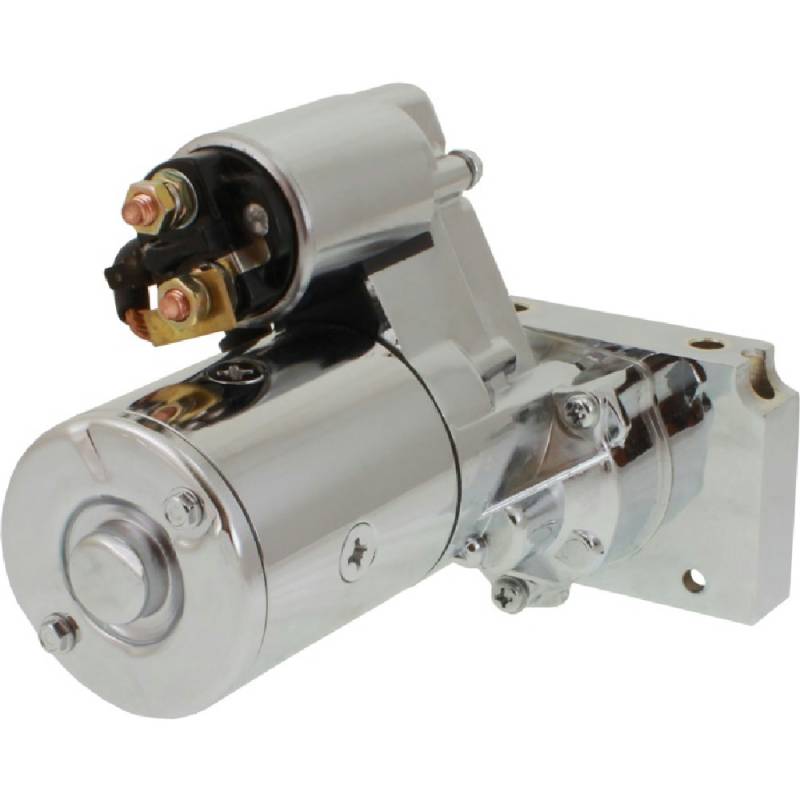

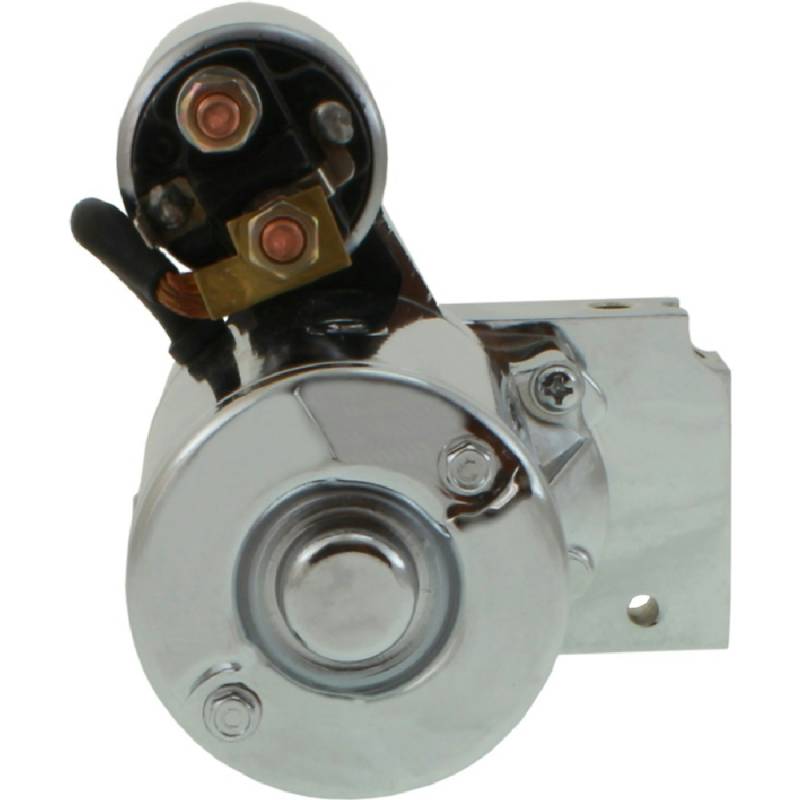

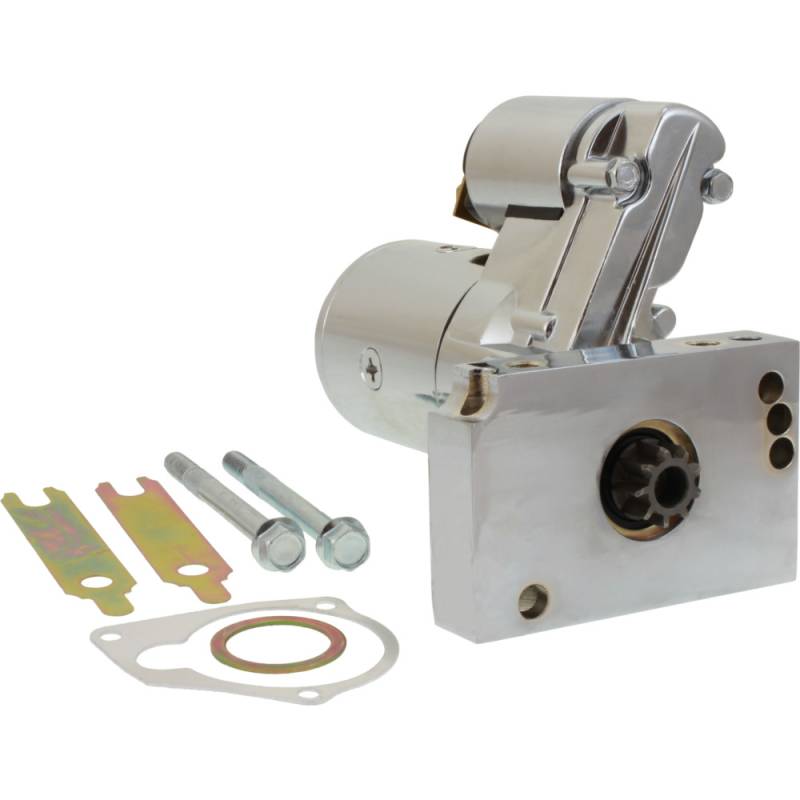

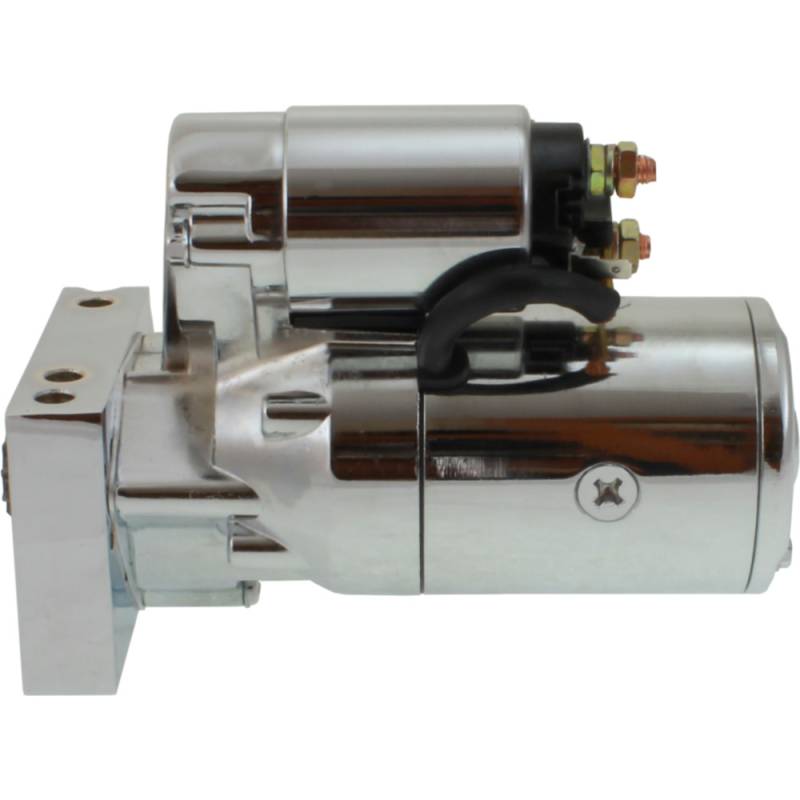

New 12V Chrome Starter Fits Gmc G15/G1500 G25/G2500 G35/G3500 Van 70S Sd114254s1

18492CHH3
HITACHI PART NUMBERS:
• S114-254S1BX, S114254S1BX
• SD114-254S1, SD114254S1
• PP106, PP-106
• S114-823SBX, S114823SBX

WILSON PART NUMBERS:
• 91-25-1122, 91251122
• 91-25-1122N, 91251122N

POWERMASTER PART NUMBERS:
• 19000 PowerMax Plus (PP106 Hitachi style)

SPECIFICATIONS:
• Type: Hitachi PP106 type offset gear reduction (OSGR), 3.73:1
• Voltage: 12 Volt
• Power: 1.4 kW (1.9 HP)
• Rotation: Clockwise (CW)

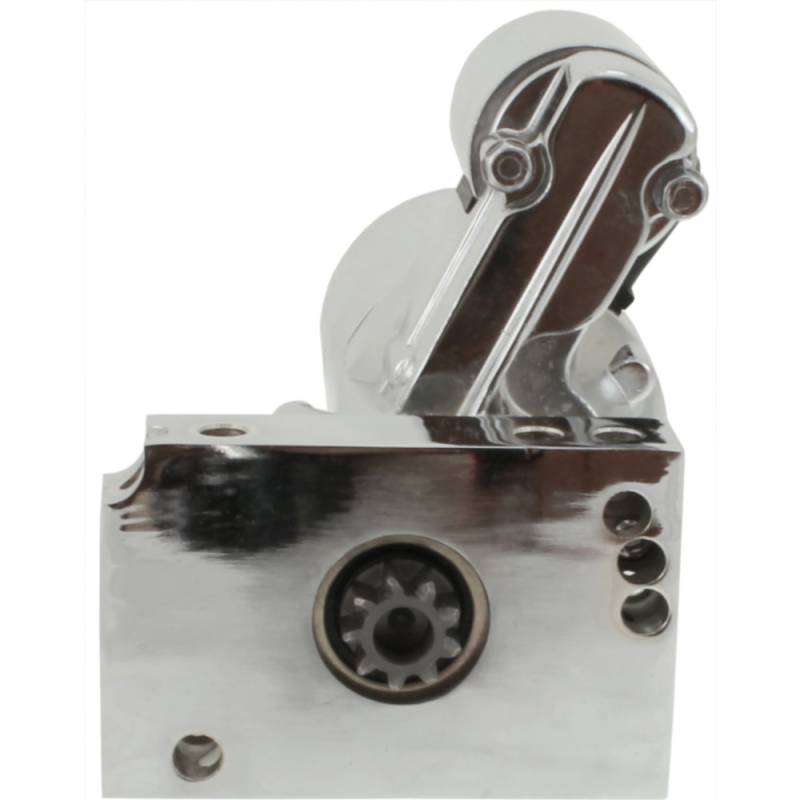

• Pinion: 9 teeth, 25.1 mm (0.988 in) OD
• Flywheel: Chevrolet 153 tooth (12-3/4 in) or 168 tooth (14 in)
• Mounting: pad mount block, 4 bolt holes, 10 mm unthreaded, straight and staggered patterns
• Clocking: 3 positions
• Case: grounded
• Nose: open nose
• Length: 210.2 mm (8.276 in)
• Compression: up to 14:1
• Finish: chrome
• Weight: 11.77 lb (5.35 kg)
• Condition: New

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $363.81
Sale: $207.89
Save: 43%
Save: $155.92
Qty:
Free Shipping!

Description

⚠️ CHROME 1.4 KW 9 TOOTH CW HITACHI PP106 TYPE OSGR STARTER, CHEVROLET CORVETTE, CHEVELLE, EL CAMINO, CHEVY II, G10, G20:
• 12V, 1.4 kW (1.9 HP), clockwise, Hitachi offset gear reduction (OSGR) 3.73:1, 9 tooth pinion, 25.1 mm (0.988 in) gear OD
• Pad mount block with 4 bolt holes (10 mm unthreaded) for the straight 153 tooth and staggered 168 tooth Chevrolet patterns, 3 clocking positions
• Grounded case, open nose, chrome finish, 210.2 mm (8.276 in) long, 11.77 lb (5.35 kg), rated to 14:1 compression, new
• Chevrolet-built V8 and V6 only, automatic or manual; Pontiac, Oldsmobile and Buick-built V8s use a 166 tooth flywheel and a different starter

CHEVROLET CORVETTE:
• Chevrolet Corvette 4.3L 265 V8 1955, 4.6L 283 V8 1957-1961, 5.4L 327 V8 1962-1968, 6.5L 396 V8 1965, 7.0L 427 V8 1966-1969, 5.7L 350 V8 1969-1981, 7.4L 454 V8 1970-1974, 5.0L 305 V8 1980, 1956-1986 (Chevrolet V8)

CHEVROLET CHEVELLE / EL CAMINO:
• Chevrolet Chevelle 4.6L 283 V8 1964-1966, 5.4L 327 V8 1964-1968, 6.5L 396 V8 1965-1970, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1968-1973, 6.6L 400 V8 1970-1973, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1970-1973
• Chevrolet Chevelle Base 4.6L 283 V8 1967, 5.4L 327 V8 1967, 6.5L 396 V8 1967
• Chevrolet Chevelle Concours 4.6L 283 V8 1967, 5.4L 327 V8 1967, 6.5L 396 V8 1967
• Chevrolet Chevelle Deluxe 4.6L 283 V8 1967, 5.4L 327 V8 1967, 6.5L 396 V8 1967
• Chevrolet Chevelle SS 4.6L 283 V8 1967, 5.4L 327 V8 1967, 6.5L 396 V8 1967
• Chevrolet El Camino 4.6L 283 V8 1959-1967, 5.4L 327 V8 1964-1969, 6.5L 396 V8 1966-1970, 5.0L 307 V8 1968-1973, 5.7L 350 V8 1968-1979, 6.6L 400 V8 1970-1976, 6.6L 402 V8 1970-1972, 7.4L 454 V8 1970-1975, 5.0L 305 V8 1976-1986, 4.4L 267 V8 1979-1982

CHEVROLET CHEVY II / DEL RAY:
• Chevrolet Chevy II 4.6L 283 V8 1963-1966, 5.4L 327 V8 1965-1968, 5.0L 307 V8 1968, 5.7L 350 V8 1968, 6.5L 396 V8 1968
• Chevrolet Chevy II Base 4.6L 283 V8 1967, 5.4L 327 V8 1967
• Chevrolet Chevy II Nova 4.6L 283 V8 1967, 5.4L 327 V8 1967
• Chevrolet Del Ray 4.3L 265 V8 1957, 4.6L 283 V8 1957-1958

CHEVROLET CAPRICE CLASSIC / ESTATE:
• Chevrolet Caprice Classic 5.7L 350 V8 1974-1985, 6.6L 400 V8 1974, 7.4L 454 V8 1974, 5.0L 305 V8 1985
• Chevrolet Caprice Estate 5.7L 350 V8 1974, 6.6L 400 V8 1974, 7.4L 454 V8 1974
• Chevrolet Estate 5.0L 307 V8 1969-1970, 5.4L 327 V8 1969, 5.7L 350 V8 1969-1970, 6.5L 396 V8 1969, 7.0L 427 V8 1969, 6.6L 400 V8 1970, 6.6L 402 V8 1970, 7.4L 454 V8 1970

CHEVROLET G10 / G20 VAN:
• Chevrolet G10 5.7L 350 V8 1975-1985, 6.6L 400 V8 1976, 5.0L 305 V8 1977-1985, 1986 (Chevrolet V8)
• Chevrolet G10 Beauville 5.0L 305 V8 1982
• Chevrolet G10 Bonaventure 4.1L 250 L6 1982, 5.0L 305 V8 1982
• Chevrolet G10 Chevy Van 5.0L 305 V8 1982
• Chevrolet G10 Sportvan 5.0L 305 V8 1982, 5.7L 350 V8 1982
• Chevrolet G10 Van 5.0L 307 V8 1968-1973, 5.7L 350 V8 1970-1974, 7.4L 454 V8 1973-1974
• Chevrolet G20 5.7L 350 V8 1975-1986, 6.6L 400 V8 1975-1980, 5.0L 305 V8 1977-1986
