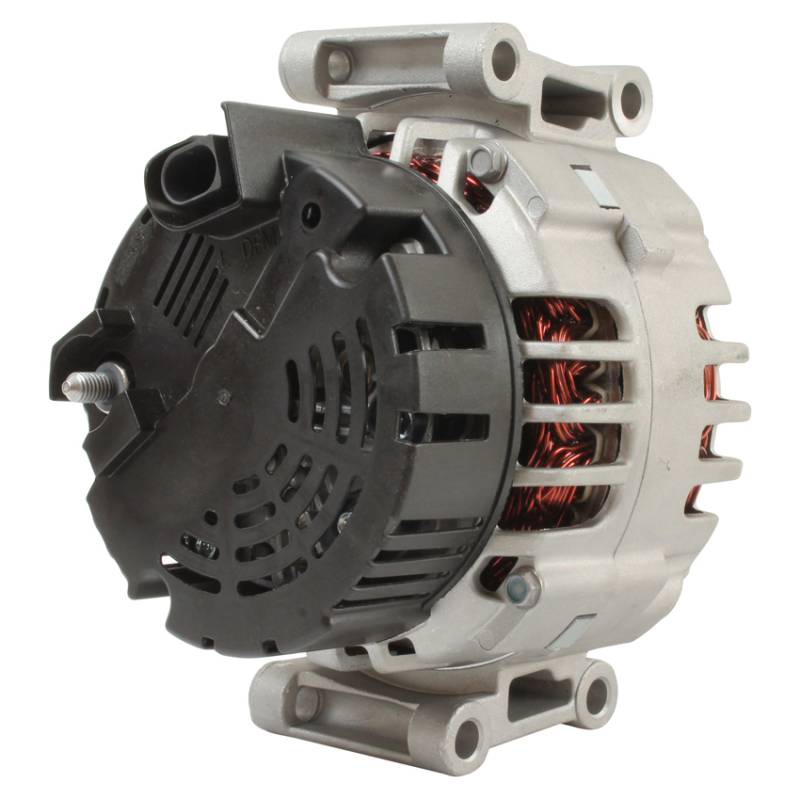

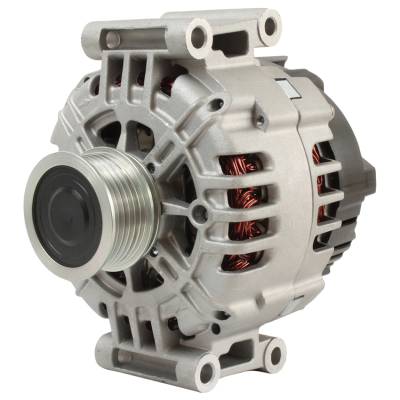

140 Amp Alternator Compatible With 2008-2010 Seat Exeo 1.8T 2.0 Tfsi 2007-2012 Leon Altea Toledo Cw

OEM PART NUMBERS:
• Audi/VW: 06B-903-016AF / 06B903016AF
• Audi/VW: 06J-903-023C / 06J903023C
• Audi/VW: 06D-903-016AX / 06D903016AX
• Bosch: 0-986-046-180 / 0986046180
• Hella: 8EL 738 194-001 / 8EL738194001
• Hella: 8EL 012 429-231 / 8EL012429231
• Valeo: SG14B016
• Valeo: 2542494, 2543369

SPECIFICATIONS:
• Type: Valeo • Voltage: 12V / Amperage: 140A • Rotation: CW (Clockwise) • Regulator: Internal (IR) / Fan: Internal (IF) • Pulley: 6-Groove Serpentine (56mm OD) • Mount Type: Pad • Mounting Ears: 4x Unthreaded (8.5mm/9.5mm holes, 70mm thick) • B+ Terminal: M8-1.25 / Plug: Two Pin (L-DFM) • Polarity: Negative Ground • Weight: 15.44 lbs / 7.02 kg • Condition: New

APPLICATION:
• Seat Alhambra/Altea/Exeo/Leon/Toledo Europe (2007-2012)
• VW Passat 1.8T/2.0T China (2011-2014)
• VW Tiguan 1.4T/1.8T/2.0T China (2009-2013)

DESCRIPTION:
140 Amp Alternator - Seat Exeo, Leon, Altea, and Toledo Europe
New 140 amp Valeo alternator for European Seat models. Primary application is Exeo sedan (3R2) with 1.6L ALZ 75kW (2009-2010), 2.0 TFSI BWE 147kW (2009), and 1.8T CFMA 110kW (2008-2010). Exeo ST wagon (3R5) with same engine range (2009-2010). Leon (1P1) with 1.8 TSI BZB/CDAA producing 118kW (2007-2012). Altea XL 1.8T BYT/BZB (2007-2012). Toledo III (5P2) 1.8 TFSI BYT/BZB/CDAA 118kW (2007-2009). Alhambra (710/711) with 2.0 TSI CCZA (2010) and 1.8 TSI CDAA (2012). Cross-application to VW China Passat 1.8T/2.0T (2011-2014) and Tiguan 1.4T/1.8T/2.0T (2009-2013). 12V 140A clockwise with 6-groove 56mm pulley. Replaces Valeo 2542494, 2543369, SG14B016. Audi/VW 06B-903-016AF, 06J-903-023C, 06D-903-016AX. Bosch 0-986-046-180. Hella 8EL738194001.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
