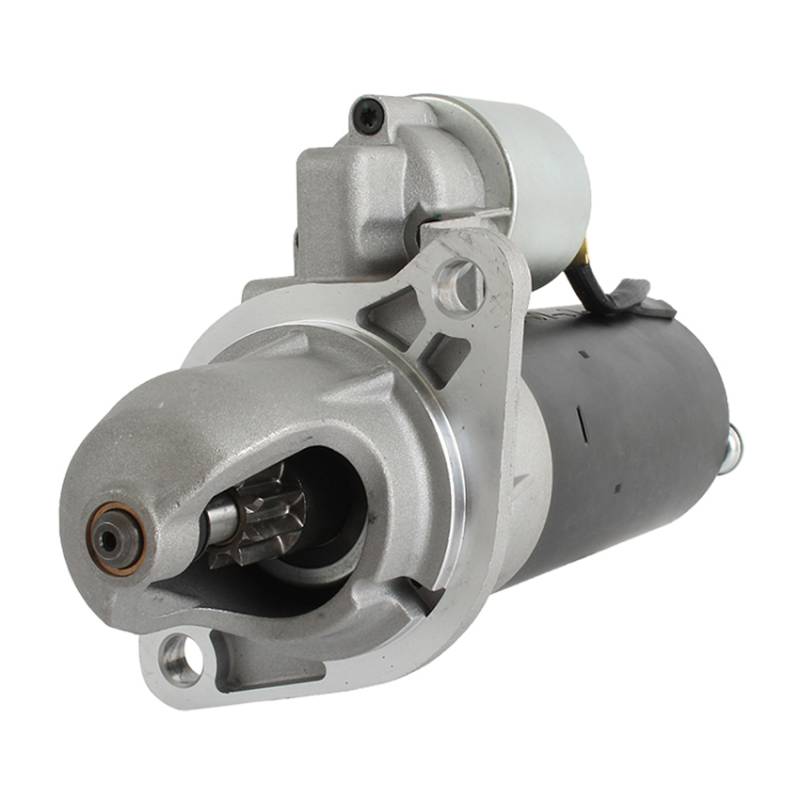

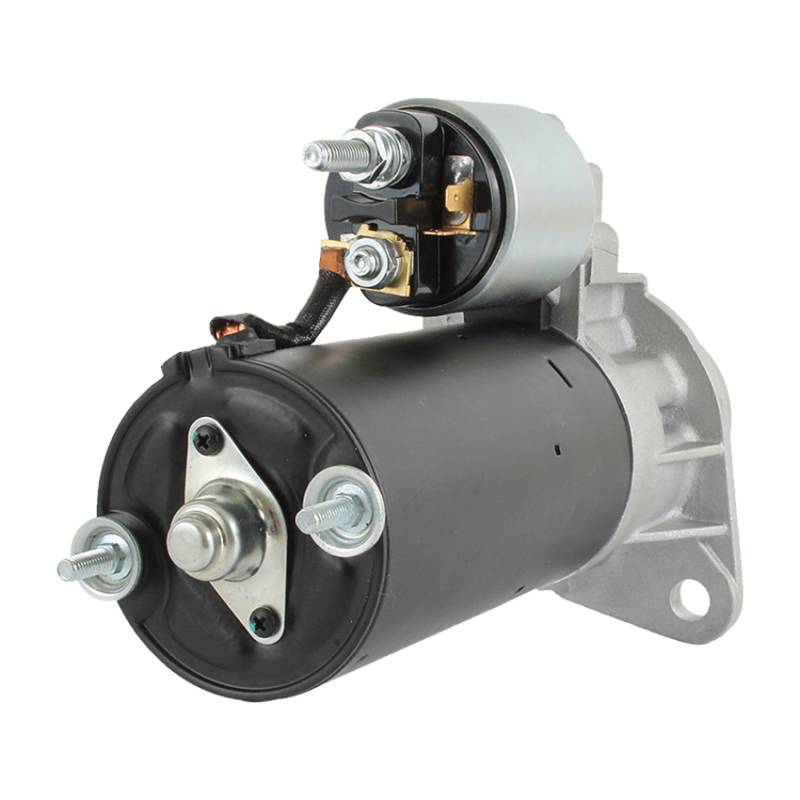

New 9T Starter Fits Volkswagen Europe Transporter Lcv Jx 1985-1986 0-001-317-006

BOSCH: 0 001 110 010 0-001-317-006 0001317012 0 986 010 940
DELCO: DRS3350
LETRIKA (ISKRA) SALES: IS0772
LUCAS: S7013
MAHLE: 11130772 MS-285
VOLKSWAGEN: 0689110023MX 068 911 023J 068-911-023M

ITEM DESCRIPTION: STARTER
UNIT TYPE: BOSCH
STARTER TYPE: PMGR
VOLTS: 12
ROTATION: COUNTERCLOCKWISE
TEETH ON DRIVE: 9
KW: 1.7
GEAR OD: 0.984IN / 25MM
LENGTH: 8.228IN / 209MM
MOUNTING EAR 1 HOLE: 12.5MM UNTHREADED
MOUNTING EAR 2 HOLE: 12.5MM UNTHREADED
MOUNTING EAR CENTER TO CENTER 1: 4.988IN / 126.7MM
REGISTRY OD: 3.256IN / 82.7MM
SPECIFICATIONS: M6-1.0 THREADED DOUBLE EXTENDED THRU BOLTS
SPECIFICATIONS: M8-1.25 B+ & MOTOR STUDS
SPECIFICATIONS: DOUBLE SPADE S TERMINALS
WEIGHT: 10.61 LBS / 4.82 KG
