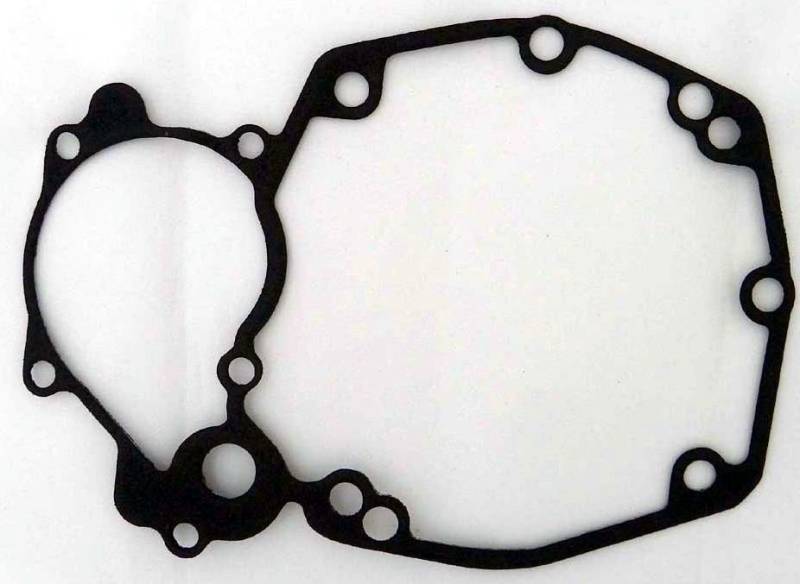

Stator Cover Gasket Replacement Compatible With 1995-1999 Tigershark 900 1000 1100 Monte Carlo

007-447*4
/ Reference Part Numbers:

Tigershark 300-259
300259
Tigershark 3008-570
3008570

Specifications:

Type: Magneto Cover Gasket
Engine: 2-Stroke 3-Cylinder Triple
900: 896cc / 76.5mm x 65mm / 100-105 HP
1000: 999cc / 81mm x 64.5mm / 115 HP
1100: 1100cc / 85mm x 64.6mm / 135 HP
Cooling: Water Cooled
Quantity: 1 Gasket

Applications:

Tigershark 900 1995-1996, Monte Carlo 900/1000 1996-1997, Daytona 1000 1997, TS-L 900/1000 1998-1999, TS-R 1000/1100 1998-1999, TS-LI 1100 1999

Stator Cover Gasket Tigershark TS-R TS-L
Stator cover gasket for Tigershark TS-R TS-L TS-LI Monte Carlo and Daytona personal watercraft with 2-stroke 3-cylinder triple engines. These Suzuki-based engines range from the 896cc triple with 76.5mm bore producing 100 HP to the 1100cc triple with 85mm bore producing 135 HP. All engines use water cooling and CDI ignition. The stator cover gasket provides the seal between the magneto cover and crankcase protecting the stator assembly and flywheel from water contamination. On marine engines the magneto cover seal is critical because any water intrusion into the stator housing causes corrosion of the windings and electrical connections leading to charging failure and no-start conditions. Deteriorated gaskets also allow oil seepage from the crankcase. Replace the stator cover gasket during any magneto service or whenever the cover is removed. Clean all mating surfaces before installation. One gasket per package.

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $46.17
Sale: $26.38
Save: 43%
Save: $19.79
Qty:
Free Shipping!

Description

Applications:

Tigershark Magneto Cover Gasket:

1995-1996 Tigershark 900 / Monte Carlo 900
1997 Tigershark Daytona 1000 / Monte Carlo 1000
1998 Tigershark TS-L 1000 / TS-R 1000
1999 Tigershark TS-L 900 / TS-LI 1100 / TS-R 1100

Check your part number to verify this gasket fits your model.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.0 lbs.
  • W6.0000” x H0.2500” x L8.8000”
  • Free Shipping!
