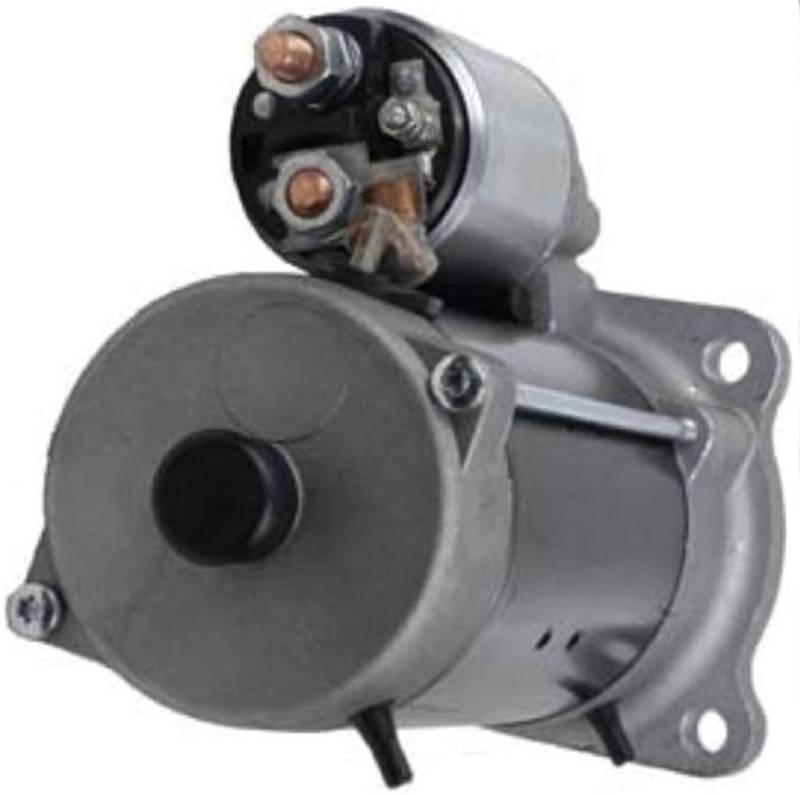

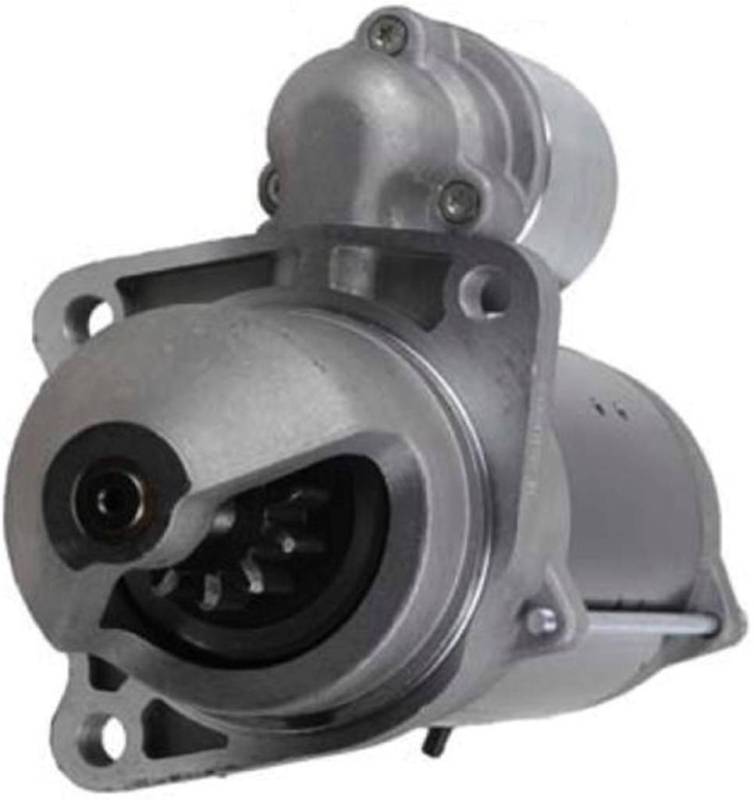

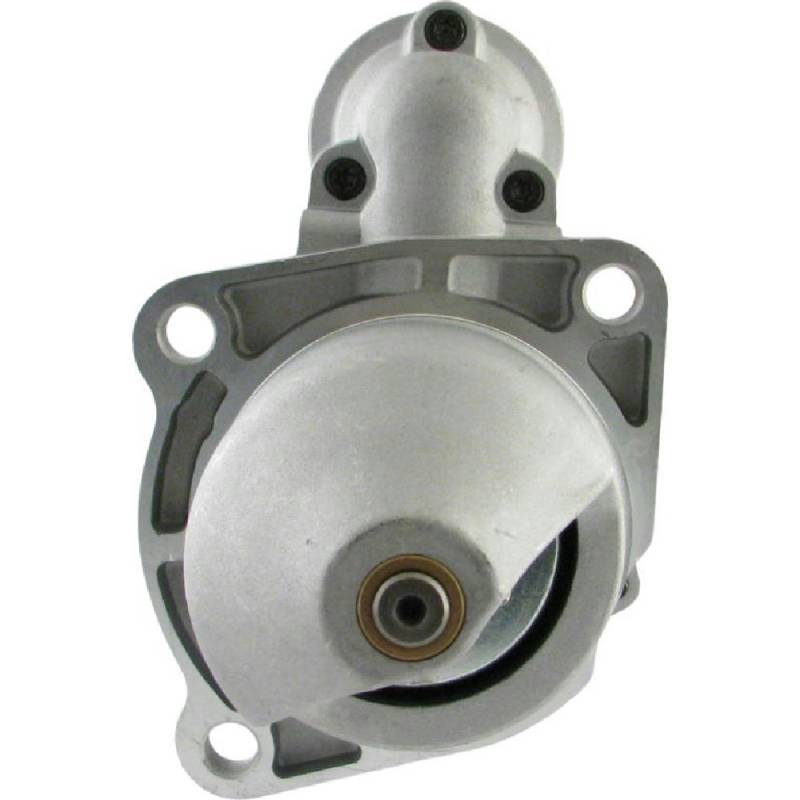

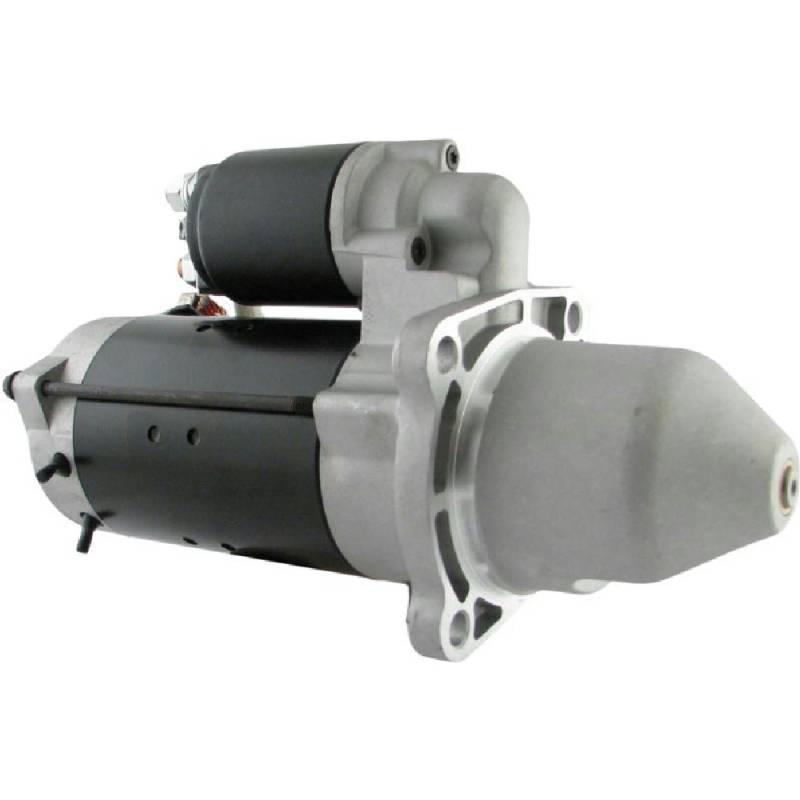

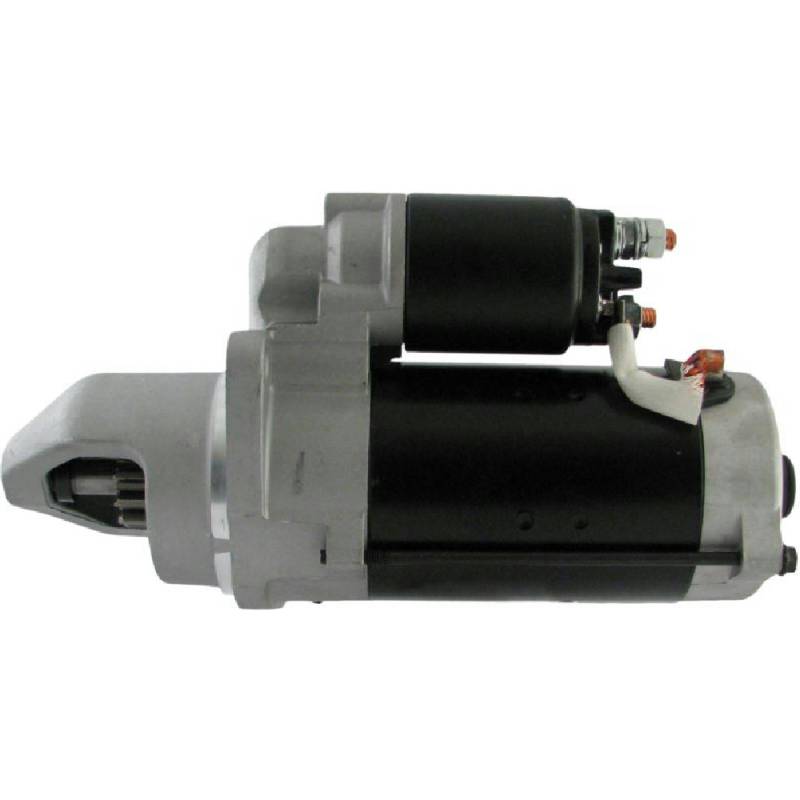

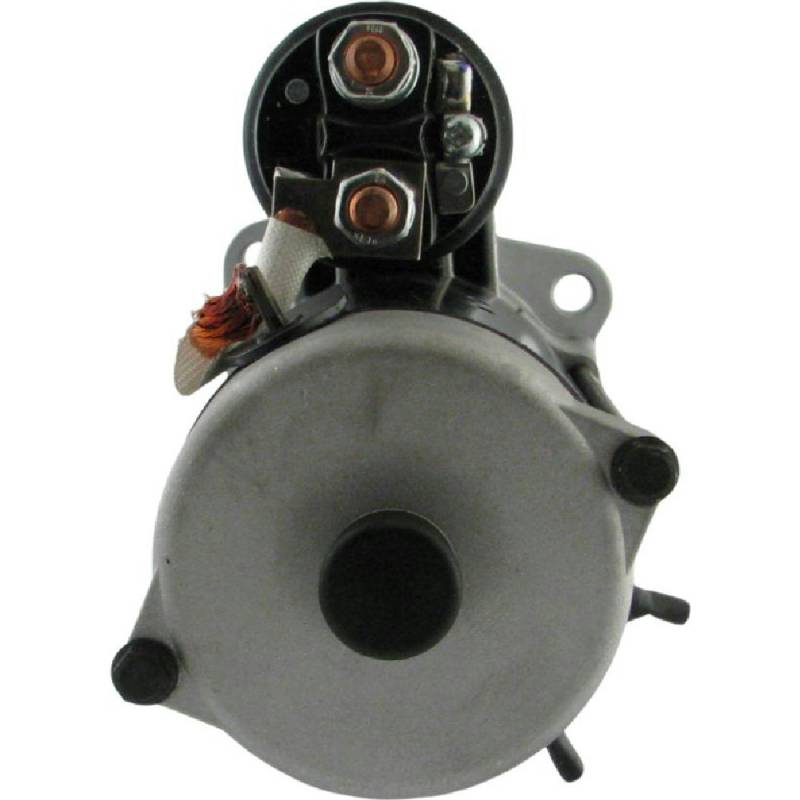

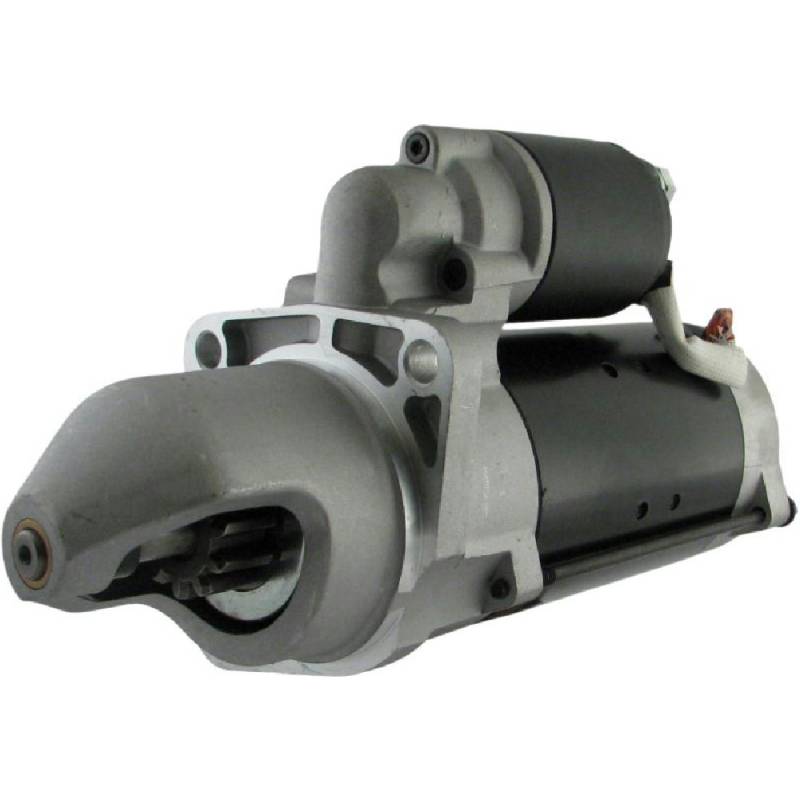

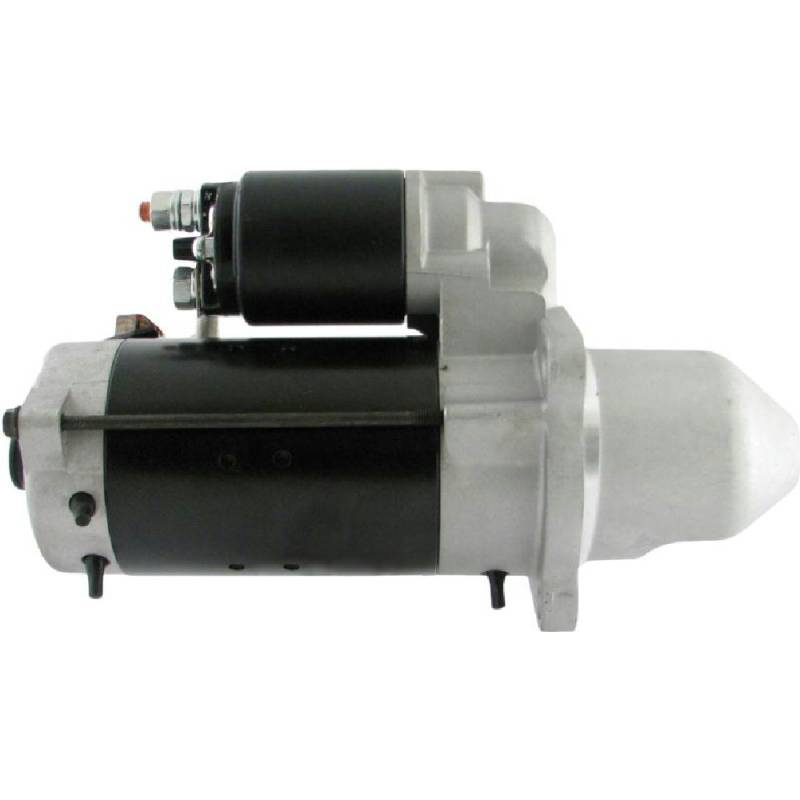

New 10T Starter Compatible With John Deere Agricultural Tractor 6520L 6520Se 2002-05 Ms416

(0) Reviews: Write first review
18361NA4
JOHN DEERE PART NUMBERS:
• RE504807
• RE503226
• RE501157
• AL81154, AL 81 154
• AL70852
• SE501855, SE501856

BOSCH PART NUMBERS:
• 0 001 230 002, 0001230002
• 0 986 023 990, 0986023990
• 0 986 024 000, 0986024000

HELLA PART NUMBERS:
• 8EA 737 878-001
• 8EA 738 258-001

DELCO REMY PART NUMBERS:
• DRS0067

LUCAS PART NUMBERS:
• LRS01622

MAGNETON PART NUMBERS:
• 9142745

WILSON PART NUMBERS:
• 91-15-7151, 91157151

MAHLE / LETRIKA (ISKRA) PART NUMBERS:
• MS416, MS 416, 72736044
• 11.131.237, 11131237
• AZF4570, IS1157

BOBCAT PART NUMBERS:
• 6632415

SPECIFICATIONS:
• Type: Bosch PLGR (permanent magnet gear reduction)
• Voltage: 12 Volt
• Power: 3.0 kW / 4.02 HP
• Rotation: Clockwise (CW)
• Teeth: 11
• Gear OD: 40.5 mm / 1.594 in
• Flange: 89 mm
• Mounting ears: 3, unthreaded, 9.8 mm ID
• Weight: 18.35 lb / 8.34 kg

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $452.53
Sale: $258.59
Save: 43%
Save: $193.94
Qty:
Free Shipping!

Description

⚠️ 12 VOLT 3.0 KW BOSCH PLGR STARTER:
• 12V, 3.0 kW (4.02 HP), clockwise, permanent magnet gear reduction
• 11 tooth pinion 40.5 mm OD, 89 mm flange, 3 unthreaded ears 9.8 mm
• Replaces John Deere RE504807 / RE503226 and Bosch 0 001 230 002

JOHN DEERE 6010 SERIES TRACTORS:
• 1997-2001 John Deere 6510, 6068DL / 6068TL
• 1998-2001 John Deere 6510, 4045T
• 1998-2001 John Deere 6510L, 4045T
• 1998-2001 John Deere 6510S, 4045T
• 1997-2001 John Deere 6610, 6068DL / 6068TL
• 1997-2002 John Deere 6610SE, 6068T
• 1997-2001 John Deere 6810, 6068H
• 1997-2001 John Deere 6910, 6068HL
• 1997-2001 John Deere 6910S, 6068TLA
• 1997-2001 John Deere SE6510, 6068TL
• 1997-2001 John Deere SE6610, 6068TL

JOHN DEERE 6015 / 6020 SERIES TRACTORS:
• 2003-2007 John Deere 6205, 4045TL
• 2003-2007 John Deere 6215, 4045TL / 6068DL
• 2003-2007 John Deere 6505, 4045TL
• 2003-2005 John Deere 6515, 4045HL / 6068DL / 6068HL
• 2001-2006 John Deere 6520, 6068DL / 6068HL / 6068TL
• 2002-2007 John Deere 6520L, 4045T / 6068
• 2002-2007 John Deere 6520SE, 4045T / 6068
• 1997-2006 John Deere 6605, 6068TL
• 2002-2010 John Deere 6615, 6068HL
• 2001-2006 John Deere 6620, 6068DL / 6068HL / 6068TL
• 2003-2007 John Deere 6715, 6068H
• 2001-2006 John Deere 6820, 6068HL
• 2001-2006 John Deere 6920, 6068HL
• 2003-2006 John Deere 6920S, 6068HL
• 2002-2007 John Deere SE6320, 4045 / 6068
• 2002-2007 John Deere SE6420, 4045 / 6068
• 2002-2007 John Deere SE6520, 4045 / 6068
• 2002-2007 John Deere SE6620, 4045 / 6068
• 2001-2006 John Deere SE6920, 6068TL

JOHN DEERE 7020 / 7025 SERIES TRACTORS:
• 2003-2007 John Deere 7220, 6068HR
• 2003-2007 John Deere 7320, 6068HR
• 2002-2006 John Deere 7420, 6068HR
• 2003-2007 John Deere 7520, 6068HR
• 2009-2019 John Deere 7425, 6068TP
• 2009-2019 John Deere 7525, 6068TP

JOHN DEERE 6J SERIES TRACTORS:
• 2010-2016 John Deere 6140J, 6068T
• 2010-2016 John Deere 6155J, 6068TP

ENGINES:
• John Deere 4045T, 4045TL, 4045HL 4.5L
• John Deere 6068DL, 6068TL, 6068HL, 6068H, 6068HR, 6068TP 6.8L
