OEM PART NUMBERS:
• Case IH: 3116683EX
• Landini: 3542185M92
• Letrika (Iskra): 11-130-629 / IS0629
• Lucas: 26404 / 27541 / 26274H / 26404B / 27536A / 27572D
• Magneton: 9142748
• Mahle: MS385
• Marelli: 63227479 / 63227598
• Massey Ferguson: 1868287T / 909971R2
• Perkins Engine: 2873B053
SPECIFICATIONS:

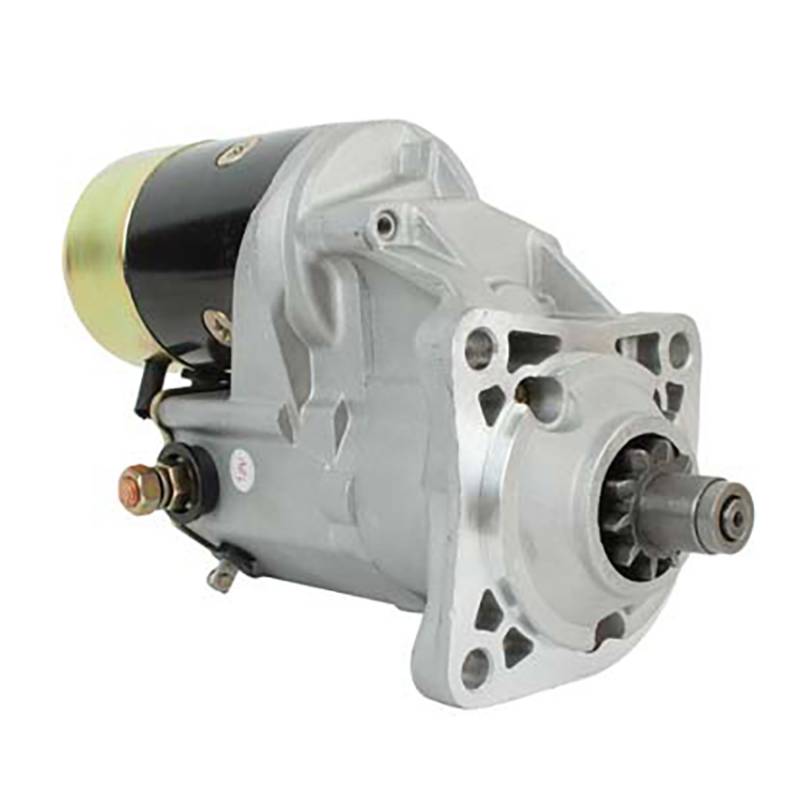

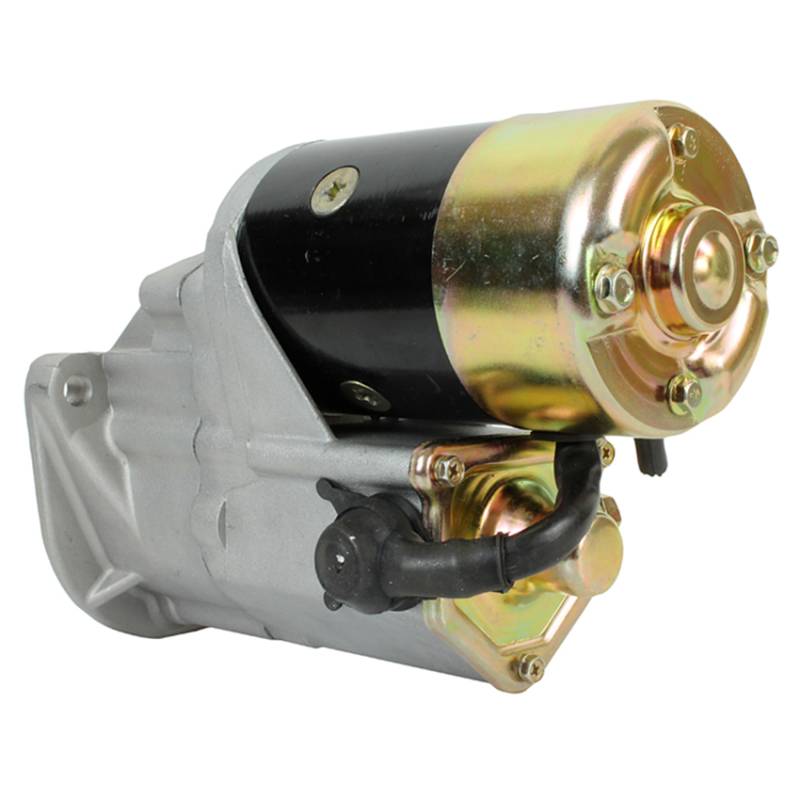

• Type: Starter Motor
• Unit: OSGR — Replacement for Lucas M50/M127
• Voltage: 12V
• Power: 2.5kW (3.35 HP)
• Rotation: Clockwise (CW)
• Teeth on Drive: 10
• Gear OD: 1.583 in / 40.2 mm
• Length: 9.469 in / 240.5 mm
• Registry OD: 3.488 in / 88.6 mm
• Mounting Ears 1/2/3: 11mm Unthreaded
• Wet Clutch Seal: Yes
• Weight: 18.23 lbs / 8.29 kg
• Condition: New
MAKE / MODEL APPLICATIONS:
• MF Tractor MF-165/168/174/175/178/184/185/188/194 Perkins 4-203/4-236/4-248 (1969-1992)
• MF Tractor MF-240/250/253/254 Perkins AD2-152/AD3-152 Diesel (1982-1999)
• MF Tractor MF-1080/1085/1100/1200/1250 Perkins A4.318/A6.354 (1971-1982)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
