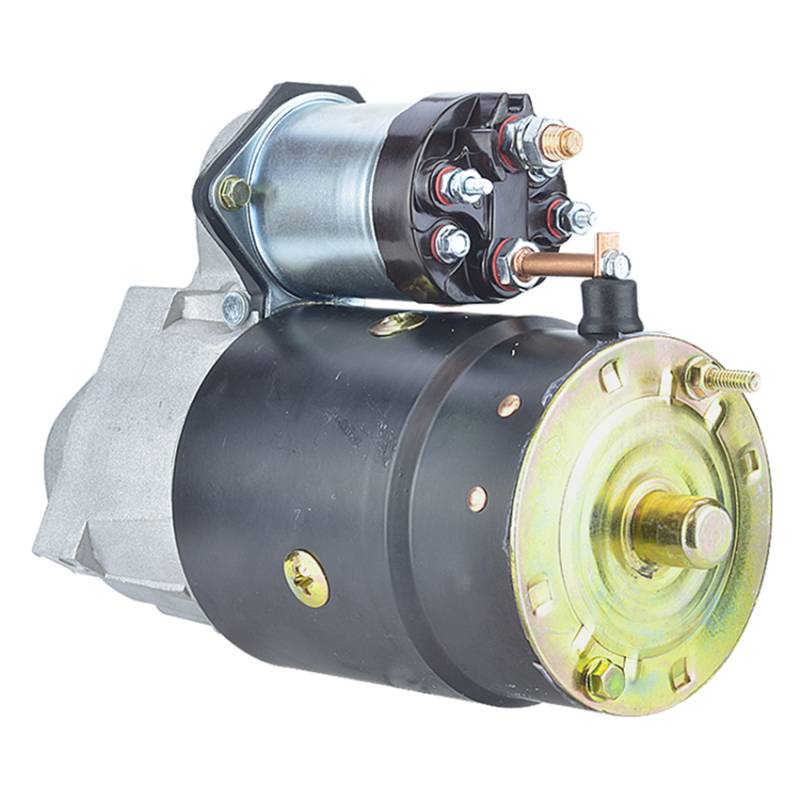

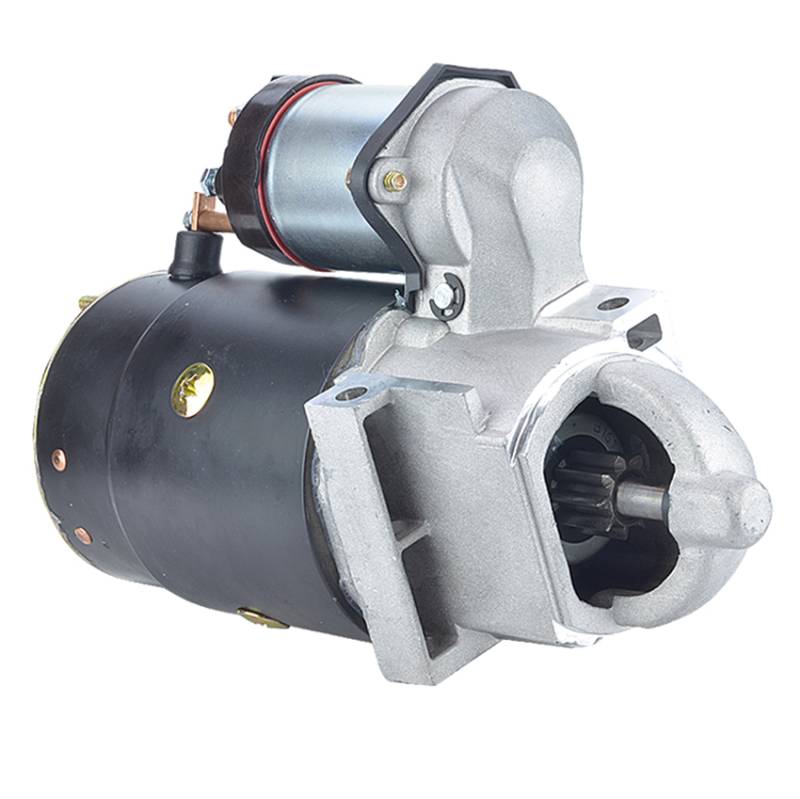

Starter Motor Compatible With Mercruiser Sterndrive 4.3L 5.0L 5.7L 7.4L 8.2L Gm V6 V8 1977-1996

(0) Reviews: Write first review
6423NB5
OEM PART NUMBERS:
• 10455603 / 1109482 / 1998314 / 1998513
• 1998566 / 1998568 / 1998569 / 1998570 / 1998571
• Mercury Marine: 50-12177A2 / 50-77328A1 / 50-77328A3 / 50-99418A2
• Quicksilver: 8M6007264
• OMC/BRP: 3850525 / 3853982 / 3855177 / 984456 / 986505 / 686505
• Volvo Penta: 3850525-1 / 3853982-1 / 3855177 / 38505251
• 35261180
• Pleasurecraft: RA122015

SPECIFICATIONS:
• Type: 10MT DD (Direct Drive)
• Voltage: 12V
• Power: 1.4 kW
• Rotation: CW (Clockwise)
• Tooth Count: 9
• Gear OD: 25.1mm / 0.988"
• Mounting: (2) 3/8" Unthreaded Ears, Offset Pattern
• Ear Center-to-Center: 82.4mm / 3.244"
• SAE J1171 Marine Ignition Protection Certified
• Weight: 20.25 lbs / 9.21 kg
• Condition: New

MARINE APPLICATIONS:
• MerCruiser Sterndrive/Inboard GM 4.3L-8.2L (1977-1996)
• OMC Marine GM 4.3L-8.2L (1986-1994)
• Volvo Penta 5.7Gi/5.7GL/7.4GL/8.2GL (1993-1999)
• Crusader 4.3L-7.4L (1977-1995) / Pleasurecraft 5.0L-7.4L (1976-1995)
• Berkley Jet 7.4L (1970-1980) / Thermo Electron (1977-1988)

AFTERMARKET CROSS REFERENCE:
• Sierra: 18-5905

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $263.59
Sale: $150.62
Save: 43%
Save: $112.97
Qty:
Free Shipping!

Description

MERCRUISER STERN DRIVE (1977-1996):
• Model 175 GM 4.3L 262ci V6 (1987-1990)
• Model 185 GM 4.3L 262ci V6 (1985-1987)
• Model 200 GM 5.0L 305ci V8 (1985-1987)
• Model 205 GM 4.3L 262ci V6 (1985-1991)
• Model 228 GM 5.0L 305ci V8 (1982-1984)
• Model 230 GM 5.0L 305ci V8 (1985-1987)
• Model 260 GM 5.7L 350ci V8 (1982-1987)
• Model 300 Tempest GM 5.7L 350ci V8 (1985-1986)
• Model 320 EFI GM 5.7L 350ci V8 (1987-1990)
• Model 330 GM 7.4L 454ci V8 (1977-1981)
• Model 350 Mag Alpha GM 5.7L 350ci V8 (1986-1995)
• Model 4.3L 2-BBL / 4.3LX 4-BBL GM 4.3L 262ci V6 (1988-1992)
• Model 454 Mag Alpha / Bravo GM 7.4L 454ci V8 (1986-1992)
• Model 5.0LX GM 5.0L 305ci V8 (1988-1995)
• Model 5.7L Bravo GM 5.7L 350ci V8 (1989-1995)
• Model 7.4L Bravo GM 7.4L 454ci V8 (1988-1991)
• Model 898 GM 5.0L 305ci V8 (1983-1984)

MERCRUISER MARINE / SKI ENGINES (1985-1996):
• Model 450 Gen V GM 7.4L 454ci V8 (1995-1996)
• Model 465 / Gen V GM 8.2L 502ci V8 (1990-1994)
• Model 500 Gen V GM 8.2L 502ci V8 (1994-1996)
• Model 525SC / Gen V GM 7.4L 454ci V8 (1991-1996)
• 5.7L Competition Ski GM 5.7L 350ci V8 (1987-1995)
• 5.7L Ski GM 5.7L 350ci V8 (1985-1987)

OMC MARINE ENGINES (1986-1994):
• 4.3L GM 262ci V6 (1987-1994)
• 5.0L GM 305ci V8 (1986-1988)
• 5.7L GM 350ci V8 (1986-1994)
• 7.4L GM 454ci V8 (1990-1994)
• 8.2L GM 502ci V8 (1988-1992)

VOLVO PENTA MARINE (1993-1999):
• 5.7Gi / 5.7GL GM 5.7L 350ci V8 (1993-1999)
• 7.4GL GM 7.4L 454ci V8 (1994-1999)
• 8.2GL GM 8.2L 502ci V8 (1994-1999)

CRUSADER / PLEASURECRAFT / OTHER (1970-1995):
• Crusader 262 4.3L V6 (1979-1988) / 305 5.0L V8 (1977-1995)
• Crusader 350 5.7L V8 (1977-1995) / 454 7.4L V8 (1977-1988)
• Pleasurecraft 305 5.0L / 350 5.7L / 454 7.4L V8 (1976-1995)
• Berkley Jet 454 7.4L V8 (1970-1980)
• Thermo Electron 262/305/350/454 (1977-1988)
