OEM PART NUMBERS:
• Denso: 128000-5600 / 128000-5601 / 128000-5602
• Denso: 228000-1190 / 228000-0020
• IHC / Navistar: 1959854C1
• Lucas: S9134
• Teledyne: TMD-27M00519 / TMD-27M507 / TMD-27M509
• Teledyne: TMD-27M512 / TMD-27M521
SPECIFICATIONS:
• Voltage: 12V
• Type: OSGR (Offset Gear Reduction)
• Power: 2.5kW / 3.35HP
• Rotation: CW (Clockwise)
• Teeth: 10
• Gear OD: 40.2mm / 1.583"
• Overall Length: 292mm / 11.496"
• Mounting Holes: 2x 11mm Unthreaded
• Mounting Ear Center to Center: 127.2mm / 5.008"
• Registry OD: 88.8mm / 3.496"
• Weight: 19.2 lbs / 8.73 kg
• Condition: New
APPLICATION:
• Case Uni-Loader 1835C Teledyne Diesel (1987-1998)
• Teledyne Continental TMD-27 / TMD-27M Diesel (1986-1998)
• Teledyne Continental 2.0L Diesel Industrial (1986-1992)

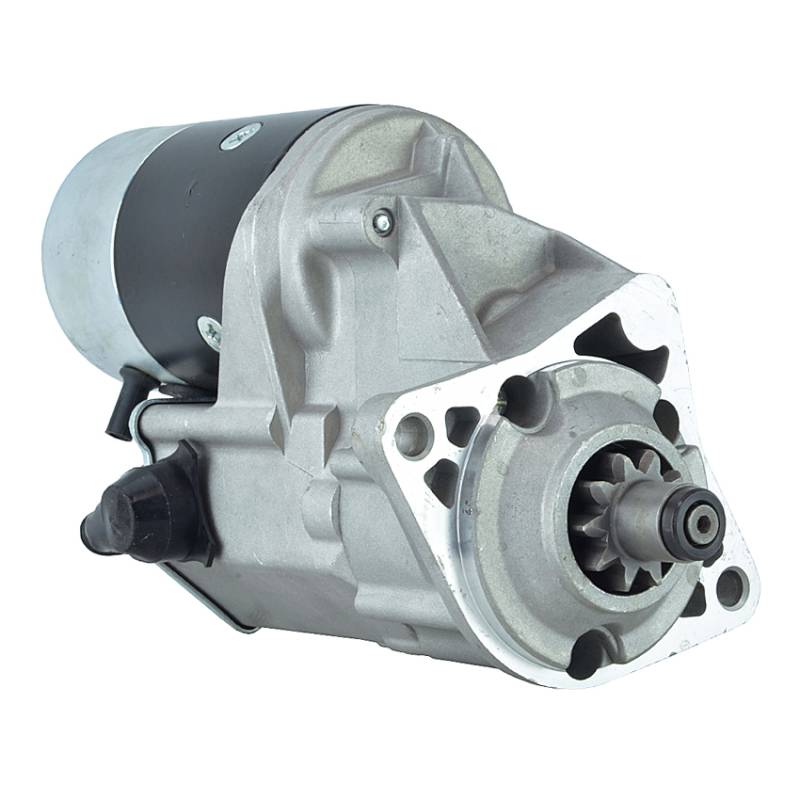

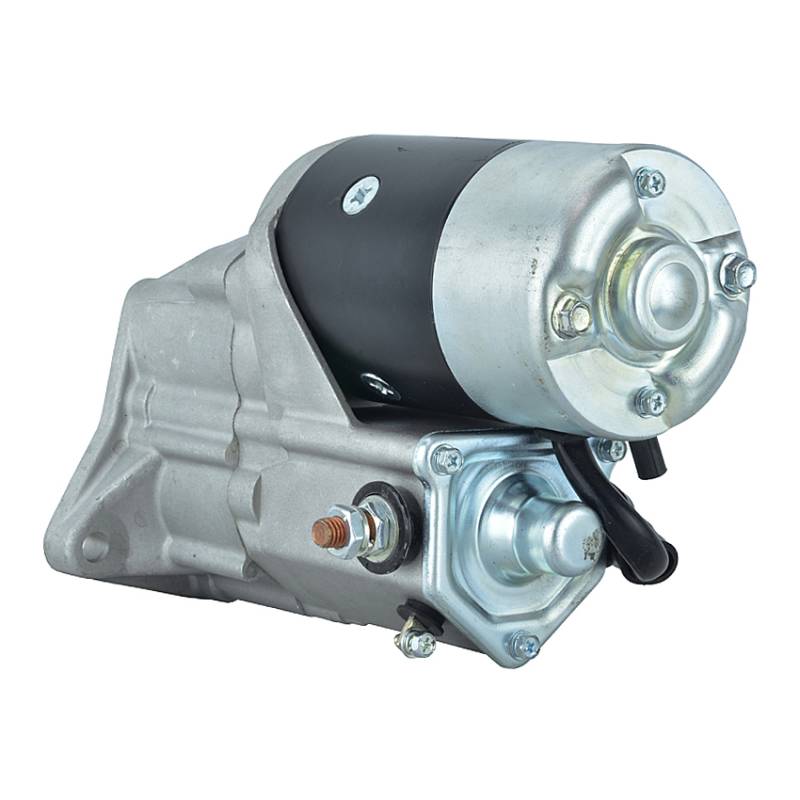

Starter Motor - Case 1835C Teledyne TMD-27 TMD-27M
New 12V OSGR starter for Case and Teledyne Continental diesel engines. Clockwise, 10 teeth, 40.2mm OD, 2.5kW, 19.2 lbs. Replaces Denso 128000-5601, 128000-5600, 128000-5602, 228000-1190, 228000-0020, IHC 1959854C1, Lucas S9134, Teledyne TMD-27M512, TMD-27M521, TMD-27M507, TMD-27M509, TMD-27M00519. Verify OEM part number before ordering.
