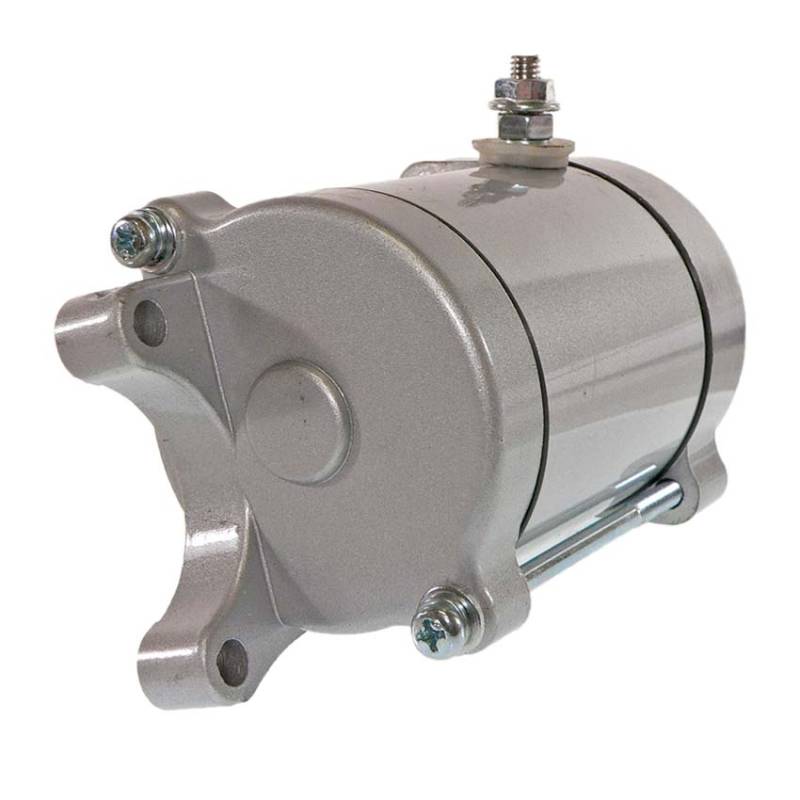

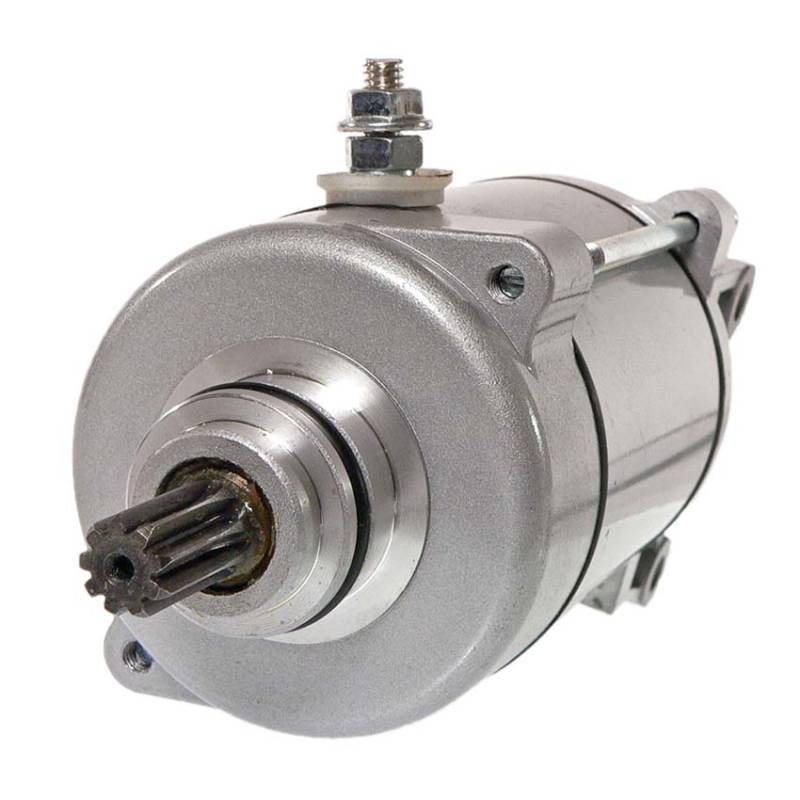

New Starter Compatible With Sunl 250Cc 200Cc Atv Utv Quad 4-Wheeler Chinese 150Cc-250Cc 4-Stroke

19586*2
OEM PART NUMBERS:
• 109-19586 / 10919586
• APS19586

SPECIFICATIONS:
• Type: PMDD (Permanent Magnet Direct Drive)
• Voltage: 12V
• Rotation: Clockwise (CW)
• Tooth Count: 9
• Gear OD: 11.7mm / 0.461"
• Overall Length: 144.3mm
• Overall OD: 68mm
• Mounting: Two 7mm Unthreaded
• Weight: 3.3 lbs
• Condition: New

APPLICATION:
• SUNL ATV/UTV 200cc-250cc
• Chinese 4-Stroke 150cc-250cc Vertical Engine

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $133.26
Sale: $76.15
Save: 43%
Save: $57.11
Qty:
Free Shipping!

Description

SUNL ATV / UTV:
• SUNL ATV 250cc 4-Wheeler
• SUNL UTV 200cc / 250cc

ENGINE COMPATIBILITY:
• Chinese 4-Stroke Vertical Engine
• 150cc / 200cc / 250cc Displacement
• CG-Style Air-Cooled Single-Cylinder
• 9-Tooth Starter Drive Configuration

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 3.3 lbs.
  • W4.0000” x H4.0000” x L8.0000”
  • Free Shipping!
