OEM PART NUMBERS:
• Letrika (Iskra): 11.131.573 / 11-131-573 / 11 131 573 / 11131573
• Letrika (Iskra) Sales: IS 1158 / IS1158 / IS-1158
• Letrika (Iskra) Tech: AZF4146
• Mahle: MS 291 / MS291 / MS-291 / MS 368 / MS368 / MS-368 / 72735919
• Lucas: 26147 / 26189 / 26364 / LRS00230 / LRS01637
• Other Names: Mahle IS1158 Reduction-Gear Starter / Letrika PLGR Starter

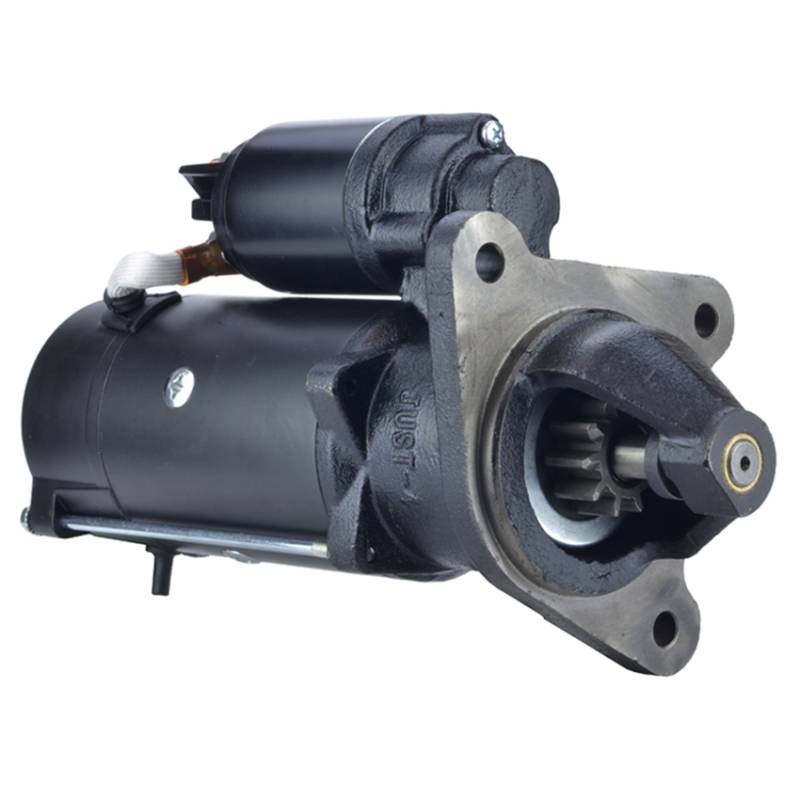

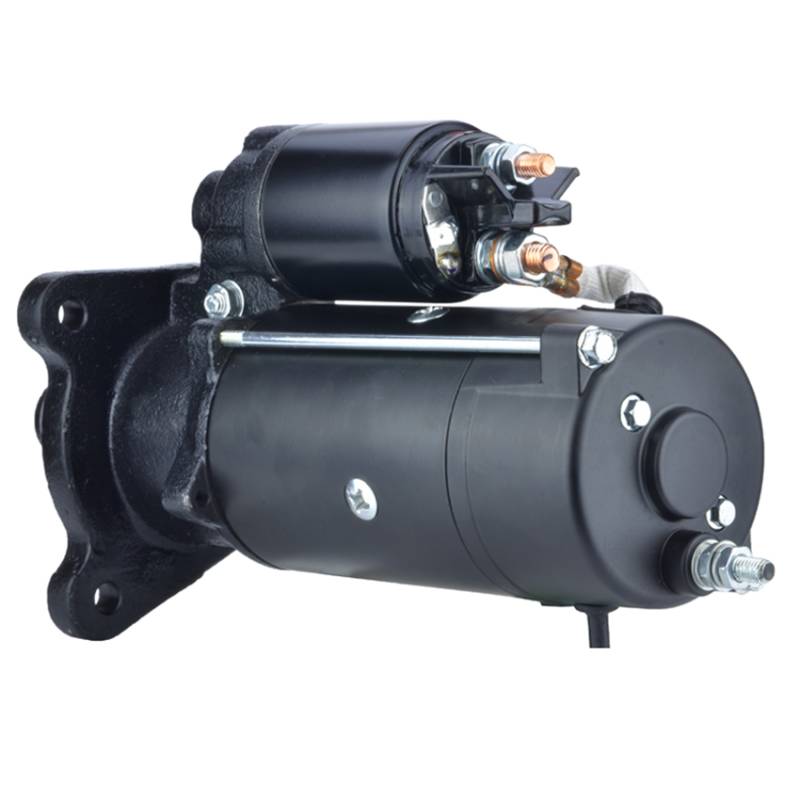

STARTER SPECIFICATIONS:
• Type: PLGR (Planetary Gear Reduction)
• Voltage: 12V
• Power Output: 4.2 kW
• Teeth on Drive: 10
• Rotation: Clockwise (CW) from pinion side
• Gear Outer Diameter: 1.547 in / 39.3 mm
• Overall Length: 9.921 in / 252 mm
• Registry OD (Nose Flange): 3.622 in / 92 mm
• Mounting Ears: 3 unthreaded holes, 11.1 mm diameter
• Battery Stud: M8 Threaded
• Ground Stud: M8 Threaded
• Motor Stud: M10 Threaded
• Solenoid Terminal: Spade S
• Weight: 24.57 lbs / 11.17 kg
• Condition: New Heavy-Duty Aftermarket Replacement
APPLICATION SUMMARY:
• Ford Agricultural Tractors (2000 / 4000 / 5600 / 6610 / 7610 / 8210 / TW Series) (1965-1995)
• Ford Backhoes 655A / 655E (1996-1997)
• Case / Case IH Tractors 1394 / 1410 / 1412 / 1494 / 1594 / 1690 / 1694 (1974-1992)
• JCB Excavators 805 / 806 / 806B / 807 / 807B with Perkins Engines (1973-1985)
• Barber Greene Pavers SA141 / SB131 / SB140 / SB30 (1976-1984)
• Ingersoll Rand Compressors 140SL / 175SL / 250SL / DR-Series (1976-1980)
• Dennis Bulkmaster / Dominant Medium-Heavy Trucks (1972-1979)
PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.
WARNING - This product may expose you to chemicals such as Lead, Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
