OEM PART NUMBERS:
• Honda Piston (0.25mm Over): 13102-HP5-600 / 13102HP5600
• Honda Piston (Standard): 13101-HP5-600 / 13101HP5600
• Honda Ring Set: 13010-HP5-600 / 13010HP5600
• Honda Wrist Pin: 13111-HP5-600 / 13111HP5600
• Honda Cylinder: 12100-HP7-A00 / 12100HP7A00
SPECIFICATIONS:
• Type: Piston Kit (0.25mm Oversize)
• Standard Bore: 86.5mm
• Oversize Bore: 86.75mm (0.25mm Over)
• Stroke: 71.5mm
• Displacement: 420cc
• Compression: 9.9:1
• Piston Type: Cast
• Engine: Single-Cylinder 4-Stroke OHV Liquid-Cooled
• Fuel System: PGM-FI (Electronic Fuel Injection)
• Horsepower: 26.2HP
• Weight: 2 lbs / Condition: New

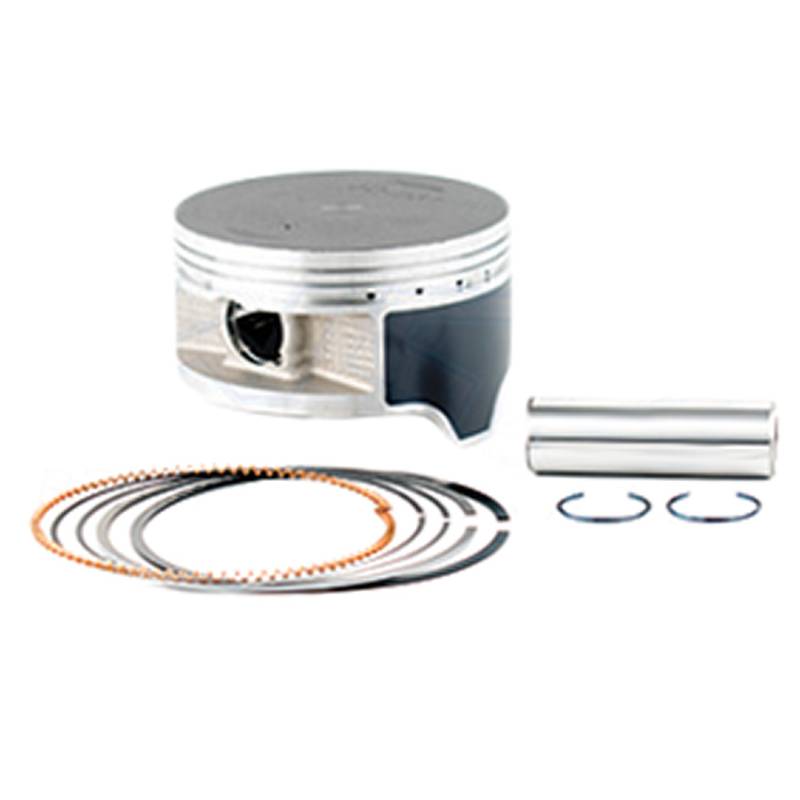

KIT CONTENTS (Single Cylinder):
• (1) Cast Piston — 0.25mm Oversize 86.75mm
• (1) Ring Set / (1) Wrist Pin / (2) Circlips
• Single cylinder engine — one kit completes rebuild
APPLICATIONS:
• Honda TRX420FM Rancher 4x4 Manual (2007-2024)
• Honda TRX420FE Rancher 4x4 ES (2007-2024)
• Honda TRX420TM Rancher 2x4 Manual (2007-2024)
• Honda TRX420TE Rancher 2x4 ES (2007-2024)
• Honda TRX420FA Rancher 4x4 DCT (2009-2024)
• Honda TRX420FPA Rancher AT w/ PS (2009-2013)
• Honda TRX420FPM Rancher 4x4 w/ PS (2009-2013)
