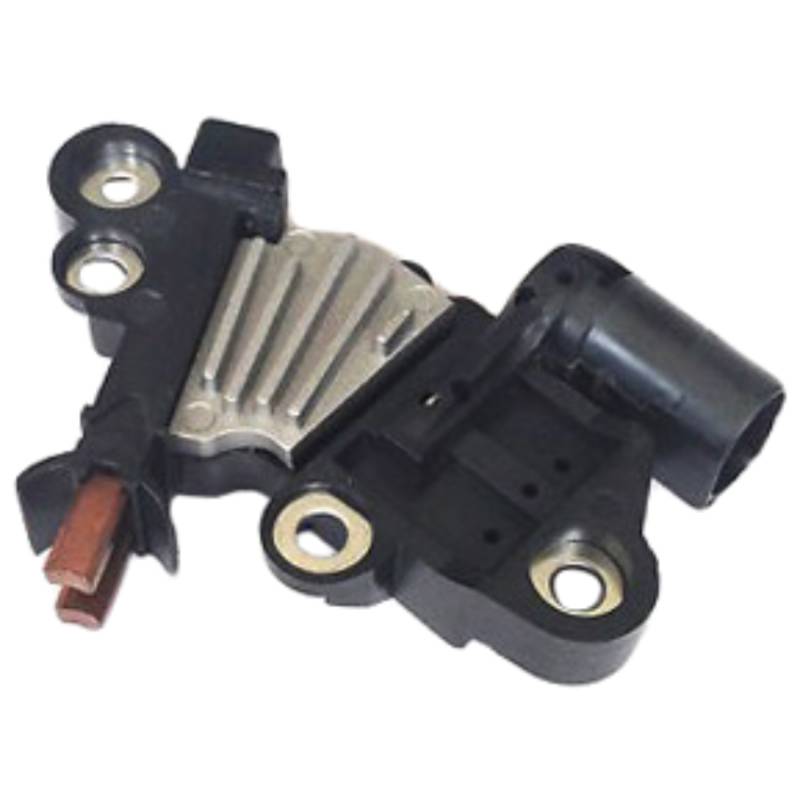

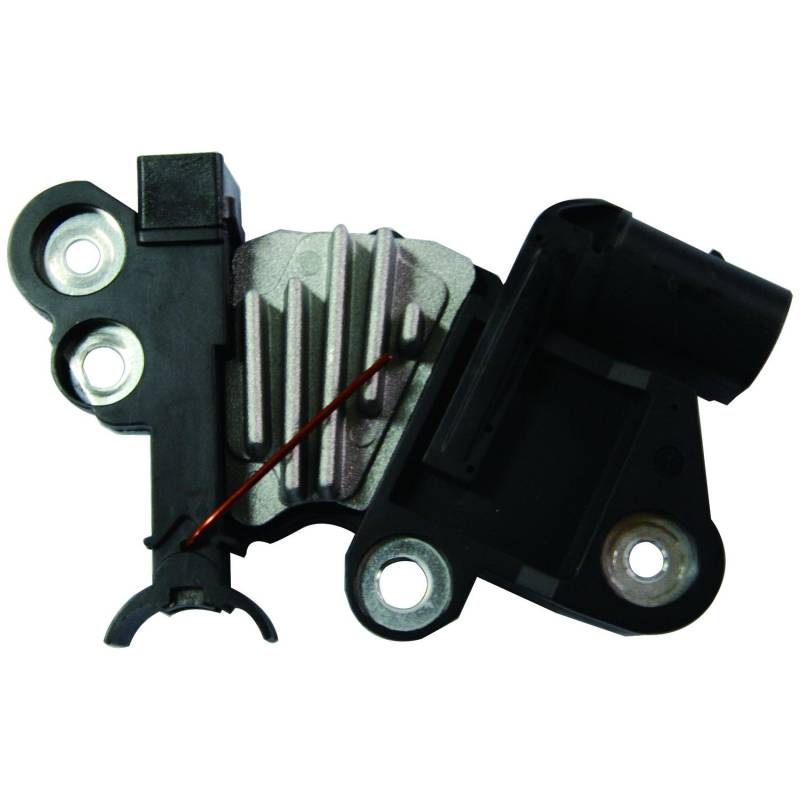

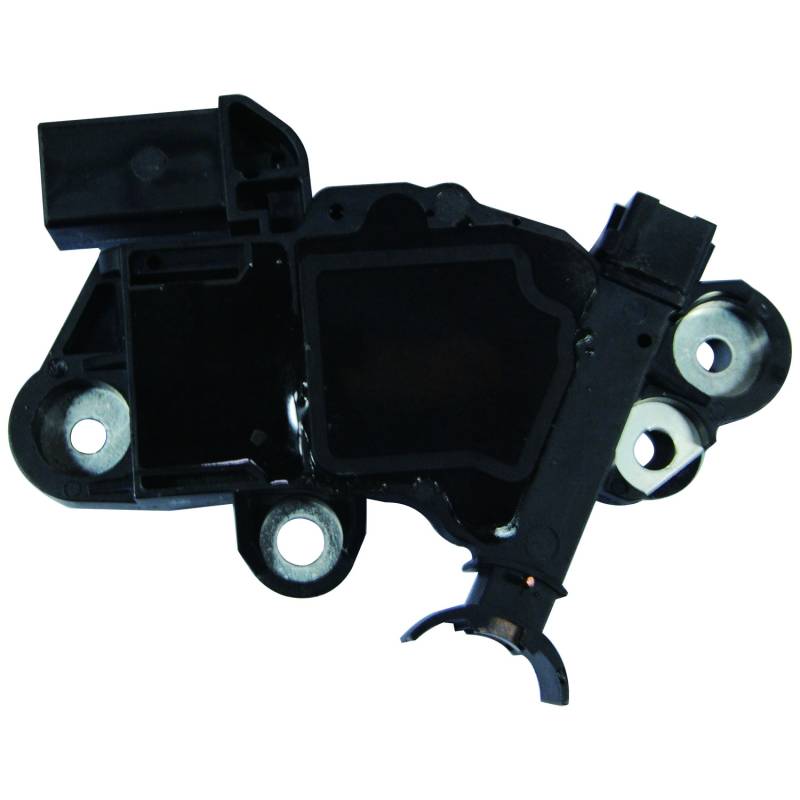

12V Regulator Compatible With 2007-2012 325I 523Li 525Li 530Li 2008-2013 E88 E82 Bosch F00m346089

(0) Reviews: Write first review
IB6024B3
OEM REGULATOR PART NUMBERS:
• BMW: 12-31-7-552-817 (12317552817)
• BMW: 12-31-7-561-924 (12317561924)
• BMW: 12-31-7-561-939 (12317561939)
• Bosch: F00M346013 (F-00M-346-013)
• Bosch: F00M346024 (F-00M-346-024)
• Bosch: F00M346033 (F-00M-346-033)
• Bosch: F00M346089 (F-00M-346-089)
• Bosch Superseded: 1986AE0045
• Hella: 8EL 738 212-381 (8EL738212381)
• Hella: 8EL 738 213-201 (8EL738213201)
• Steyr: 7551256
• Magneti Marelli: 063537151120

FITS ALTERNATOR UNIT NUMBERS:
• BMW: 12-31-7-542-351 (12317542351)
• BMW: 12-31-7-550-469 (12317550469)
• BMW: 12-31-7-550-968 (12317550968)
• BMW: 12-31-7-551-256 (12317551256)
• BMW: 12-31-7-555-926 (12317555926)
• BMW: 12-31-7-557-789 (12317557789)
• BMW: 12-31-7-558-219 (12317558219)
• BMW: 12-31-7-558-220 (12317558220)
• BMW: 12-31-7-560-985 (12317560985)
• BMW: 12-31-7-560-986 (12317560986)
• BMW: 12-31-7-582-699 (12317582699)
• Bosch: 0 121 715 012 (0121715012)
• Bosch: 0 121 715 016 (0121715016)
• Bosch: 0 121 715 017 (0121715017)
• Bosch: 0 121 715 018 (0121715018)
• Bosch: 0 121 715 112 (0121715112)
• Bosch: 0 121 715 116 (0121715116)
• Bosch: 0 121 715 117 (0121715117)
• Bosch: 0 121 715 118 (0121715118)
• Bosch Service Europe: 0 986 048 820 (0986048820)
• Bosch Service Europe: 0 986 048 830 (0986048830)
• Bosch Service Europe: 0 986 048 840 (0986048840)
• Bosch Reman: AL0847X, AL0850X

SPECIFICATIONS:
• Voltage: 12V
• Circuit Type: B-Circuit (High Side Drive)
• Activation: Ignition (ECU Controlled)
• Voltage Set Point: 10.7V - 16.0V
• Field Rating: 5 Amps
• Frequency: 122 Hz at 4000 RPM
• Operating Temperature: -40°C to 125°C
• Saturation Voltage: 0.60V typical, 1.00V max at 5A 14V

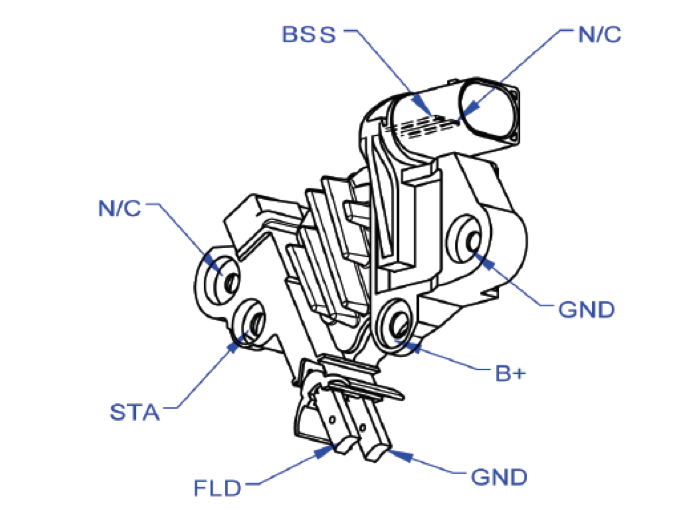

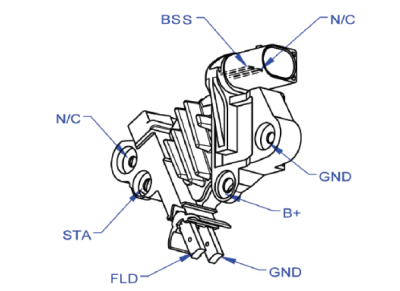

• Terminal ID: BSS (COM), N/C, GND, B+, STA, FLD
• Brushes: Included
• Rectifier: Not Included
• Tolerance Ring: Not Included
• Weight: 1 lb

FITS BOSCH 715 SERIES 180 AMP ALTERNATORS

PRODUCT NOTICE:
As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

WARNING - This product may expose you to chemicals such as Carbon Black, Silica, Crystalline which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Was: $62.98
Sale: $35.99
Save: 43%
Save: $26.99
Qty:
Free Shipping!

Description

US MARKET APPLICATIONS:

128i:
• 128i L6 3.0L 2996cc - 2008, 2009, 2010, 2011, 2012, 2013

135i:
• 135i L6 3.0L 2979cc Turbo - 2008, 2009, 2010

323i:
• 323i L6 2.5L 2497cc - 2007, 2008, 2009

328i:
• 328i L6 3.0L 2996cc - 2007, 2008, 2009, 2010, 2011, 2012, 2013
• 328i xDrive L6 3.0L 2996cc - 2009, 2010, 2011, 2012, 2013
• 328xi L6 3.0L 2996cc - 2007, 2008

330i / 330xi:
• 330i L6 3.0L 2996cc N52 - 2006
• 330xi L6 3.0L 2996cc N52 - 2006

335i / 335d / 335is:
• 335i L6 3.0L 2979cc Turbo - 2007, 2008, 2009, 2010
• 335i xDrive L6 3.0L 2979cc - 2009, 2010
• 335xi L6 3.0L 2979cc - 2007, 2008
• 335d L6 3.0L 2993cc Diesel - 2009, 2010
• 335is L6 3.0L 2979cc - 2011, 2012, 2013

528i / 535i:
• 528i L6 3.0L 2996cc - 2008, 2009, 2010
• 528i xDrive L6 3.0L 2996cc - 2009, 2010
• 528xi L6 3.0L 2996cc - 2008
• 535i L6 3.0L 2979cc - 2008, 2009, 2010
• 535i xDrive L6 3.0L 2979cc - 2009, 2010
• 535xi L6 3.0L 2979cc - 2008

X3:
• X3 L6 3.0L 2996cc - 2007, 2008, 2009, 2010

X5:
• X5 L6 3.0L 2996cc - 2007, 2008
• X5 L6 3.0L 2996cc - 2009, 2010

EUROPEAN MARKET APPLICATIONS:

1 SERIES:
• 1 Series E81 116i, 118i, 120i, 130i - 2005, 2006, 2007, 2008, 2009, 2010, 2011
• 1 Series E82 Coupe 120i, 125i, 1M - 2007, 2008, 2009, 2010, 2011, 2012, 2013
• 1 Series E87 116i, 118i, 120i, 130i - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012
• 1 Series E88 Convertible 118i, 120i, 125i, 128i - 2008, 2009, 2010, 2011, 2012, 2013

3 SERIES:
• 3 Series E90 Sedan 323i, 325i, 330i - 2007, 2008, 2009, 2010, 2011
• 3 Series E91 Touring 323i, 325i, 330i - 2007, 2008, 2009, 2010, 2011, 2012
• 3 Series E92 Coupe 325i, 330i - 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
• 3 Series E93 Convertible 325i, 330i - 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

5 SERIES:
• 5 Series E60 Sedan 520i, 523i, 525i, 530i - 2005, 2006, 2007, 2008, 2009, 2010
• 5 Series E61 Touring 520i, 523i, 525i, 530i - 2007, 2008, 2009, 2010

6 SERIES:
• 6 Series E63 Coupe 630i - 2007, 2008, 2009, 2010
• 6 Series E64 Convertible 630i - 2007, 2008, 2009, 2010

X1 / X3:
• X1 E84 xDrive 25i, xDrive 28i - 2009, 2010, 2011, 2012, 2013, 2014, 2015
• X3 E83 2.5si, 3.0si, xDrive 25i, xDrive 30i - 2006, 2007, 2008, 2009, 2010, 2011

CHINA MARKET:
• 325i 2.5L N52B25BF - 2008, 2009, 2010, 2011, 2012
• 523Li 2.5L N52B25 - 2008, 2009, 2010, 2011
• 525Li 2.5L N52B25BF - 2007, 2008, 2009, 2010
• 530Li 3.0L N52B30BF - 2008, 2009, 2010

ENGINES COVERED:
• N43 B16 A (1.6L), N45 B16 A (1.6L)
• N43 B20 A (2.0L), N46 B20 B/C (2.0L)
• N51 B30 A (3.0L), N52 B25 A (2.5L), N52 B30 A (3.0L)
• N53 B25 A (2.5L), N53 B30 A (3.0L), N54 B30 A (3.0L Turbo)
• N52B25AF, N52B25BE, N52B25BF, N52B30BF

ALTERNATOR COMPATIBILITY:
• Bosch 715 Series 180 Amp Alternators
• Bosch: 0121715012, 0121715016, 0121715017, 0121715018
• Bosch: 0121715112, 0121715116, 0121715117, 0121715118
